Description

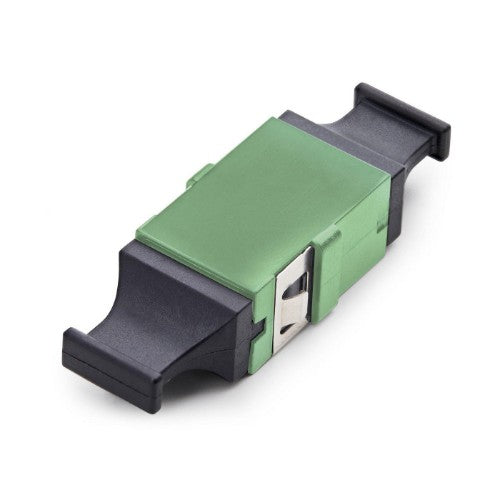

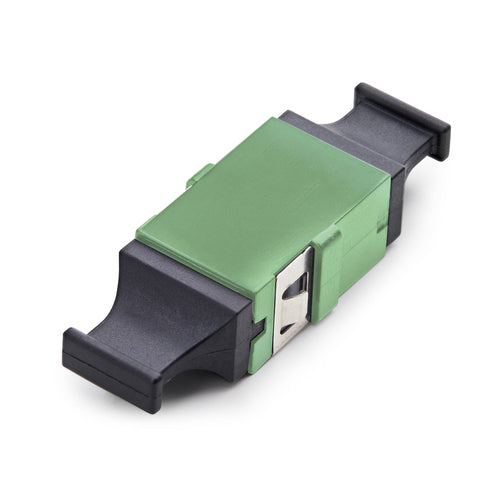

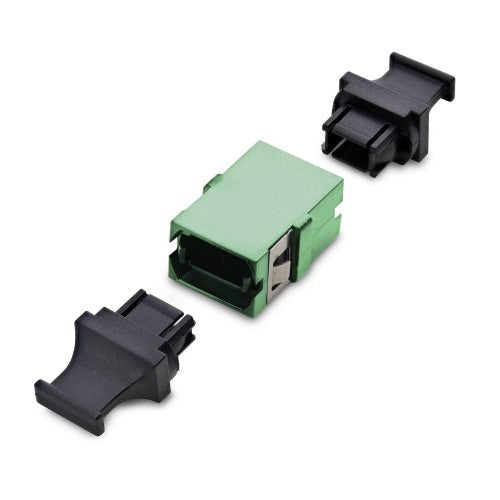

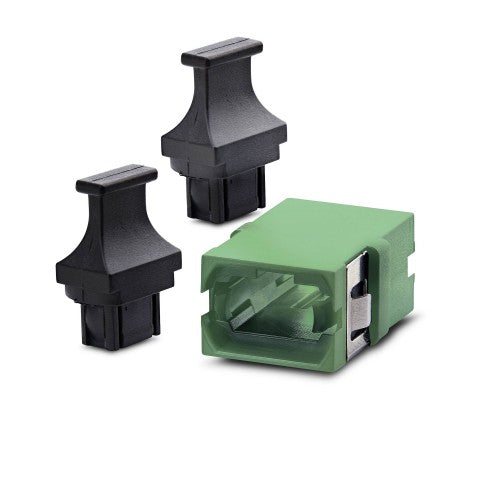

StarTech MPO/MTP Coupler, Single Mode/Multimode Fiber Adapter, Key Up-Key Down, Fiber Optic MPO/MTP Coupler - Green

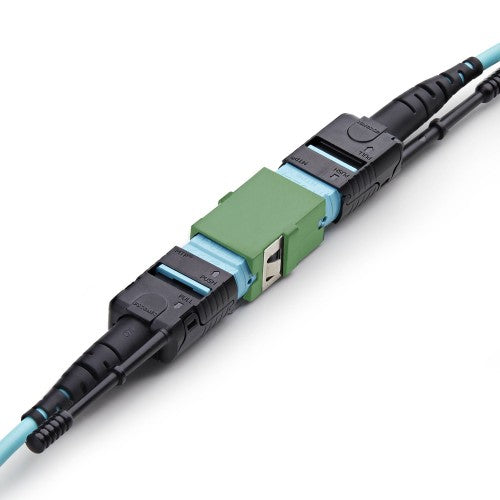

Extend a multi-fiber connection by connecting two MPO/MTP trunk cables with this MPO/MTP to MPO/MTP Coupler. The female-to-female fiber coupler supports both Single Mode and Multimode MPO/MTP connections, maintaining optimal signal integrity while achieving low insertion loss that exceeds industry standards.
Quick, Toolless Setup
The MPO/MTP Fiber Coupler is optimized for OS2/OS1 and OM3/OM4 fiber links. The coupler features toolless setup to simplify installation into fiber adapter panels and enclosures. Ideal for fast deployment in data centers, enterprise networks, and telecom applications.
Ideal for Fixed Installations
The MPO Coupler features a durable ABS housing and precision alignment structure for accurate multi-fiber mating, minimizing signal loss for long-lasting reliability and performance. The side metal mounting tabs enable fixed, secure positioning in high-density fiber installations.
Key Features
- Extend MPO/MTP Connections: Seamlessly join two Single Mode or Multimode MPO/MTP fiber cables or extend multi-fiber runs in fiber adapter panels, wall enclosures or distribution frames; Ideal for scalable data center and telecom builds
- Reliable, High-Speed Performance: Engineered for 1/10/40/100Gbps transmission with low 0.2dB insertion loss and precision mating, this coupler ensures signal integrity and exceeds TIA-568.3-D standards
- Quick Installation: Plug-and-play design with metal mounting tabs enables fixed, secure positioning in high-density fiber installations with no tools required, no extra steps
- Optimized for Multi-Fiber Links: Supports OS2 and OM3/OM4 MPO/MTP fiber links for broad compatibility and quick deployment in structured cabling installations; Extend multi-fiber MPO/MTP trunk cables with APC or UPC polished ends
- The IT Pro's Choice: Our network jacks, connectors, and couplers are tested for peak performance in structured cabling environments; Designed for reliability with consistent fit and finish; Backed by free lifetime 24/5 multi-lingual technical assistance
Description
Connect two MPO/MTP fiber cables or establish multi-fiber connectivity on a fiber distribution panelExtend a multi-fiber connection by connecting two MPO/MTP trunk cables with this MPO/MTP to MPO/MTP Coupler. The female-to-female fiber coupler supports both Single Mode and Multimode MPO/MTP connections, maintaining optimal signal integrity while achieving low insertion loss that exceeds industry standards.
Quick, Toolless Setup
The MPO/MTP Fiber Coupler is optimized for OS2/OS1 and OM3/OM4 fiber links. The coupler features toolless setup to simplify installation into fiber adapter panels and enclosures. Ideal for fast deployment in data centers, enterprise networks, and telecom applications.
Ideal for Fixed Installations
The MPO Coupler features a durable ABS housing and precision alignment structure for accurate multi-fiber mating, minimizing signal loss for long-lasting reliability and performance. The side metal mounting tabs enable fixed, secure positioning in high-density fiber installations.
Specifications
| Features | |
|---|---|
| Category | OS1/OS2 |
| Number of connectors | 2 |
| Connector type | MPO/MTP |
| Fiber mode structure | Single-mode |
| Product colour | Green |
| Certificates | |
| Compliance certificates | Trade Agreements Act (TAA), CE |
| Weight & dimensions | |
| Width | 14.7 mm |
| Weight | 4 g |
| Height | 9.4 mm |
| Depth | 44.5 mm |
| Packaging data | |
| Quantity per pack | 1 pc(s) |
| Package width | 120 mm |
| Package depth | 90 mm |
| Package height | 10 mm |
| Package weight | 5 g |
| Technical details | |
| Category | OS1/OS2 |
| Number of connectors | 2 |
| Connector type | MPO/MTP |
| Fiber mode structure | Single-mode |
| Product colour | Green |
| Compliance certificates | Trade Agreements Act (TAA), CE |
| Packaging content | |
| Quantity per pack | 1 pc(s) |
| Logistics data | |
| Master (outer) case width | 430 mm |
| Master (outer) case length | 335 mm |
| Master (outer) case height | 400 mm |
| Products per master (outer) case | 360 pc(s) |
