920W, 1U, 4A, 50/60Hz, PFC
Key Features
- Flexible Redundancy Control
- 80 Plus Platinum
- Supermicro Certified
Description

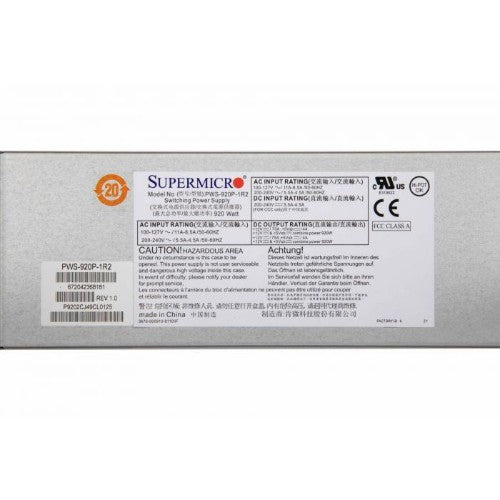

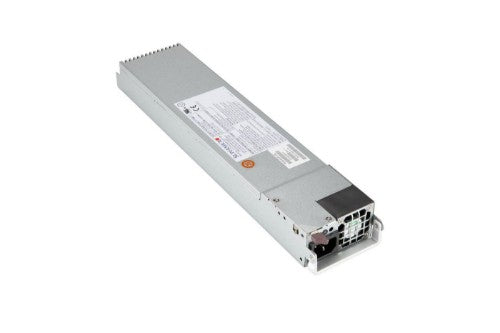

The Supermicro PWS-920P-1R2 is an 80 Plus Platinum level redundant power supply capable of supplying 920W output power at 94% efficiency. Enjoy the simplicity of active power factor correction (PFC) and automatically correct AC input for a full range of voltages. Features a card edge connector for connection with the backplane of compatible Supermicro 1U systems. This power supply is designed to not only provide you reliable power to your Supermicro server but also protects it from over voltage, over current and short circuiting via protective circuitry embedded into the unit. Rest easy knowing your hardware will be up and running with a mean-time between failure (MTBF) of greater than 200,000 hours and an LED indicator to keep you informed on normal/abnormal conditions for your PSU. This power supply is redundant to safe-guard your system from power failure and allows for hot-swap replacement to eliminate system downtime. All materials contained comply with RoHS requirements and is certified by Supermicro.
Specifications
| Design |
|---|
| 80 PLUS certification |
80 PLUS Platinum |
| Power |
|---|
| Total power |
920 W |
| Maximum input current (@220V) |
5.5 A |
| AC input voltage |
100 - 240 V |
| AC input frequency |
50 - 60 Hz |
| Power Factor Correction (PFC) type |
Active |
| Maximum input current (@110V) |
11 A |
| Max output current (+12V) |
75 A |
| Max output current (+5V) |
4 A |
| Efficiency |
94% |
| Performance |
|---|
| Power supply unit (PSU) form factor |
1U |
| 80 PLUS certification |
80 PLUS Platinum |
| Purpose |
Server |
| Harmonized System (HS) code |
84733020 |
| Certificates |
|---|
| Compliance certificates |
REACH, RoHS |
| 80 PLUS certification |
80 PLUS Platinum |
| Weight & dimensions |
|---|
| Width |
79 mm |
| Depth |
40 mm |
| Height |
336 mm |
| Technical details |
|---|
| Sustainability compliance |
Yes |
| Compliance certificates |
REACH, RoHS |
| Logistics data |
|---|
| Harmonized System (HS) code |
84733020 |
| Other features |
|---|
| Harmonized System (HS) code |
84733020 |
