Description
1x8 HDMI, CAT6/6a/7, IR, HDMI 1.3, 1920 x 1080px, HDCP 1.2, 24W, 2.236 kg
- Compatible with CAT6/6a/7 network cables
- The highest resolution supported is up to 1080p@60Hz
- Extend HDMI signal up to 50m/164ft over CAT6 cable
- Support IR pass back for remote control source device easily
- Uncompressed and zero latency
- Plug and play
Description

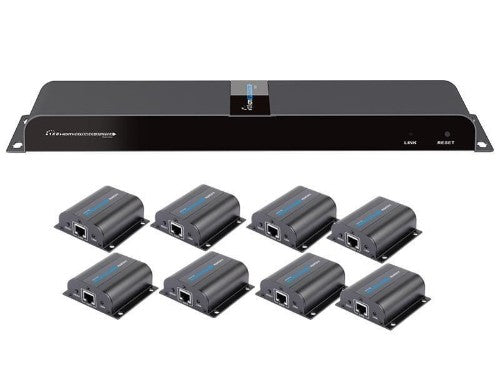

- Distribute 1 HDMI source to 8 HD displays over network cable simultaneously- Compatible with CAT6/6a/7 network cables
- The highest resolution supported is up to 1080p@60Hz
- Extend HDMI signal up to 50m/164ft over CAT6 cable
- Support IR pass back for remote control source device easily
- Uncompressed and zero latency
- Plug and play
Specifications
| Features | |
|---|---|
| Material | Aluminium |
| HDCP | Yes |
| Colour depth | 36 bit |
| Maximum refresh rate | 60 Hz |
| Audio formats supported | PCM |
| Type | AV transmitter & receiver |
| Maximum resolution | 1920 x 1080 pixels |
| Cable types supported | Cat6, Cat6a, Cat7 |
| Maximum transfer distance | 40 m |
| Supported video modes | 480i, 480p, 576i, 576p, 720p, 1080i, 1080p |
| LED indicators | Yes |
| Technical details | |
| Material | Aluminium |
| HDCP | Yes |
| Colour depth | 36 bit |
| Maximum refresh rate | 60 Hz |
| Audio formats supported | PCM |
| Type | AV transmitter & receiver |
| Maximum resolution | 1920 x 1080 pixels |
| Cable types supported | Cat6, Cat6a, Cat7 |
| Maximum transfer distance | 40 m |
| Supported video modes | 480i, 480p, 576i, 576p, 720p, 1080i, 1080p |
| Quantity | 1 |
| Ports & interfaces | |
| Remote (IR) output | 1 |
| Remote (IR) input | 8 |
| Number of HDMI outputs | 9 |
| HDMI version | 1.3 |
| DC-in jack | Yes |
| Indication | |
| LED indicators | Yes |
