Description
Wi-Fi 6, 1x RJ-45, VLAN, DNS over HTTPS, RutOS
Description

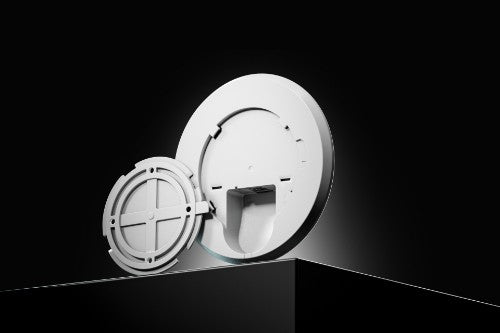

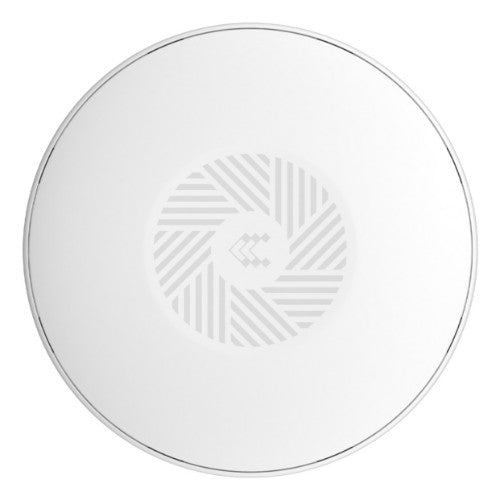

The TAP400 is a high-performance Wi-Fi 6 access point designed for SMBs that need fast, efficient wireless coverage and simple centralized management. Experience ultra-fast throughput with the dedicated 2.5 GbE uplink and multi-user efficiency of Wi-Fi 6. The device ensures network continuity and seamless expansion with Fast Roaming and Mesh. All network configuration, monitoring, and troubleshooting can be handled remotely via Teltonika RMS, allowing you to seamlessly reach and control other devices on the network. Upgrade your business to high-performance connectivity that covers every corner.Specifications
| Data transmission | |
|---|---|
| Ethernet LAN data rates | 100,1000,2500 Mbit/s |
| Maximum data transfer rate | 3000 Mbit/s |
| Performance | |
| 2.4 GHz | Yes |
| 5 GHz | Yes |
| Auto MDI/MDI-X | Yes |
| Reset button | Yes |
| Web-based management | Yes |
| VLAN support | Yes |
| Networking standards | IEEE 802.11r, IEEE 802.11w, IEEE 802.11s, IEEE 802.11v, IEEE 802.11k, IEEE 802.3, IEEE 802.3u, IEEE 802.3az, IEEE 802.1x, IEEE 802.3af |
| Ethernet LAN data rates | 100,1000,2500 Mbit/s |
| Maximum data transfer rate | 3000 Mbit/s |
| MIMO type | Multi User MIMO |
| MIMO | Yes |
| Operating system installed | RutOS |
| Internal memory type | DDR3 |
| Internal memory | 512 MB |
| Flash memory | 16 MB |
| Built-in processor | Yes |
| Processor frequency | 1300 MHz |
| Network | |
| Networking standards | IEEE 802.11r, IEEE 802.11w, IEEE 802.11s, IEEE 802.11v, IEEE 802.11k, IEEE 802.3, IEEE 802.3u, IEEE 802.3az, IEEE 802.1x, IEEE 802.3af |
| Management features | |
| VLAN support | Yes |
| Web-based management | Yes |
| Memory | |
| Internal memory type | DDR3 |
| Internal memory | 512 MB |
| Flash memory | 16 MB |
| Features | |
| 6 GHz | No |
| 2.4 GHz | Yes |
| 5 GHz | Yes |
| Auto MDI/MDI-X | Yes |
| VLAN support | Yes |
| Networking standards | IEEE 802.11r, IEEE 802.11w, IEEE 802.11s, IEEE 802.11v, IEEE 802.11k, IEEE 802.3, IEEE 802.3u, IEEE 802.3az, IEEE 802.1x, IEEE 802.3af |
| Ethernet LAN data rates | 100,1000,2500 Mbit/s |
| Maximum data transfer rate | 3000 Mbit/s |
| Fast roaming | Yes |
| MIMO type | Multi User MIMO |
| MIMO | Yes |
| Maximum data transfer rate (2.4 GHz) | 576 Mbit/s |
| Maximum data transfer rate (5 GHz) | 2402 Mbit/s |
| Virtual LAN features | Tagged VLAN |
| Number of simultaneously connected devices (max) | 512 |
| Wireless meshing | Yes |
| Operating system installed | RutOS |
| Internal memory type | DDR3 |
| Internal memory | 512 MB |
| Flash memory | 16 MB |
| Built-in processor | Yes |
| Processor frequency | 1300 MHz |
| Security | |
| Security algorithms | PEAP, WPA2-PSK, WPA-EAP, WPA-PSK, WPA3-SAE, WPA3-EAP, OWE, AES-CCMP, TKIP, EAP-TLS |
| MAC address filtering | Yes |
| Whitelist | Yes |
| Blacklist | Yes |
| Protocols | |
| Supported network protocols | TCP, UDP, ICMP, GRE, ESP, RIP, OSPF, BGP, IPsec, IPv4, IPv6, ARP, PPP, HTTP, TTPS |
| Ports & interfaces | |
| USB 2.0 ports quantity | 0 |
| Ethernet LAN (RJ-45) ports | 1 |
| DC-in jack | Yes |
| Power | |
| Power consumption (max) | 11 W |
| Power over Ethernet (PoE) | Yes |
| DC voltage range | 44 - 57 V |
| Design | |
| International Protection (IP) code | IP30 |
| Housing material | Plastic, Aluminium |
| Placement | Ceiling |
| Product colour | White |
| Reset button | Yes |
| LED indicators | Power |
| Antenna | |
| Antenna type | Internal |
| Antennas quantity | 3 |
| Antenna gain level (max) | 4.9 dBi |
| Antenna direction type | Omni-directional |
| Technical details | |
| Reset button | Yes |
| Compliance certificates | CE, UKCA, CB, EAC, RCM, Federal Communications Commission (FCC), Industry Canada (IC), WEEE |
| Processor | |
| Built-in processor | Yes |
| Certificates | |
| Compliance certificates | CE, UKCA, CB, EAC, RCM, Federal Communications Commission (FCC), Industry Canada (IC), WEEE |
| Indication | |
| LED indicators | Power |
| Software | |
| Fast roaming | Yes |
| Weight & dimensions | |
| Width | 158 mm |
| Depth | 31.4 mm |
| Weight | 285 g |
| Height | 158 mm |
| Packaging content | |
| Quantity per pack | 1 pc(s) |
| Operational conditions | |
| Operating relative humidity (H-H) | 10 - 90% |
| Operating temperature (T-T) | 0 - 50 °C |
| Other features | |
| Internal memory type | DDR3 |
| Logistics data | |
| Quantity per pack | 1 pc(s) |
