Description
2 x SFP, 802.3i, 802.3u, 802.3ab, 802.3x, 802.3z, 128MB DDR3, 16MB flash, WitchOS, 20 Gbps

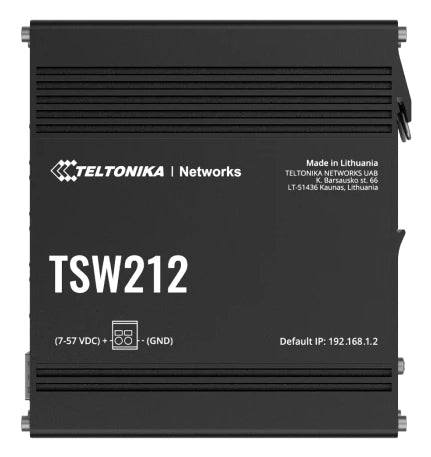

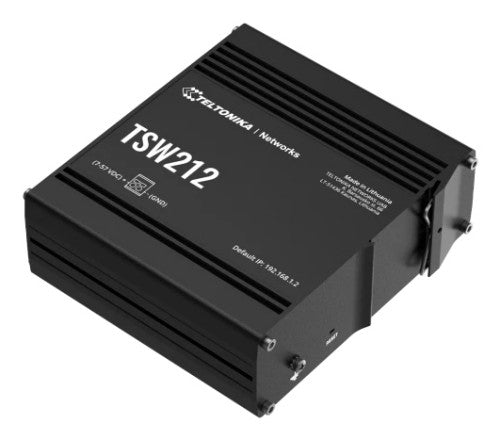

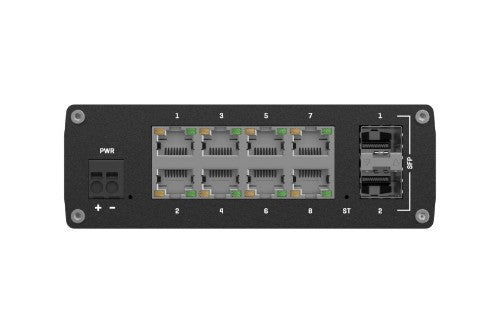

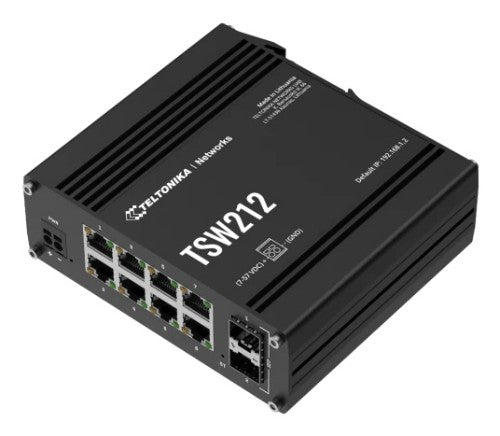

TSW212 is an L2 managed Ethernet switch with additional L3 features, like DHCPv6 client support and static IPv6 routing. This switch supports protocols, including EtherNet/IP, PROFINET, and MRP, and has 8 Gigabit Ethernet ports and 2 SFP ports to ensure robust long-range fibre optic communication.
Description
MANAGED ETHERNET SWITCHTSW212 is an L2 managed Ethernet switch with additional L3 features, like DHCPv6 client support and static IPv6 routing. This switch supports protocols, including EtherNet/IP, PROFINET, and MRP, and has 8 Gigabit Ethernet ports and 2 SFP ports to ensure robust long-range fibre optic communication.
Specifications
| Management features | |
|---|---|
| Reset button | Yes |
| Switch type | Managed |
| Quality of Service (QoS) support | Yes |
| Switch layer | L2 |
| Virtual LAN features | |
| VLAN support | Yes |
| Technical details | |
| Product colour | Black |
| Ports & interfaces | |
| SFP module slots quantity | 2 |
| Basic switching RJ-45 Ethernet ports quantity | 8 |
| Basic switching RJ-45 Ethernet ports type | Gigabit Ethernet (10/100/1000) |
| Network | |
| Networking standards | IEEE 802.1Q, IEEE 802.1p, IEEE 802.3az |
| VLAN support | Yes |
| Port mirroring | Yes |
| IP routing | Yes |
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
| Auto MDI/MDI-X | Yes |
| 10G support | No |
| Data transmission | |
| Jumbo frames | 10000 |
| MAC address table | 8000 entries |
| Switching capacity | 20 Gbit/s |
| Jumbo frames support | Yes |
| Security | |
| Security algorithms | SNMPv2, SNMPv3 |
| Queue scheduling algorithms | WFQ, WFQ+SP, Weighted Round Robin (WRR) |
| DHCP features | DHCP client, DHCP server |
| Memory | |
| Memory type | DDR3-SDRAM |
| Internal memory | 128 MB |
| Flash memory | 16 MB |
| Design | |
| International Protection (IP) code | IP30 |
| Reset button | Yes |
| Product colour | Black |
| LED indicators | LAN, Power |
| Performance | |
| Memory type | DDR3-SDRAM |
| Internal memory | 128 MB |
| Flash memory | 16 MB |
| Indication | |
| LED indicators | LAN, Power |
| Power | |
| Power consumption (max) | 6 W |
| Power supply included | No |
| Power source | DC |
| Power over Ethernet (PoE) | |
| Power over Ethernet (PoE) | No |
| Operational conditions | |
| Operating temperature (T-T) | -40 - 75 °C |
| Operating relative humidity (H-H) | 10 - 90% |
| Weight & dimensions | |
| Width | 132 mm |
| Depth | 122.2 mm |
| Height | 44.2 mm |
| Weight | 615 g |
| Other features | |
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
