Description
1/2.8" Progressive Scan CMOS, 2304 × 1296 px, 30 fps, 802.11b/g/n, 2.4 GHz Wi-Fi, 123.8 × 123 × 90 mm
Outdoor Pan/Tilt Security Wi-Fi Camera
360° All-Round Protection
Provides 360° horizontal & 130° vertical viewing range, enabling you to focus on more vital areas and eliminate blind spots. Assign points for the camera to patrol for dynamic monitoring.
Advanced Person Detection for What Matters
Smart AI identifies a person accurately, reducing false alarm and sending real-time notifications through the Tapo app.
Build to Withstand Water & Dust
Tapo C510W is protected against jets of water and dust with IP65 weatherproof rating. It works well in rain, snow, dust, and heat.
Customizable Sound and Light Alarm
Craft your own audio alarm and tailor the intensity of the dual spotlights to fit your needs. Activate the integrated siren along with the spotlight alarm to deter unwelcome intruders effectively.

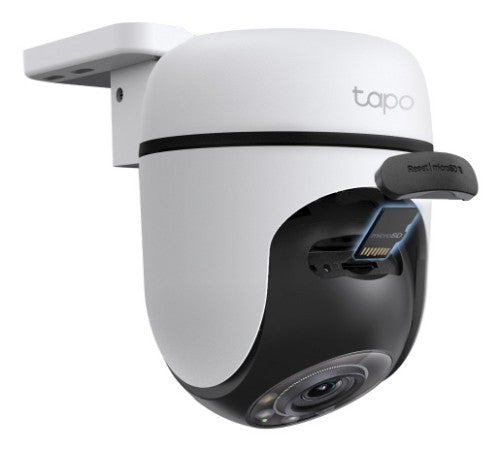

Secure Local & Cloud Storage
Save all your important moments to a microSD card1 (up to 512 GB) or subscribe to Tapo Care for cloud service after a free trial.
Install Where You Value Most
Tapo C510W supports multiple installation options. You can install the camera on the wall, eave, or pole. Monitor the area where you care the most.
Key Features
- 360° All-Round Protection: Provides 360° horizontal & 130° vertical viewing range, eliminating blind spots
- Person Detection: Smart AI identifies a person accurately, sending instant notifications through the Tapo app
- 2K Resolution: Sharper visuals in 2K resolution surpass standard 1080p
- Color Night Vision: Capture vibrant color night vision up to 30 meters away
- IP65 Weatherproof: The camera is protected against jets of water and dust, ideal for outdoors
- Sound and Light Alarm: Activate the integrated siren along with the spotlight alarm to deter unwelcomed intruders
- Local and Cloud Storage: Save all your important moments to a microSD card2 (up to 512GB) or subscribe to Tapo Care3 for cloud service
Description
All-Round Protection with Vivid ColorsOutdoor Pan/Tilt Security Wi-Fi Camera
360° All-Round Protection
Provides 360° horizontal & 130° vertical viewing range, enabling you to focus on more vital areas and eliminate blind spots. Assign points for the camera to patrol for dynamic monitoring.
Advanced Person Detection for What Matters
Smart AI identifies a person accurately, reducing false alarm and sending real-time notifications through the Tapo app.
Build to Withstand Water & Dust
Tapo C510W is protected against jets of water and dust with IP65 weatherproof rating. It works well in rain, snow, dust, and heat.
Customizable Sound and Light Alarm
Craft your own audio alarm and tailor the intensity of the dual spotlights to fit your needs. Activate the integrated siren along with the spotlight alarm to deter unwelcome intruders effectively.
Secure Local & Cloud Storage
Save all your important moments to a microSD card1 (up to 512 GB) or subscribe to Tapo Care for cloud service after a free trial.
Install Where You Value Most
Tapo C510W supports multiple installation options. You can install the camera on the wall, eave, or pole. Monitor the area where you care the most.
Specifications
| Performance | |
|---|---|
| Type | IP security camera |
| Connectivity technology | Wireless |
| Placement supported | Indoor & outdoor |
| Wide Dynamic Range (WDR) | Yes |
| Day/night mode | Yes |
| Certification | CE, FCC, RoHS, RCM |
| Virtual assistant | Amazon Alexa & Google Assistant |
| Built-in light | Yes |
| Design | |
| Country of origin | China |
| Form factor | Turret |
| Product colour | White, Black |
| Mounting type | Ceiling |
| LED indicators | Yes |
| International Protection (IP) code | IP65 |
| Camera | |
| Field of view (FOV) angle | 97.23° |
| Tilt angle range | 0 - 90° |
| Pan range | 0 - 340° |
| Image sensor | |
| Sensor type | CMOS |
| Optical sensor size | 25.4 / 2.8 mm (1 / 2.8") |
| Number of sensors | 1 |
| Lens system | |
| Number of lenses | 1 |
| Maximum aperture number | 2 |
| Fixed focal length | 3.9 mm |
| Night vision | |
| Night vision | Yes |
| LED type | IR |
| Infra-red wavelength | 850 nm |
| Colour night vision distance | 29.9 m |
| Video | |
| Noise reduction | Yes |
| Noise reduction technology | 3D noise reduction |
| Maximum resolution | 2304 x 1296 pixels |
| Video formats supported | H.264 |
| Supported graphics resolutions | 2304 x 1296 |
| Frame rate | 30 fps |
| Total megapixels | 3 MP |
| Audio | |
| Built-in speaker(s) | Yes |
| Built-in microphone | Yes |
| Network | |
| Bluetooth | No |
| Networking standards | IEEE 802.11b, IEEE 802.11g, IEEE 802.11n |
| Ethernet LAN | No |
| Wi-Fi | Yes |
| Wi-Fi standards | 802.11b, 802.11g, Wi-Fi 4 (802.11n) |
| Supported network protocols | TCP/IP, ICMP, DNS, HTTPS, TCP, UDP |
| Storage | |
| Maximum memory card size | 512 GB |
| Card reader integrated | Yes |
| Built-in HDD | No |
| Compatible memory cards | MicroSD (TransFlash) |
| Ports & interfaces | |
| DC-in jack | Yes |
| Connectivity technology | Wireless |
| Security | |
| Security algorithms | 128-bit AES, WPA-PSK, WPA2-PSK |
| Management features | |
| Reset button | Yes |
| Cloud-managed | Yes |
| Power | |
| Power source type | AC |
| AC input voltage | 100 - 240 V |
| AC input frequency | 50 - 60 Hz |
| DC-in jack | Yes |
| DC output voltage | 9 |
| DC output current | 0.85 A |
| Certificates | |
| Certification | CE, FCC, RoHS, RCM |
| Operational conditions | |
| Operating temperature (T-T) | -30 - 60 °C |
| Storage temperature (T-T) | -40 - 60 °C |
| Operating relative humidity (H-H) | 10 - 90% |
| Storage relative humidity (H-H) | 5 - 90% |
| Weight & dimensions | |
| Width | 90 mm |
| Depth | 138 mm |
| Height | 163.6 mm |
| Weight | 350 g |
| Package width | 145 mm |
| Package height | 210 mm |
| Package depth | 160 mm |
| Package weight | 720 g |
| Packaging data | |
| Package width | 145 mm |
| Package height | 210 mm |
| Package depth | 160 mm |
| Package weight | 720 g |
| Packaging content | |
| Number of cameras | 1 |
| Screws included | Yes |
| Mounting kit | Yes |
| Mounting brackets included | Yes |
| Manual | Yes |
| Logistics data | |
| Customs product code (TARIC) | 8525890000 |
