Description
8 10/100/1000Mbps RJ45 Ports, AUTO Negotiation/AUTO MDI/MDIX, IEEE 802.3i/u/ab/af/x, IEEE 802.1q/p, 158 x 101 x 25 mm

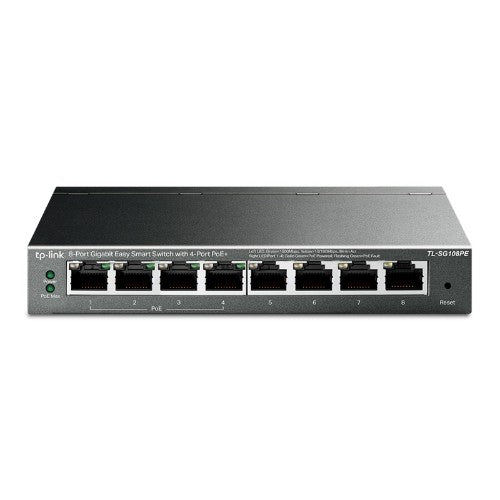

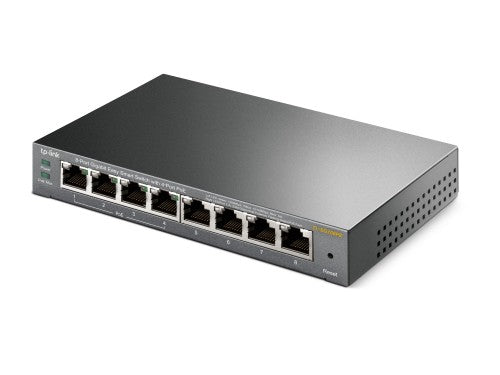

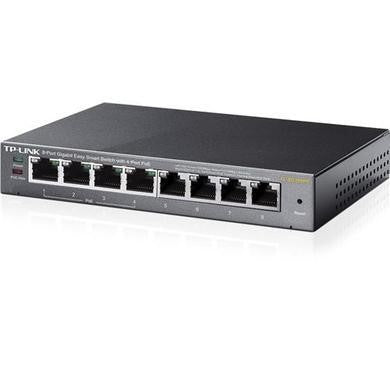

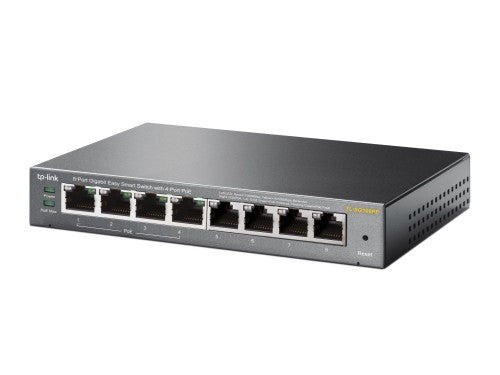

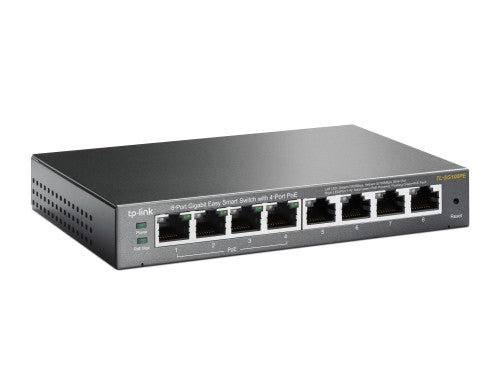

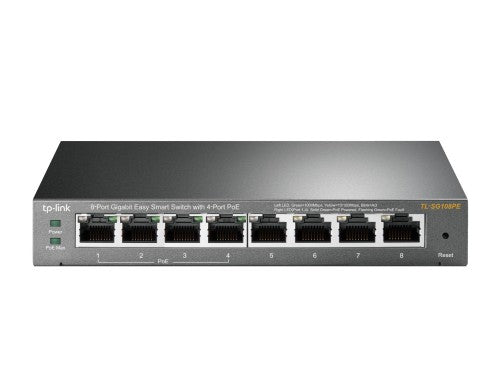

8-Port Gigabit Easy Smart Switch with 4-Port PoE
Surveillance
Work with IP Cameras
Conference Call
Work with IP Phones
Wi-Fi Coverage
Work with Omada EAPs
Power over Ethernet
4 of the 5 Auto-Negotiation RJ45 ports (Port 1 to Port 4) of the switch support Power over Ethernet (PoE) function. These PoE ports can automatically detect and supply power with those IEEE 802.3af compliant Powered Devices (PDs).
Intelligent Power Management
When total power consumption excels 55W, the intelligent power management will cut the lower priority port power off to ensure the high priority port’s power supply and protect the device from power overload operation.
Management Made Easy
TL-SG108PE offers network monitoring for users to observe traffic behavior. Through its web-based user interface and management utility, the TL-SG108PE offers a variety of useful features, including network monitoring, traffic prioritization, and enhanced QoS.
Sturdy Metal Casing
Sturdy, compact metal casing and shielded RJ45 ports, with desktop/wall-mounting design, to meet your needs in any environment. Besides, fanless design ensures quiet operation.
Key Features
- 8 10/100/1000Mbps RJ45 ports
- Equipped with 4 802.3af PoE ports with up to 15.4W for each port, data and power can be transferred on one single cable
- Supports PoE power up to 55W for all PoE ports
- Provides network monitoring, traffic prioritization and VLAN features
- Simple network set-up on top of plug-and-play connectivity
- Web-based user interface and Easy Smart Configuration Utility simplify configuration
Description
PoE Switches for Your Ultra Convenience8-Port Gigabit Easy Smart Switch with 4-Port PoE
Surveillance
Work with IP Cameras
Conference Call
Work with IP Phones
Wi-Fi Coverage
Work with Omada EAPs
Power over Ethernet
4 of the 5 Auto-Negotiation RJ45 ports (Port 1 to Port 4) of the switch support Power over Ethernet (PoE) function. These PoE ports can automatically detect and supply power with those IEEE 802.3af compliant Powered Devices (PDs).
Intelligent Power Management
When total power consumption excels 55W, the intelligent power management will cut the lower priority port power off to ensure the high priority port’s power supply and protect the device from power overload operation.
Management Made Easy
TL-SG108PE offers network monitoring for users to observe traffic behavior. Through its web-based user interface and management utility, the TL-SG108PE offers a variety of useful features, including network monitoring, traffic prioritization, and enhanced QoS.
Sturdy Metal Casing
Sturdy, compact metal casing and shielded RJ45 ports, with desktop/wall-mounting design, to meet your needs in any environment. Besides, fanless design ensures quiet operation.
Specifications
| Management features | |
|---|---|
| Switch type | Managed |
| Web-based management | Yes |
| Quality of Service (QoS) support | Yes |
| Switch layer | L2 |
| Ports & interfaces | |
| Basic switching RJ-45 Ethernet ports quantity | 8 |
| Basic switching RJ-45 Ethernet ports type | Gigabit Ethernet (10/100/1000) |
| Installed SFP modules quantity | 0 |
| Installed SFP+ modules quantity | 0 |
| Gigabit Ethernet (copper) ports quantity | 8 |
| Network | |
| Cable types supported | Cat3, Cat4, Cat5, Cat5e, Cat6 |
| Networking standards | IEEE 802.1Q, IEEE 802.1p, IEEE 802.3ab, IEEE 802.3i, IEEE 802.3u, IEEE 802.3x |
| VLAN support | Yes |
| Rate limiting | Yes |
| Port mirroring | Yes |
| Number of VLANs | 32 |
| Link aggregation | Yes |
| Broadcast storm control | Yes |
| Auto MDI/MDI-X | Yes |
| 10G support | No |
| Auto-negotiation | Yes |
| Virtual LAN features | Port-based VLAN |
| IGMP snooping | Yes |
| Data transmission | |
| Packet forwarding rate (1 Gbps) | 11900000 pps |
| Jumbo frames | 15000 |
| Packet buffer memory | 1.5 MB |
| MAC address table | 4000 entries |
| Switching capacity | 16 Gbit/s |
| Store-and-forward | Yes |
| Jumbo frames support | Yes |
| Forwarding rate | 11.9 Mpps |
| Number of VLANs | 32 |
| Security | |
| Loop protection | Yes |
| IGMP snooping | Yes |
| Design | |
| Product colour | Black |
| LED indicators | Activity, Link, PoE, Power, Speed, Status |
| Certification | FCC, CE, RoHS |
| Power | |
| Power consumption (max) | 65.2 W |
| Power supply included | Yes |
| AC input voltage | 220 V |
| AC input frequency | 50 Hz |
| Input voltage | 48 V |
| Input current | 1.25 A |
| Power source | DC |
| Power over Ethernet (PoE) | |
| Power over Ethernet (PoE) power per port | 15.4 W |
| Power over Ethernet plus (PoE+) ports quantity | 4 |
| Total Power over Ethernet (PoE) budget | 64 W |
| Power over Ethernet (PoE) ports quantity | 4 |
| Power over Ethernet (PoE) | Yes |
| Operational conditions | |
| Storage temperature (T-T) | -40 - 70 °C |
| Storage relative humidity (H-H) | 5 - 95% |
| Operating temperature (T-T) | 0 - 40 °C |
| Operating relative humidity (H-H) | 10 - 90% |
| Heat dissipation | 256.19 BTU/h |
| Virtual LAN features | |
| VLAN support | Yes |
| Number of VLANs | 32 |
| Virtual LAN features | Port-based VLAN |
| Weight & dimensions | |
| Width | 158 mm |
| Depth | 101 mm |
| Height | 25 mm |
| Packaging content | |
| User guide | Yes |
| Cables included | AC |
| Packaging data | |
| Package type | Box |
| Package width | 131 mm |
| Package depth | 196 mm |
| Package height | 121 mm |
| Package weight | 890 g |
| User guide | Yes |
| Cables included | AC |
| Performance | |
| Packet buffer memory | 1.5 MB |
| Auto-negotiation | Yes |
| Harmonized System (HS) code | 85176990 |
| Technical details | |
| Product colour | Black |
| Memory | |
| Packet buffer memory | 1.5 MB |
| Certificates | |
| Certification | FCC, CE, RoHS |
| Indication | |
| LED indicators | Activity, Link, PoE, Power, Speed, Status |
| Other features | |
| Input voltage | 48 V |
| Logistics data | |
| Harmonized System (HS) code | 85176990 |
