Description
4G+ Cat6 AC1200, 300 Mbps (2.4 GHz) + 867 Mbps (5 GHz), 802.11 a/b/g/n/ac, 212 x 157.5 x 57 mm
AC1200 Dual Band Wi-Fi LTE Router
Fast 4G+ Connection Where You Need It
Simple, just one SIM card
Traditional broadband or cable installation is expensive and time-consuming for your vacation home, farm, or suburban warehouse. Long contract periods also create headaches for short-rentals, pop-up venues, and temporary shops to access the internet. Archer MR505 ensures a comfortable and no-block network installation. Plug in your SIM card and enjoy high-speed internet!

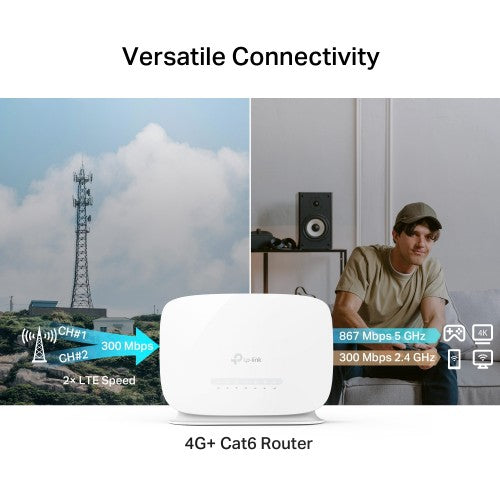

Superfast 4G+ LTE Speed for Reliable Wi-Fi
Thanks to 4G+ Carrier Aggregation technology which combines different carrier signals for even faster bandwidth, MR505 boosts 300 Mbps download speeds fulfills your devices’ needs. It can also share a dual-band Wi-Fi network with speeds of 867 Mbps on 5 GHz for bandwidth-intensive tasks like HD streaming and gaming and 300 Mbps on 2.4 GHz for internet surfing, email, and social media.
Ideal for Small Business
with 64 Devices Connection Simultaneously
Easily share a 3G/4G connection with up to 64 wireless devices, such as phones, tablets, and laptops, at the same time. 3 LAN ports stand ready to provide internet for wired devices like desktop computers.
Powerful CPU
for Stable Data Processing
MU-MIMO
Serves Multiple Devices at once
Beamforming
Concentrate Signal Strength
Amplifier with External Antennas
Boost Signal Coverage

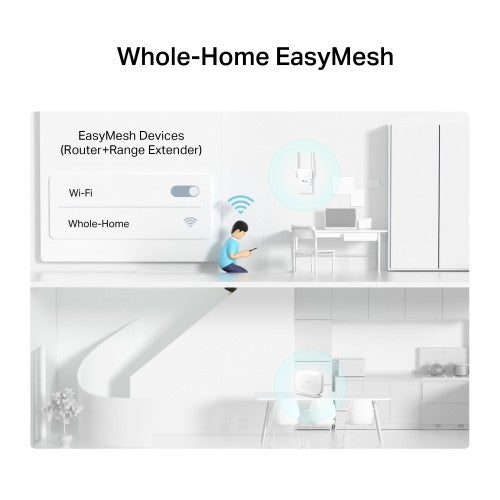

Flexibly Create Whole Home Mesh WiFi
If you have any dead zones at home, just add another EasyMesh-compatible router/range extender to further form your whole home multi-gigabit mesh WiFi. No more searching for a stable connection.
WiFi Dead Zone Killer
Eliminate weak signal areas with WiFi coverage for the whole house
Smart Roaming
Uninterrupted streaming when moving around your home
One WiFi Name
No more switching WiFi network names
Available WAN Connection Backup
With a fully functional WAN/LAN port, Archer MR505 can work as a router that is compatible with cable, fiber, and DSL modems, or provide internet for wired devices. The reliable access is for up to 64 devices Simultaneously.
Easy Setup and Use
Set up the Archer MR505 in minutes thanks to its intuitive web interface and the powerful Tether app. Manage network settings, including Parental Controls and Access Control, from any Android or iOS device. Tether also provides Automatic Firmware Updates to always give your network the latest performance and security.
Key Features
- Advanced 4G+ Router – supports 4G+ Cat6 to boost the data speeds of up to 300 Mbps
- Plug a SIM card and play – no configurations needed, compatibility of SIM cards in 100+ countries are assured by years of field tests
- MU-MIMO supported – simultaneous data streams increase WiFi throughput and network efficiency
- EasyMesh-Compatible – Flexibly Create Whole Home Mesh WiFi
- Better Signal for Connections Everywhere – enjoy stable and efficient connections to every device
- Full Gigabit Ports – provides reliable wired connections for bandwidth-intensive devices such as game consoles and IPTVs
- Wi-Fi Router Mode – plug an Ethernet cable into the WAN/LAN port for flexible access as a backup option if you can't get a 4G connection
- Easy setup and management all by Tether app
Description
A 4G+ Router for Flexible ConnectionsAC1200 Dual Band Wi-Fi LTE Router
Fast 4G+ Connection Where You Need It
Simple, just one SIM card
Traditional broadband or cable installation is expensive and time-consuming for your vacation home, farm, or suburban warehouse. Long contract periods also create headaches for short-rentals, pop-up venues, and temporary shops to access the internet. Archer MR505 ensures a comfortable and no-block network installation. Plug in your SIM card and enjoy high-speed internet!
Superfast 4G+ LTE Speed for Reliable Wi-Fi
Thanks to 4G+ Carrier Aggregation technology which combines different carrier signals for even faster bandwidth, MR505 boosts 300 Mbps download speeds fulfills your devices’ needs. It can also share a dual-band Wi-Fi network with speeds of 867 Mbps on 5 GHz for bandwidth-intensive tasks like HD streaming and gaming and 300 Mbps on 2.4 GHz for internet surfing, email, and social media.
Ideal for Small Business
with 64 Devices Connection Simultaneously
Easily share a 3G/4G connection with up to 64 wireless devices, such as phones, tablets, and laptops, at the same time. 3 LAN ports stand ready to provide internet for wired devices like desktop computers.
Powerful CPU
for Stable Data Processing
MU-MIMO
Serves Multiple Devices at once
Beamforming
Concentrate Signal Strength
Amplifier with External Antennas
Boost Signal Coverage
Flexibly Create Whole Home Mesh WiFi
If you have any dead zones at home, just add another EasyMesh-compatible router/range extender to further form your whole home multi-gigabit mesh WiFi. No more searching for a stable connection.
WiFi Dead Zone Killer
Eliminate weak signal areas with WiFi coverage for the whole house
Smart Roaming
Uninterrupted streaming when moving around your home
One WiFi Name
No more switching WiFi network names
Available WAN Connection Backup
With a fully functional WAN/LAN port, Archer MR505 can work as a router that is compatible with cable, fiber, and DSL modems, or provide internet for wired devices. The reliable access is for up to 64 devices Simultaneously.
Easy Setup and Use
Set up the Archer MR505 in minutes thanks to its intuitive web interface and the powerful Tether app. Manage network settings, including Parental Controls and Access Control, from any Android or iOS device. Tether also provides Automatic Firmware Updates to always give your network the latest performance and security.
Specifications
| Ethernet LAN features | |
|---|---|
| Ethernet WAN | Yes |
| Ethernet LAN interface type | Gigabit Ethernet |
| Ethernet LAN | Yes |
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
| Cabling technology | 10/100/1000Base-T(X) |
| Mobile network | |
| SIM card slot | Yes |
| Mobile network generation | 4G |
| 4G bands supported | 700,800,850,900,1800,2100,2300,2500,2600 MHz |
| 3G standards | DC-HSPA+, HSPA+, UMTS |
| 4G standard | LTE-TDD & LTE-FDD |
| 3G bands supported | 850,900,2100 MHz |
| Packaging content | |
| Package type | Box |
| Quick start guide | Yes |
| AC adapter included | Yes |
| WAN connection | |
| Ethernet WAN | Yes |
| SIM card slot | Yes |
| Wireless LAN features | |
| Top Wi-Fi standard | Wi-Fi 5 (802.11ac) |
| WLAN data transfer rate (max) | 1200 Mbit/s |
| Wi-Fi band | Dual-band (2.4 GHz / 5 GHz) |
| WLAN data transfer rate (first band) | 300 Mbit/s |
| WLAN data transfer rate (second band) | 867 Mbit/s |
| Wi-Fi standards | 802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac) |
| Network | |
| Ethernet LAN interface type | Gigabit Ethernet |
| Ethernet LAN | Yes |
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
| Cabling technology | 10/100/1000Base-T(X) |
| Number of guest networks (5 GHz) | 1 |
| Number of guest networks (2.4 GHz) | 1 |
| VPN server | Yes |
| Static route | Yes |
| Dynamic DNS (DDNS) | Yes |
| Ports & interfaces | |
| USB port | No |
| Ethernet LAN (RJ-45) ports | 3 |
| DC-in jack | Yes |
| Security | |
| Security algorithms | 64-bit WEP, 128-bit WEP, WPA, WPA3 |
| Parental control | Yes |
| Protocols | |
| DHCP server | Yes |
| DHCP client | Yes |
| Design | |
| Product type | Desktop/pole router |
| Product colour | White |
| Indication light | Yes |
| Antenna | |
| Antenna design | Internal |
| Detachable antenna(s) | Yes |
| Antennas quantity | 2 |
| Power | |
| Power source type | DC |
| Output voltage | 12 V |
| Output current | 1.5 A |
| Operational conditions | |
| Storage relative humidity (H-H) | 5 - 90% |
| Operating temperature (T-T) | 0 - 40 °C |
| Operating relative humidity (H-H) | 10 - 90% |
| Weight & dimensions | |
| Width | 212 mm |
| Height | 57 mm |
| Depth | 157.5 mm |
| Packaging data | |
| Quick start guide | Yes |
| Package type | Box |
| AC adapter included | Yes |
