IEEE 802.3/802.3u/802.3ab/802.3af, 10/100/1000Mbps, PoE
Key Features
- IEEE 802.3af compliant
- Selectable power output
- Gigabit speed support
- Plug-and-Play, requires no configuration
Description

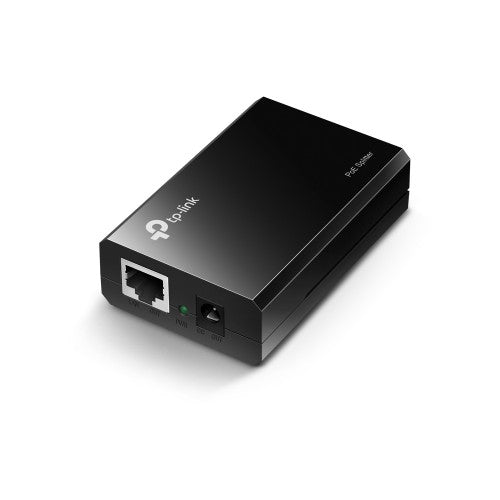

TP-LINK’s PoE Splitter TL-POE10R fully complies with IEEE 802.3af standard. It can receive power and data from all IEEE 802.3af PoE compliant PSE (Power Source Equipment) or PoE Injector, such as TP-LINK's TL-SG3424P, TL-SF1008P, TL-POE150S or other equivalent products, then split electric power and data into two cables, so you can install the non-PoE devices like Wireless Access Points, IP Cameras or IP Phones, in remote location where there are no power lines or outlets, where you wish to fix these devices.
Specifications
| Features |
|---|
| LED indicators |
Power |
| Certification |
FCC, CE |
| Plug and Play |
Yes |
| Product colour |
Black |
| Network |
|---|
| Networking standards |
IEEE 802.3, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3u |
| Power over Ethernet (PoE) |
Yes |
| Performance |
|---|
| Networking standards |
IEEE 802.3, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3u |
| Design |
|---|
| LED indicators |
Power |
| Certification |
FCC, CE |
| Plug and Play |
Yes |
| Product colour |
Black |
| Ports & interfaces |
|---|
| RJ-45 input ports |
1 |
| RJ-45 output ports |
1 |
| DC-out jack |
Yes |
| Ethernet LAN (RJ-45) ports |
2 |
| Power |
|---|
| Power over Ethernet (PoE) |
Yes |
| Input voltage |
5, 9, 12 V |
| Operational conditions |
|---|
| Storage relative humidity (H-H) |
5 - 90% |
| Storage temperature (T-T) |
-40 - 70 °C |
| Operating temperature (T-T) |
0 - 40 °C |
| Operating relative humidity (H-H) |
10 - 90% |
| Technical details |
|---|
| Networking standards |
IEEE 802.3, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3u |
| Colour |
|---|
| Product colour |
Black |
| Weight & dimensions |
|---|
| Width |
80.8 mm |
| Height |
24 mm |
| Depth |
54 mm |
