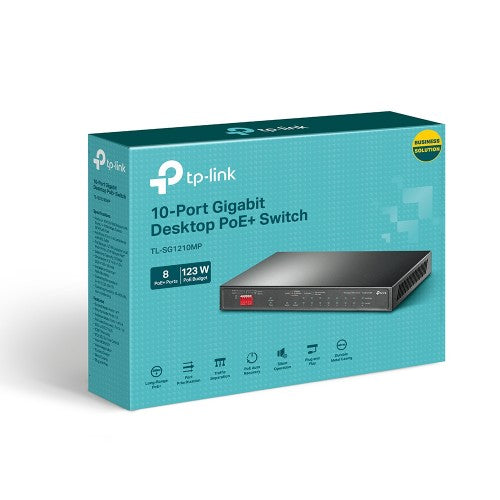

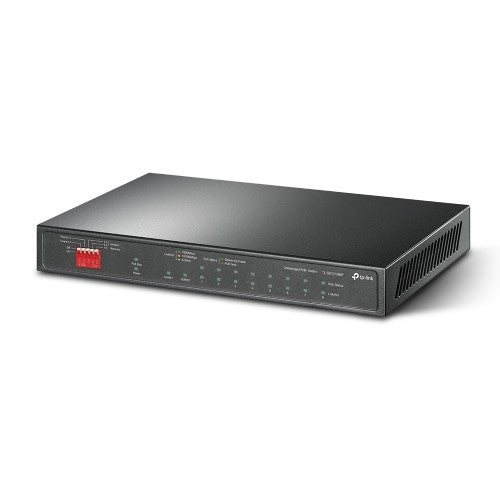

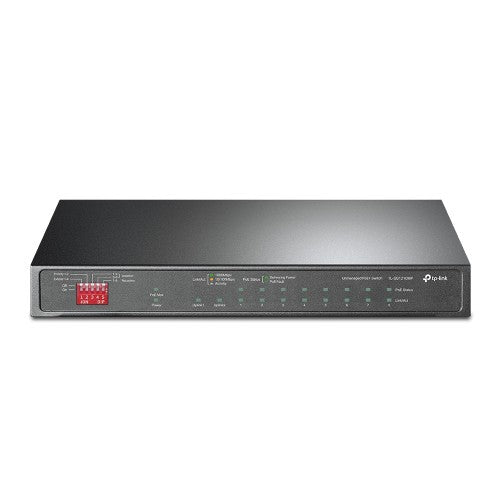

TP-Link TL-SG1210MP, Unmanaged, Gigabit Ethernet (10/100/1000), Power over Ethernet (PoE)
Description
TP-Link TL-SG1210MP. Switch type: Unmanaged. Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000), Basic switching RJ-45 Ethernet ports quantity: 9. MAC address table: 4000 entries, Switching capacity: 20 Gbit/s. Networking standards: IEEE 802.3af, IEEE 802.3at, IEEE 802.3i, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z. Power over Ethernet (PoE)
Specifications
| Management features |
|---|
| Switch type |
Unmanaged |
| Ports & interfaces |
|---|
| Basic switching RJ-45 Ethernet ports quantity |
9 |
| Basic switching RJ-45 Ethernet ports type |
Gigabit Ethernet (10/100/1000) |
| Installed SFP modules quantity |
0 |
| Installed SFP+ modules quantity |
0 |
| Combo SFP ports quantity |
1 |
| Copper ethernet cabling technology |
10BASE-T, 100BASE-TX |
| Network |
|---|
| Cable types supported |
Cat3, Cat4, Cat5, Cat5e |
| MAC address auto-learning supported |
Yes |
| MAC address auto-aging supported |
Yes |
| Copper ethernet cabling technology |
10BASE-T, 100BASE-TX |
| Networking standards |
IEEE 802.3af, IEEE 802.3at, IEEE 802.3i, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z |
| Flow control support |
Yes |
| Auto MDI/MDI-X |
Yes |
| 10G support |
No |
| Auto-negotiation |
Yes |
| Data transmission |
|---|
| Packet buffer memory |
14.88 MB |
| MAC address table |
4000 entries |
| Switching capacity |
20 Gbit/s |
| Store-and-forward |
Yes |
| Design |
|---|
| Product colour |
Black |
| LED indicators |
Yes |
| Rack mounting |
No |
| Certification |
CE, FCC |
| Performance |
|---|
| Fanless |
Yes |
| Packet buffer memory |
14.88 MB |
| Auto-negotiation |
Yes |
| Harmonized System (HS) code |
85176990 |
| Power |
|---|
| Power consumption (max) |
141.4 W |
| Input voltage |
53.5 V |
| Input current |
2.43 A |
| Power source |
DC |
| Power over Ethernet (PoE) |
|---|
| Power over Ethernet (PoE) power per port |
30 W |
| Power over Ethernet plus (PoE+) ports quantity |
8 |
| Total Power over Ethernet (PoE) budget |
123 W |
| Power over Ethernet (PoE) |
Yes |
| Operational conditions |
|---|
| Storage temperature (T-T) |
-40 - 70 °C |
| Storage relative humidity (H-H) |
5 - 90% |
| Operating temperature (T-T) |
0 - 40 °C |
| Operating relative humidity (H-H) |
10 - 90% |
| Heat dissipation |
482.17 BTU/h |
| Weight & dimensions |
|---|
| Width |
209 mm |
| Depth |
126 mm |
| Height |
26 mm |
| Packaging content |
|---|
| Quick start guide |
Yes |
| Packaging data |
|---|
| Package width |
240 mm |
| Package depth |
315 mm |
| Package height |
70 mm |
| Package weight |
1.41 kg |
| Quick start guide |
Yes |
| Technical details |
|---|
| Product colour |
Black |
| Rack mounting |
No |
| Memory |
|---|
| Packet buffer memory |
14.88 MB |
| Certificates |
|---|
| Certification |
CE, FCC |
| Indication |
|---|
| LED indicators |
Yes |
| Other features |
|---|
| Input voltage |
53.5 V |
| Logistics data |
|---|
| Harmonized System (HS) code |
85176990 |
