Description

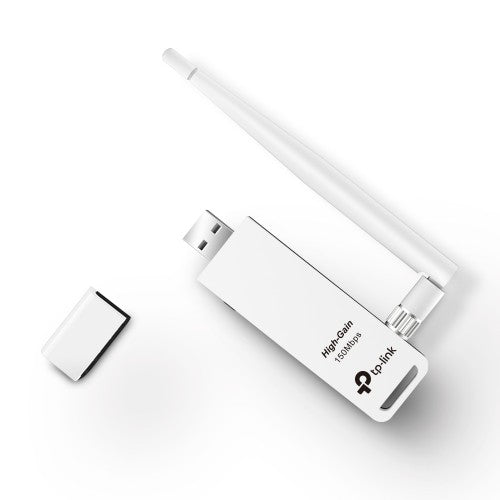

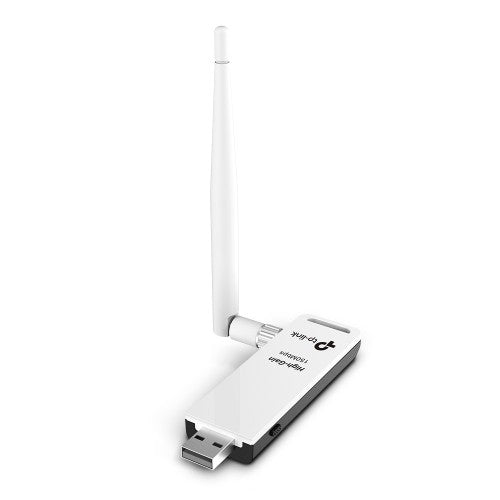

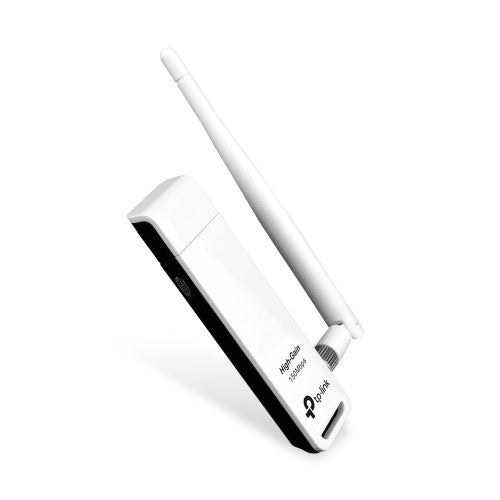

150Mbps High Gain Wireless USB Adapter
The TP-LINK TL-WN722N Wireless High Gain USB Adapter allows you to connect a desktop or notebook computer to a wireless network and access high-speed Internet connection. Using AlignTM 1-stream technology based on 802.11n technology, TL-WN722N provides a better wireless signal than existing wireless 802.11g technology. Most of all, equipped 4dBi detachable antenna can remarkably boost your signal range and speed. Now you can get a better Internet experience, such as downloading, gaming, video streaming and so on.

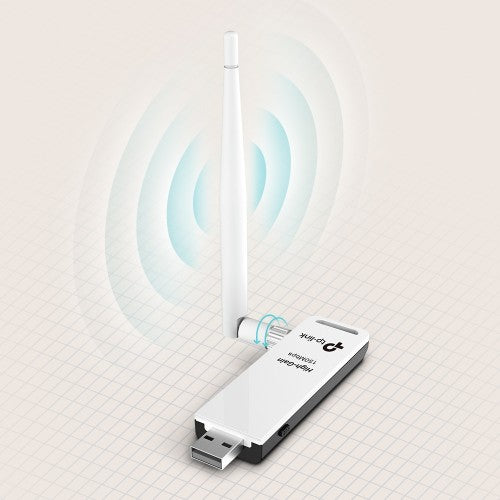

HIGH GAIN DESIGN
With powerful 4dBi detachable antenna, the TL-WN722N remains excellent performance in the long range and bad environment, it can receive signal from wireless base even separated by 2 floors.
QUICK SECURE SETUP
Quick Security Setup is a handy feature that allows users to almost instantly setup their security simply by pressing the QSS button on the wireless adapter, it automatically establishes a WPA secure connection, instantly protecting your network.
Features
- 150Mbps wireless transmission rate;
- Provides two methods of operation: Infrastructure and Ad-Hoc;
- Quick Secure Setup, complies with WPS for worry free wireless security;
- Supports 64/128-bit WEP, complies with 128 bit WPA standard(TKIP/AES), supports MIC, IV Expansion, Shared Key Authentication, IEEE 802.1X;
- 4dBi omni-directional antenna detachable;
- Supports Windows 2000/XP/Vista/7 OS;
- Seamlessly compatible with 802.11b/g/n devices.
Key Features
- Exceptional wireless speed up to 150Mbps brings best experience for video streaming or internet calls
- Easy wireless security encryption at a push of the WPS button
- 4dBi detachable antenna, remarkably strengthen signal power of the USB adapter
Description
WHAT THIS PRODUCT DOESThe TP-LINK TL-WN722N Wireless High Gain USB Adapter allows you to connect a desktop or notebook computer to a wireless network and access high-speed Internet connection. Using AlignTM 1-stream technology based on 802.11n technology, TL-WN722N provides a better wireless signal than existing wireless 802.11g technology. Most of all, equipped 4dBi detachable antenna can remarkably boost your signal range and speed. Now you can get a better Internet experience, such as downloading, gaming, video streaming and so on.
HIGH GAIN DESIGN
With powerful 4dBi detachable antenna, the TL-WN722N remains excellent performance in the long range and bad environment, it can receive signal from wireless base even separated by 2 floors.
QUICK SECURE SETUP
Quick Security Setup is a handy feature that allows users to almost instantly setup their security simply by pressing the QSS button on the wireless adapter, it automatically establishes a WPA secure connection, instantly protecting your network.
Features
- 150Mbps wireless transmission rate;
- Provides two methods of operation: Infrastructure and Ad-Hoc;
- Quick Secure Setup, complies with WPS for worry free wireless security;
- Supports 64/128-bit WEP, complies with 128 bit WPA standard(TKIP/AES), supports MIC, IV Expansion, Shared Key Authentication, IEEE 802.1X;
- 4dBi omni-directional antenna detachable;
- Supports Windows 2000/XP/Vista/7 OS;
- Seamlessly compatible with 802.11b/g/n devices.
Specifications
| Ports & interfaces | |
|---|---|
| Internal | No |
| Interface | WLAN |
| Host interface | USB |
| Connectivity technology | Wireless |
| Bandwidth | |
| Maximum data transfer rate | 150 Mbit/s |
| Wireless LAN features | |
| Wi-Fi band | Single-band (2.4 GHz) |
| Top Wi-Fi standard | Wi-Fi 4 (802.11n) |
| Wi-Fi standards | 802.11b, 802.11g, Wi-Fi 4 (802.11n) |
| Wi-Fi | Yes |
| WLAN data transfer rates supported | 11,54,150 Mbit/s |
| Network | |
| WPS push button | Yes |
| Wi-Fi band | Single-band (2.4 GHz) |
| Top Wi-Fi standard | Wi-Fi 4 (802.11n) |
| Wi-Fi standards | 802.11b, 802.11g, Wi-Fi 4 (802.11n) |
| Wi-Fi | Yes |
| Security algorithms | 64-bit WEP, 128-bit WEP, WMM, WPA-PSK, WPA2-PSK |
| Networking standards | IEEE 802.11b, IEEE 802.11g, IEEE 802.11n |
| Modulation | 16-QAM, 64-QAM, CCK, DBPSK, DQPSK, OFDM |
| WLAN data transfer rates supported | 11,54,150 Mbit/s |
| Frequency range | 2.4 - 2.4835 GHz |
| Maximum data transfer rate | 150 Mbit/s |
| Antenna | |
| Antenna | Yes |
| Frequency range | 2.4 - 2.4835 GHz |
| Antenna connector type | RP-SMA |
| Technical details | |
| Product colour | Black, White |
| Harmonized System (HS) code | 85176990 |
| Sustainability compliance | Yes |
| Compliance certificates | CE, Federal Communications Commission (FCC), RoHS |
| Design | |
| WPS push button | Yes |
| Product colour | Black, White |
| Antenna | Yes |
| Internal | No |
| Antenna connector type | RP-SMA |
| Antenna direction type | Omni-directional |
| Transmitting power (CE) | 20 dBm |
| Transmitting power (FCC) | 27 dBm |
| Operating modes | Infrastructure mode |
| Antenna design | External |
| Antenna gain level (max) | 4 dBi |
| Software | |
| Windows operating systems supported | Windows 7 Professional x64, Windows 8.1 Pro, Windows 10, Windows 7 Starter, Windows 8.1 Pro x64, Windows 10 Education, Windows 7 Starter x64, Windows 8.1 x64, Windows 10 Education x64, Windows 7 Ultimate, Windows 10 Enterprise, Windows 7 Ultimate x64, Windows 10 Enterprise x64, Windows 7 x64, Windows 10 Home, Windows 8, Windows 10 Home x64, Windows 7, Windows 8 Enterprise, Windows 10 IOT Core, Windows 7 Enterprise, Windows 8 Enterprise x64, Windows XP, Windows 10 IoT Enterprise, Windows 7 Enterprise x64, Windows 8 Pro, Windows XP Home, Windows 10 Pro, Windows 7 Home Basic, Windows 8 Pro x64, Windows XP Home x64, Windows 10 Pro x64, Windows 7 Home Basic x64, Windows 8 x64, Windows XP Professional, Windows 10 x64, Windows 7 Home Premium, Windows 8.1, Windows XP Professional x64, Windows 7 Home Premium x64, Windows 8.1 Enterprise, Windows 7 Professional, Windows 8.1 Enterprise x64 |
| Mac operating systems supported | Yes |
| Linux operating systems supported | Yes |
| System requirements | |
| Windows operating systems supported | Windows 7 Professional x64, Windows 8.1 Pro, Windows 10, Windows 7 Starter, Windows 8.1 Pro x64, Windows 10 Education, Windows 7 Starter x64, Windows 8.1 x64, Windows 10 Education x64, Windows 7 Ultimate, Windows 10 Enterprise, Windows 7 Ultimate x64, Windows 10 Enterprise x64, Windows 7 x64, Windows 10 Home, Windows 8, Windows 10 Home x64, Windows 7, Windows 8 Enterprise, Windows 10 IOT Core, Windows 7 Enterprise, Windows 8 Enterprise x64, Windows XP, Windows 10 IoT Enterprise, Windows 7 Enterprise x64, Windows 8 Pro, Windows XP Home, Windows 10 Pro, Windows 7 Home Basic, Windows 8 Pro x64, Windows XP Home x64, Windows 10 Pro x64, Windows 7 Home Basic x64, Windows 8 x64, Windows XP Professional, Windows 10 x64, Windows 7 Home Premium, Windows 8.1, Windows XP Professional x64, Windows 7 Home Premium x64, Windows 8.1 Enterprise, Windows 7 Professional, Windows 8.1 Enterprise x64 |
| Mac operating systems supported | Yes |
| Linux operating systems supported | Yes |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 40 °C |
| Storage temperature (T-T) | -40 - 70 °C |
| Operating relative humidity (H-H) | 10 - 90% |
| Storage relative humidity (H-H) | 5 - 90% |
| Sustainability | |
| Sustainability compliance | Yes |
| Weight & dimensions | |
| Width | 93.5 mm |
| Depth | 26 mm |
| Height | 11 mm |
| Package width | 200 mm |
| Package depth | 150 mm |
| Package height | 39 mm |
| Package weight | 180 g |
| Security | |
| Security algorithms | 64-bit WEP, 128-bit WEP, WMM, WPA-PSK, WPA2-PSK |
| Packaging data | |
| Package width | 200 mm |
| Package depth | 150 mm |
| Package height | 39 mm |
| Package weight | 180 g |
| Quick installation guide | Yes |
| Cables included | USB |
| Packaging content | |
| Quick installation guide | Yes |
| Cables included | USB |
| Resource CD | Yes |
| Performance | |
| Security algorithms | 64-bit WEP, 128-bit WEP, WMM, WPA-PSK, WPA2-PSK |
| Windows operating systems supported | Windows 7 Professional x64, Windows 8.1 Pro, Windows 10, Windows 7 Starter, Windows 8.1 Pro x64, Windows 10 Education, Windows 7 Starter x64, Windows 8.1 x64, Windows 10 Education x64, Windows 7 Ultimate, Windows 10 Enterprise, Windows 7 Ultimate x64, Windows 10 Enterprise x64, Windows 7 x64, Windows 10 Home, Windows 8, Windows 10 Home x64, Windows 7, Windows 8 Enterprise, Windows 10 IOT Core, Windows 7 Enterprise, Windows 8 Enterprise x64, Windows XP, Windows 10 IoT Enterprise, Windows 7 Enterprise x64, Windows 8 Pro, Windows XP Home, Windows 10 Pro, Windows 7 Home Basic, Windows 8 Pro x64, Windows XP Home x64, Windows 10 Pro x64, Windows 7 Home Basic x64, Windows 8 x64, Windows XP Professional, Windows 10 x64, Windows 7 Home Premium, Windows 8.1, Windows XP Professional x64, Windows 7 Home Premium x64, Windows 8.1 Enterprise, Windows 7 Professional, Windows 8.1 Enterprise x64 |
| Mac operating systems supported | Yes |
| Linux operating systems supported | Yes |
| Logistics data | |
| Harmonized System (HS) code | 85176990 |
| Other features | |
| Harmonized System (HS) code | 85176990 |
