Tripp Lite PDUMV20HVNETLX 3.7kW Single-Phase Switched PDU - LX Interface, 208/230V Outlets (20 C13 & 4 C19), C20/L6-20P, 0U, TAA

3.7kW Single-Phase Switched PDU - LX Interface, 208/230V Outlets (20 C13 & 4 C19), C20/L6-20P, 0U, TAA

Key Features

• 3.3/3.7kW 208/230V switched PDU

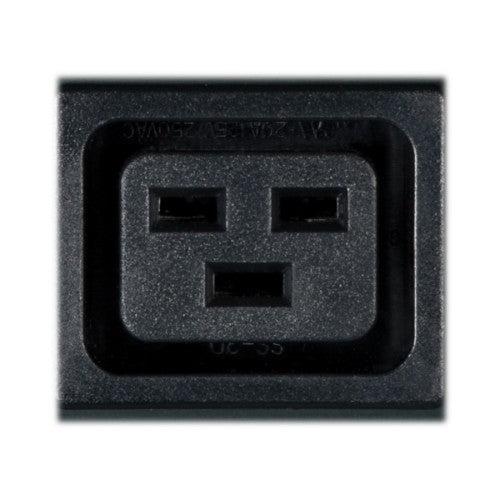

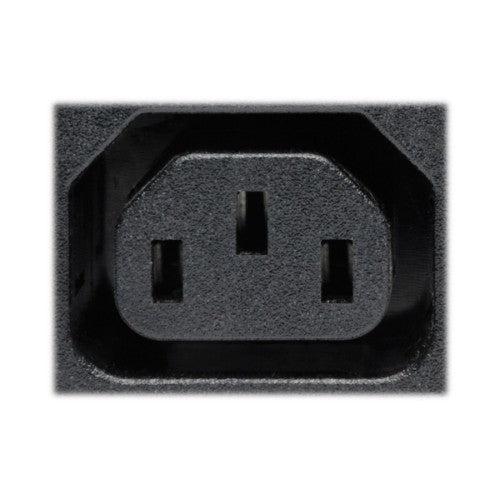

• 24 individually controllable outlets—20 C13, 4 C19
• Compatible with Eaton Tripp Lite power cords to simplify deployment and enhance reliability
• Pre-installed WEBCARDLX with latest version of PADM20 for IP-based Auto Probe feature
• Digital ammeter for on-site load monitoring in real time

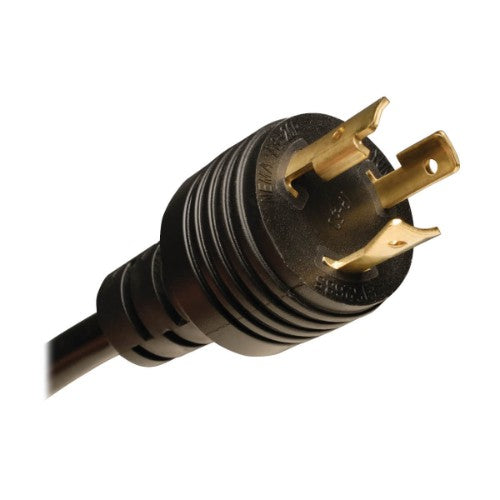

• C20 inlet with 10ft NEMA L6-20P AC power cord

Description

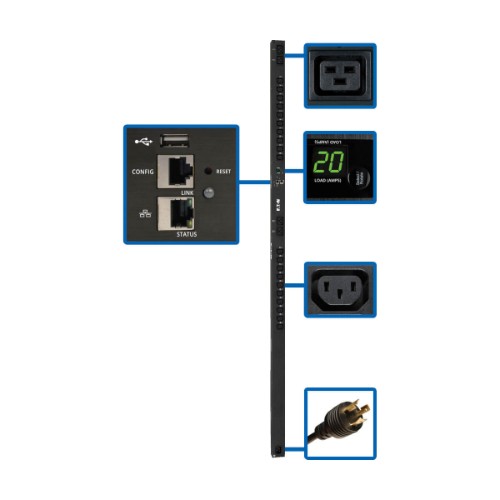

The PDUMV20HVNETLX 3.3-3.7kW Single-Phase Switched PDU provides advanced network control and remote power monitoring with the ability to turn on, turn off, reboot or lock out power to each outlet. Recommended for any IT or industrial application, it features 24 switched outlets (20 C13 and 4 C19) with included plug-lock insert sleeves to prevent cables from becoming accidentally disconnected. A 10-ft. (3.05 m) cord with NEMA L6-20P plug connects the PDU's C20 inlet to a compatible AC power source, generator or protected UPS.

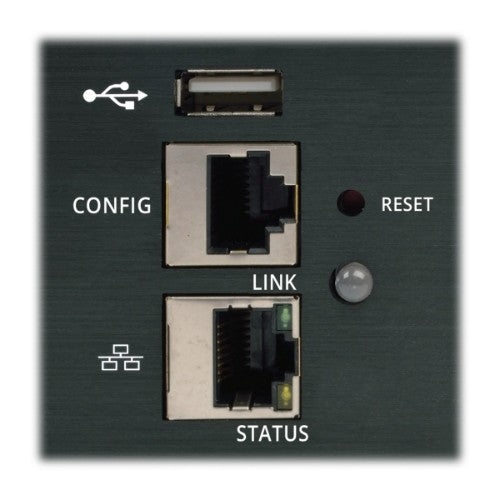

The built-in Java-free HTML5-based LX Platform network interface enables full remote access for PDU status monitoring and email notifications via secure web browser, SNMP, telnet or SSH. It supports 10/100 Mbps auto-sensing for optimum communication with an Ethernet network. Optional EnviroSense2 modules (sold separately) provide a variety of environmental monitoring capabilities. Protocols supported include HTTP, HTTPS, SMTP, SNMPv1, SNMPv2, SNMPv3, telnet, SSH, FTP, DHCP and NTP.

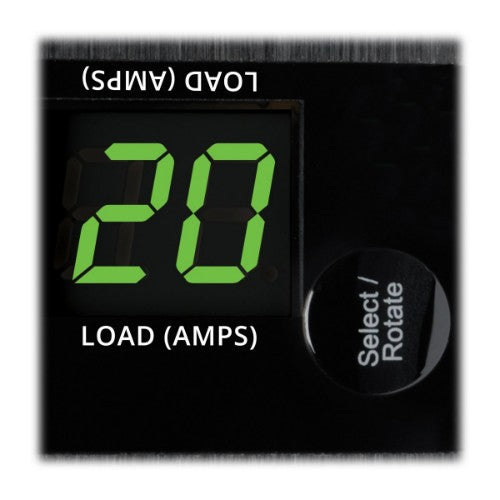

A digital ammeter allows you to monitor each bank's load in real time to ensure it remains well below maximum capacity with no danger of overload. The vertical PDU mounts in 0U of space in EIA-standard 19-inch racks using the included toolless mounting buttons or the included rack-mounting brackets. Use the included PDUMVROTATEBRKT kit to install the unit with outlets facing the rear for better airflow or equipment access.

Specifications

Design
Type	Single-phase
PDU types	Switched
Mounting	Vertical
Display	LCD
Product colour	Black
Certification	TAA, UL, CE, FCC, NOM, EN55022:2010+2011, EN55024:2010
Rack capacity	0U
Ports & interfaces
AC outlets quantity	24 AC outlet(s)
AC outlet types	C13 coupler, C19 coupler
Power plug	C20 coupler
Features
Cable length	3.05 m
LED indicators	Power, Status
Certification	TAA, UL, CE, FCC, NOM, EN55022:2010+2011, EN55024:2010
Management features
Supported network protocols	HTTP, HTTPS, SMTP, SNMPv1, SNMPv2, SNMPv3, telnet, SSH, FTP, DHCP, NTP
Ergonomics
Cable length	3.05 m
LED indicators	Power, Status
Display	LCD
Power
Nominal input voltage	200-240 V
Maximum current	20 A
Certificates
Certification	TAA, UL, CE, FCC, NOM, EN55022:2010+2011, EN55024:2010
Compliance certificates	RoHS
Operational conditions
Storage temperature (T-T)	-15 - 60 °C
Operating relative humidity (H-H)	0 - 95%
Weight & dimensions
Weight	3.86 kg
Width	56 mm
Depth	67 mm
Height	17778 mm
Package width	162.6 mm
Package depth	1854.2 mm
Package height	134.6 mm
Package weight	6.44 kg
Packaging data
Package width	162.6 mm
Package depth	1854.2 mm
Package height	134.6 mm
Package weight	6.44 kg
Technical details
Compliance certificates	RoHS
Logistics data
Products per master (outer) case	1 pc(s)
Country of origin	Taiwan
