Description

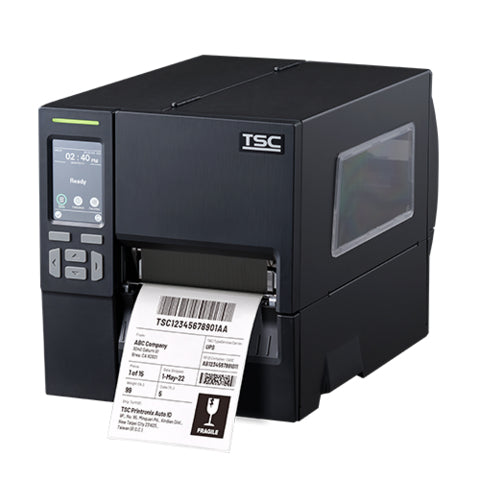

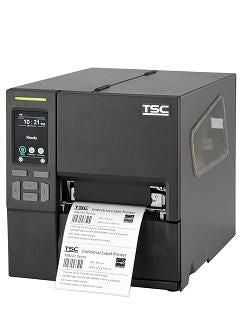

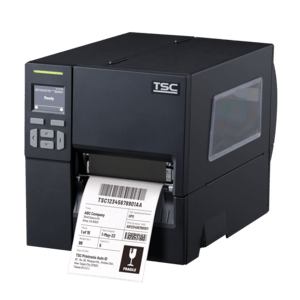

MB341T 300dpi, 3.5" Touch LCD, DRAM 256MB/Flash 256MB, USB+RS-232+Ethernet+USB Host+RTC, Wi-Fi Ready, EU & UK (EMEA)
The bifold door reduces space usage by 24%, streamlining media, ribbon replacement, and cleaning for efficient operations in limited space. (Available for the MB241 Series)
High-Quality Printing Assurance
- A robust all-metal print mechanism on a metal frame guarantees printing stability and printer longevity.
- Equipped with features to adjust the multi-point thermal printhead (TPH) pressure and heat line, it ensures consistent, high-quality printing.
Fits Diverse Applications Requirements
- Options: a cutter, an internal rewinder, and peel-off, linerless and RFID upgrade kits enhance printer versatility and cater to diverse needs.
- Connectivity options like MFi Bluetooth 5.0, Wi-Fi Bluetooth combo, and Bluetooth 5.0 offer flexibility for diverse applications.
- RFID functionality: Encode During Print feature for enhanced efficiency, support for diverse tags (including on-metal labels up to 1.65 mm) verified by our RFID Label and Validation Lab, and auto calibration for easy setup. (Available for the MB241 Series)
TSC Sense Care Smart Monitoring
- TSC Sense Care prevents downtime by monitoring printhead health with self-diagnostic TPH Care, printhead mileage, and cutter counts.
- Collected data can integrate with SOTI Connect and TSC Console for remote management and reporting.
Software Capabilities Harmonize Operations
- Auto-switch printer language emulation simplifies printer fleet migration and upgrades without changing print commands and label templates.
- TSC Standalone Creator generates printer LCD UI for quick template access and TSCPRTGo turns a mobile device into an extended display for mobile printing.
- SOTI Connect and TSC Console manage printer fleets, enabling swift deployment, configuration, and updates remotely.
- The Internal Embedded Webpage enables IT to remotely configure, troubleshoot, and oversee any specific printer in the field. (Available for the MB241 Series)
Commitment to Sustainability
- 100% recyclable packaging reduces environmental waste.
- 100% recyclable printer casing with over 90% recyclable printer components.
- The optional linerless kit offers a sustainable solution for greener label printing.
Note: In alignment with our sustainability vision, we are beginning to implement eco-friendly packaging and product design concepts, starting with the new generation MB241 Series.
Description
Optimised Space EfficiencyThe bifold door reduces space usage by 24%, streamlining media, ribbon replacement, and cleaning for efficient operations in limited space. (Available for the MB241 Series)
High-Quality Printing Assurance
- A robust all-metal print mechanism on a metal frame guarantees printing stability and printer longevity.
- Equipped with features to adjust the multi-point thermal printhead (TPH) pressure and heat line, it ensures consistent, high-quality printing.
Fits Diverse Applications Requirements
- Options: a cutter, an internal rewinder, and peel-off, linerless and RFID upgrade kits enhance printer versatility and cater to diverse needs.
- Connectivity options like MFi Bluetooth 5.0, Wi-Fi Bluetooth combo, and Bluetooth 5.0 offer flexibility for diverse applications.
- RFID functionality: Encode During Print feature for enhanced efficiency, support for diverse tags (including on-metal labels up to 1.65 mm) verified by our RFID Label and Validation Lab, and auto calibration for easy setup. (Available for the MB241 Series)
TSC Sense Care Smart Monitoring
- TSC Sense Care prevents downtime by monitoring printhead health with self-diagnostic TPH Care, printhead mileage, and cutter counts.
- Collected data can integrate with SOTI Connect and TSC Console for remote management and reporting.
Software Capabilities Harmonize Operations
- Auto-switch printer language emulation simplifies printer fleet migration and upgrades without changing print commands and label templates.
- TSC Standalone Creator generates printer LCD UI for quick template access and TSCPRTGo turns a mobile device into an extended display for mobile printing.
- SOTI Connect and TSC Console manage printer fleets, enabling swift deployment, configuration, and updates remotely.
- The Internal Embedded Webpage enables IT to remotely configure, troubleshoot, and oversee any specific printer in the field. (Available for the MB241 Series)
Commitment to Sustainability
- 100% recyclable packaging reduces environmental waste.
- 100% recyclable printer casing with over 90% recyclable printer components.
- The optional linerless kit offers a sustainable solution for greener label printing.
Note: In alignment with our sustainability vision, we are beginning to implement eco-friendly packaging and product design concepts, starting with the new generation MB241 Series.
Specifications
| Print quality | |
|---|---|
| Maximum resolution | 300 x 300 DPI |
| Maximum printing width | 10.6 cm |
| Maximum print height | 1.14 cm |
| Printing | |
| Colour | No |
| Print speed | 228.6 mm/sec |
| Maximum resolution | 300 x 300 DPI |
| Maximum printing width | 10.6 cm |
| Maximum print height | 1.14 cm |
| Print technology | Direct thermal / Thermal transfer |
| Number of printable dots | 12 dot |
| Display | |
| Display diagonal | 8.89 cm (3.5") |
| Colour display | Yes |
| Display | LCD |
| Network | |
| Wi-Fi | Yes |
| Ethernet LAN | Yes |
| Memory | |
| Internal memory | 256 MB |
| Flash memory | 256 MB |
| Paper handling | |
| Ribbon width | 11 cm |
| Ribbon length | 450 m |
| Maximum media length | 12 cm |
| Ports & interfaces | |
| Wi-Fi standards | 802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac) |
| RS-232 ports | 1 |
| Connectivity technology | Wired & Wireless |
| Bluetooth version | 5.0 |
| Bluetooth | Yes |
| Wi-Fi | Yes |
| Ethernet LAN | Yes |
| USB port | Yes |
| Performance | |
| Built-in barcodes | 1D, 2D, AZTECCODE, China post, Code 11, Code 128 (A/B/C), Code 39, Code 93, Code-128 Codabar Library, Code128UCC, Datamatrix, EAN128, EAN13, EAN8, GS1 DataBar, Interleaved 2/5, MSI, MaxiCode, PDF417, POSTNET, Plessey, QR Code, TLC39, UPC-A, UPC-E |
| Ribbon width | 11 cm |
| Ribbon length | 450 m |
| Internal memory | 256 MB |
| Flash memory | 256 MB |
| Built-in RFID module | Yes |
| Built-in processor | Yes |
| Page description languages | DPL, EPL, TSPL, TSPL-EZ, ZPL, ZPL II |
| Tape end detection | Yes |
| Open cover detection | Yes |
| Design | |
| Display diagonal | 8.89 cm (3.5") |
| Colour display | Yes |
| Display | LCD |
| Product colour | Black |
| Control type | Buttons, Touch |
| Built-in display | Yes |
| Power | |
| AC adapter output voltage | 24 V |
| AC adapter output current | 3.75 A |
| Power consumption (printing) | 90 W |
| AC input voltage | 100 - 240 V |
| AC input frequency | 50 - 60 Hz |
| Technical details | |
| Product colour | Black |
| Built-in barcodes | 1D, 2D, AZTECCODE, China post, Code 11, Code 128 (A/B/C), Code 39, Code 93, Code-128 Codabar Library, Code128UCC, Datamatrix, EAN128, EAN13, EAN8, GS1 DataBar, Interleaved 2/5, MSI, MaxiCode, PDF417, POSTNET, Plessey, QR Code, TLC39, UPC-A, UPC-E |
| Ribbon width | 11 cm |
| Ribbon length | 450 m |
| Built-in RFID module | Yes |
| Warranty period | 2 year(s) |
| Compliance certificates | BIS, BSMI, CB, CCC, CE, EAC, Federal Communications Commission (FCC), Industry Canada (IC), KC, Norma Oficial Mexicana (NOM), RCM, TÜV mark, UKCA, VCCI, cTUVus |
| Processor | |
| Built-in processor | Yes |
| Operational conditions | |
| Storage temperature (T-T) | 10 - 90 °C |
| Storage relative humidity (H-H) | 25 - 85% |
| Operating temperature (T-T) | -40 - 60 °C |
| Operating relative humidity (H-H) | 0 - 45% |
| Weight & dimensions | |
| Width | 248 mm |
| Depth | 436 mm |
| Height | 274 mm |
| Weight | 9.1 kg |
| Packaging content | |
| Cables included | AC, USB |
| Other features | |
| Warranty period | 2 year(s) |
