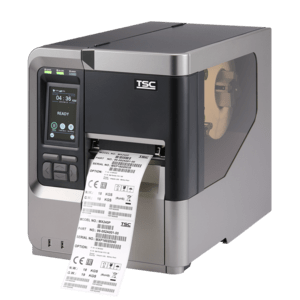

MX341P, 12 dots/mm (300 dpi), disp., RTC, USB, USB Host, RS232, Ethernet
Description
The MX Series industrial thermal printers are ruggedly built for high volume, high quality, label printing. The industrial-grade MX Series was designed to deliver 24x7 high-volume performance. It features a die-cast aluminum print mechanism housed in a very strong yet lightweight cabinet. This design results in a more durable printer that is suited for your most heavy-duty demand cycles.
Specifications
| Print quality |
|---|
| Maximum resolution |
300 x 300 DPI |
| Maximum printing width |
10.4 cm |
| Printing |
|---|
| Rotated printing |
Yes |
| Colour |
No |
| Printing colours |
Black |
| Print speed |
356 mm/sec |
| Maximum resolution |
300 x 300 DPI |
| Maximum printing width |
10.4 cm |
| Print technology |
Direct thermal / Thermal transfer |
| Printable dot numbers |
12 dot |
| Display |
|---|
| Colour display |
Yes |
| Display resolution |
480 x 272 pixels |
| Backlight display |
Yes |
| Display |
LCD |
| Network |
|---|
| Wi-Fi |
No |
| Ethernet LAN |
Yes |
| Memory |
|---|
| Internal memory |
512 MB |
| Flash memory |
512 MB |
| Paper handling |
|---|
| Supported paper width |
104 mm |
| Ribbon width |
11.4 cm |
| Ribbon length |
600 m |
| Media thickness |
20 - 114 mm |
| Maximum media length |
11.4 m |
| Core diameter |
7.62 cm |
| Ports & interfaces |
|---|
| USB 2.0 ports quantity |
1 |
| RS-232 ports |
1 |
| Connectivity technology |
Wired |
| Wi-Fi |
No |
| Ethernet LAN |
Yes |
| USB port |
Yes |
| Performance |
|---|
| Built-in barcodes |
1D, 2D |
| Number of fonts |
8 |
| Ribbon width |
11.4 cm |
| Ribbon length |
600 m |
| Internal memory |
512 MB |
| Flash memory |
512 MB |
| Built-in processor |
Yes |
| Certification |
BIS, CB, CCC, CE Class B, EAC, FCC Class B, KC, TUV, UL, cUL, C-Tick Class B, BSMI, Mexico CoC, Energy Star |
| Page description languages |
DPL, EPL, ZPL, ZPL II |
| Design |
|---|
| Colour display |
Yes |
| Display resolution |
480 x 272 pixels |
| Backlight display |
Yes |
| Display |
LCD |
| Product colour |
Black, Grey |
| Control type |
Buttons, Touch |
| Certification |
BIS, CB, CCC, CE Class B, EAC, FCC Class B, KC, TUV, UL, cUL, C-Tick Class B, BSMI, Mexico CoC, Energy Star |
| Power |
|---|
| AC input voltage |
100 - 240 V |
| AC input frequency |
50/60 Hz |
| Technical details |
|---|
| Product colour |
Black, Grey |
| Built-in barcodes |
1D, 2D |
| Number of fonts |
8 |
| Ribbon width |
11.4 cm |
| Ribbon length |
600 m |
| Processor |
|---|
| Built-in processor |
Yes |
| Certificates |
|---|
| Certification |
BIS, CB, CCC, CE Class B, EAC, FCC Class B, KC, TUV, UL, cUL, C-Tick Class B, BSMI, Mexico CoC, Energy Star |
| Operational conditions |
|---|
| Storage temperature (T-T) |
-40 - 60 °C |
| Storage relative humidity (H-H) |
10 - 90% |
| Operating temperature (T-T) |
0 - 40 °C |
| Operating relative humidity (H-H) |
25 - 85% |
| Weight & dimensions |
|---|
| Width |
300 mm |
| Depth |
510 mm |
| Height |
393 mm |
| Weight |
18 kg |
| Packaging content |
|---|
| Cables included |
AC, USB |
