Description

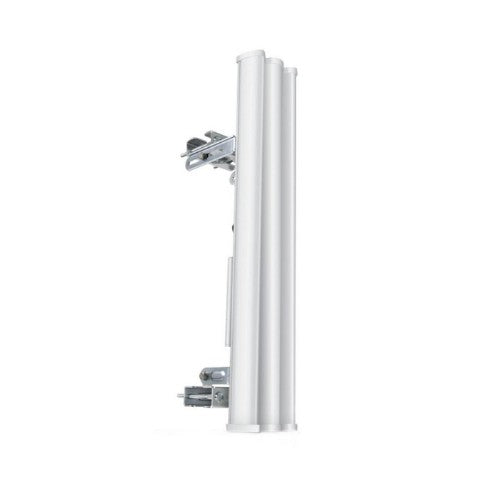

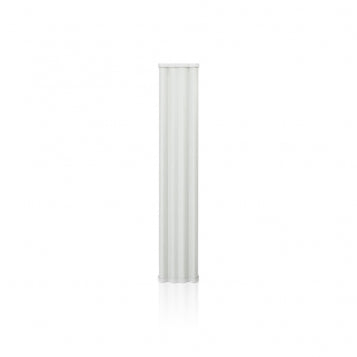

2x2 MIMO BaseStation Sector Antenna, 5 GHz, 20 dBi
The airMAX Sector Antenna is a Carrier Class 2x2 Dual Polarity MIMO Sector Antenna that was designed to seamlessly integrate with RocketM radios (RocketM sold separately). Pair the RocketM’s radio with the airMAX Sector Antenna’s reach to create a powerful basestation. This versatile combination gives network architects unparalleled flexibility and convenience.
Utilize airMAX Technology
Unlike standard Wi-Fi protocol, Ubiquiti’s Time Division Multiple Access (TDMA) airMAX protocol allows each client to send and receive data using pre-designated time slots scheduled by an intelligent AP controller.
This “time slot” method eliminates hidden node collisions and maximizes airtime efficiency. It provides many magnitudes of performance improvements in latency, throughput, and scalability compared to all other outdoor systems in its class.
Intelligent QoS
Priority is given to voice/video for seamless streaming.
Scalability
High capacity and scalability.
Long Distance
Capable of high-speed, carrier-class links
Description
Sector CoverageThe airMAX Sector Antenna is a Carrier Class 2x2 Dual Polarity MIMO Sector Antenna that was designed to seamlessly integrate with RocketM radios (RocketM sold separately). Pair the RocketM’s radio with the airMAX Sector Antenna’s reach to create a powerful basestation. This versatile combination gives network architects unparalleled flexibility and convenience.
Utilize airMAX Technology
Unlike standard Wi-Fi protocol, Ubiquiti’s Time Division Multiple Access (TDMA) airMAX protocol allows each client to send and receive data using pre-designated time slots scheduled by an intelligent AP controller.
This “time slot” method eliminates hidden node collisions and maximizes airtime efficiency. It provides many magnitudes of performance improvements in latency, throughput, and scalability compared to all other outdoor systems in its class.
Intelligent QoS
Priority is given to voice/video for seamless streaming.
Scalability
High capacity and scalability.
Long Distance
Capable of high-speed, carrier-class links
Specifications
| Performance | |
|---|---|
| Antenna gain level (max) | 20.3 dBi |
| Frequency band | 5.15 - 5.85 GHz |
| Vertical beam width (5 GHz) | 2° |
| Vertical beam width | 85° |
| Horizontal beam width (5 GHz) | 4° |
| Horizontal beam width | 91° |
| Features | |
| Antenna type | Sector antenna |
| Voltage Standing Wave Ratio (VSWR) | 1.5:1 |
| Purpose | Outdoor |
| Polarization | Dual polarization |
| Mounting | Wall |
| Product colour | White |
| Antenna gain level (max) | 20.3 dBi |
| Frequency band | 5.15 - 5.85 GHz |
| Vertical beam width (5 GHz) | 2° |
| Vertical beam width | 85° |
| Horizontal beam width (5 GHz) | 4° |
| Horizontal beam width | 91° |
| Certification | EN 302 326 DN2 |
| Certificates | |
| Certification | EN 302 326 DN2 |
| Weight & dimensions | |
| Weight | 5.9 kg |
| Width | 700 mm |
| Depth | 135 mm |
| Height | 70 mm |
| Technical details | |
| Antenna gain level (max) | 20.3 dBi |
| Frequency band | 5.15 - 5.85 GHz |
| Antenna type | Sector antenna |
| Voltage Standing Wave Ratio (VSWR) | 1.5:1 |
| Vertical beam width (5 GHz) | 2° |
| Vertical beam width | 85° |
| Purpose | Outdoor |
| Polarization | Dual polarization |
| Mounting | Wall |
| Horizontal beam width (5 GHz) | 4° |
| Horizontal beam width | 91° |
| Harmonized System (HS) code | 85177100 |
| Colour | |
| Product colour | White |
| Packaging content | |
| Quantity per pack | 1 pc(s) |
| Logistics data | |
| Quantity per pack | 1 pc(s) |
| Harmonized System (HS) code | 85177100 |
