Description

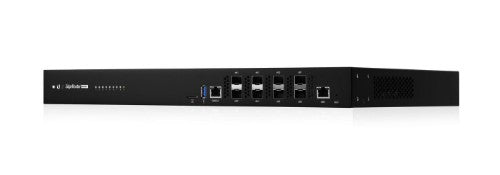

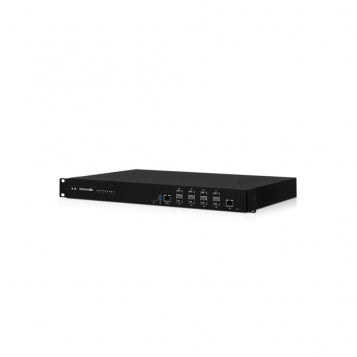

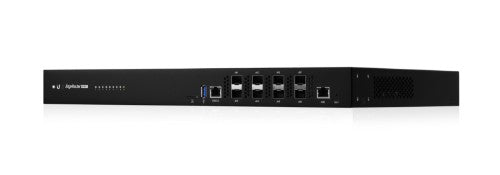

EdgeRouter, 10-Gigabit SFP+

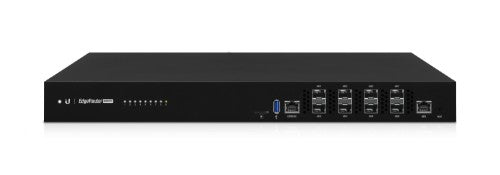

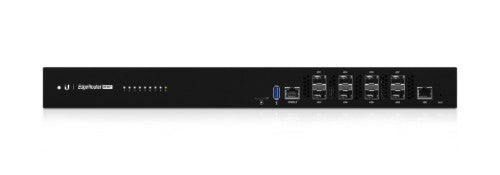

The EdgeRouter Infinity features eight 10G SFP+ ports for fiber connectivity and a Gigabit Ethernet RJ45 port for copper connectivity.
Rackmount Design
The 1U-high metal chassis allows for convenient mounting in a standard-sized, 19"‑wide rack.
Power Versatility

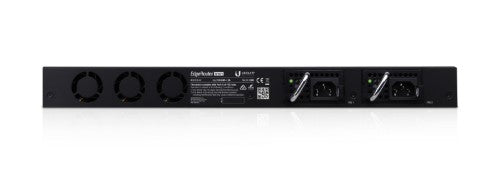

The EdgeRouter Infinity includes two AC/DC power modules – one for backup. An optional DC/DC power module is available for use with DC power.
Centralized Management
The EdgeRouter Infinity is supported and managed by UNMS™ (Ubiquiti® Network Management System), a comprehensive controller with an intuitive UI. A single control plane manages registered EdgeMAX® devices across multiple sites.
Description
10G Routing Technology for the MassesThe EdgeRouter Infinity features eight 10G SFP+ ports for fiber connectivity and a Gigabit Ethernet RJ45 port for copper connectivity.
Rackmount Design
The 1U-high metal chassis allows for convenient mounting in a standard-sized, 19"‑wide rack.
Power Versatility
The EdgeRouter Infinity includes two AC/DC power modules – one for backup. An optional DC/DC power module is available for use with DC power.
Centralized Management
The EdgeRouter Infinity is supported and managed by UNMS™ (Ubiquiti® Network Management System), a comprehensive controller with an intuitive UI. A single control plane manages registered EdgeMAX® devices across multiple sites.
Specifications
| Management features | |
|---|---|
| Reset button | Yes |
| Switch type | Managed |
| Web-based management | Yes |
| Quality of Service (QoS) support | Yes |
| Switch layer | L3 |
| Ports & interfaces | |
| SFP+ module slots quantity | 8 |
| Installed SFP modules quantity | 0 |
| Installed SFP+ modules quantity | 0 |
| Console port | RJ-45 |
| Network | |
| VLAN support | Yes |
| 10G support | Yes |
| Data transmission | |
| Switching capacity | 80 Gbit/s |
| Security | |
| SSH/SSL support | Yes |
| Access Control List (ACL) | Yes |
| DHCP features | DHCP server, DHCP client |
| Protocols | |
| Management protocols | Web UI, CLI (GUI, Console, SSH, Telnet), SNMP, NetFlow, LLDP, NTP, UBNT Discovery Protocol, Syslog |
| Design | |
| Reset button | Yes |
| Form factor | 1U |
| Product colour | Black |
| LED indicators | Status |
| Rack mounting | Yes |
| Number of fans | 3 fan(s) |
| Certification | CE, FCC, IC |
| Performance | |
| Processor frequency | 1800 MHz |
| Memory type | DDR4-SDRAM |
| Internal memory | 16384 MB |
| Flash memory | 4096 MB |
| Built-in processor | Yes |
| Harmonized System (HS) code | 85176990 |
| Power | |
| Power consumption (max) | 100 W |
| AC input voltage | 100 - 240 V |
| Input voltage | 24 V |
| Operational conditions | |
| Operating temperature (T-T) | -5 - 40 °C |
| Operating relative humidity (H-H) | 5 - 95% |
| Virtual LAN features | |
| VLAN support | Yes |
| Weight & dimensions | |
| Width | 442.4 mm |
| Depth | 285.6 mm |
| Height | 43.7 mm |
| Weight | 4.95 kg |
| Packaging content | |
| Manual | Yes |
| Cables included | AC |
| Mounting brackets included | Yes |
| Rubber feet | Yes |
| Screws included | Yes |
| Packaging data | |
| Mounting brackets included | Yes |
| Rubber feet | Yes |
| Screws included | Yes |
| Manual | Yes |
| Cables included | AC |
| Technical details | |
| Form factor | 1U |
| Product colour | Black |
| Processor frequency | 1800 MHz |
| Rack mounting | Yes |
| Built-in processor | Yes |
| Memory | |
| Memory type | DDR4-SDRAM |
| Internal memory | 16384 MB |
| Flash memory | 4096 MB |
| Certificates | |
| Certification | CE, FCC, IC |
| Indication | |
| LED indicators | Status |
| Other features | |
| Input voltage | 24 V |
| Logistics data | |
| Harmonized System (HS) code | 85176990 |
