5 MP CMOS Sensor, 2688 x 1512 (16:9), RJ45, 10/100/1000 Mbps Ethernet, IPX4, IK08
Key Features
- 4MP, 24 FPS Video
- Day or Night with Infrared LEDs
- IPx4 weatherproof Enclosure
- Built-in Microphone & Speaker
- Powered by Power over Ethernet (PoE)
- Managed by UniFi Protect Software
- IK08 vandal resistant
Description

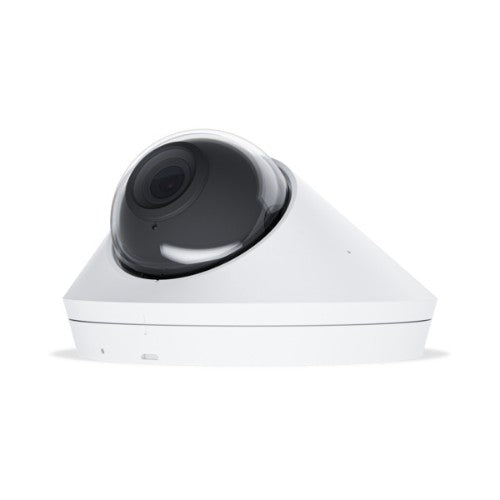

Compact 4MP vandal-resistant (IK08) and weatherproof (IPx4) dome camera with integrated IR LEDs for crystal clear day and night vision.
Specifications
| Performance |
|---|
| Type |
IP security camera |
| Connectivity technology |
Wired |
| Placement supported |
Indoor & outdoor |
| Design |
|---|
| Weatherproof |
Yes |
| IK code |
IK08 |
| Form factor |
Dome |
| Product colour |
White |
| Mounting type |
Ceiling |
| LED indicators |
Yes |
| International Protection (IP) code |
IPX4 |
| Camera |
|---|
| Lens viewing angle, horizontal |
86° |
| Lens viewing angle, vertical |
60° |
| Lens viewing angle, diagonal |
111° |
| Image sensor |
|---|
| Sensor type |
CMOS |
| Number of sensors |
5 |
| Night vision |
|---|
| Night vision |
Yes |
| Video |
|---|
| Maximum resolution |
2688 x 1512 pixels |
| Video formats supported |
H.264 |
| Total megapixels |
5 MP |
| Audio |
|---|
| Built-in speaker(s) |
Yes |
| Network |
|---|
| Ethernet LAN |
Yes |
| Storage |
|---|
| Built-in HDD |
No |
| Ports & interfaces |
|---|
| Ethernet LAN (RJ-45) ports |
1 |
| Connectivity technology |
Wired |
| Power |
|---|
| Power source type |
DC, PoE |
| Power consumption (max) |
5 W |
| Operational conditions |
|---|
| Operating temperature (T-T) |
-20 - 40 °C |
| Operating relative humidity (H-H) |
0 - 90% |
| Weight & dimensions |
|---|
| Height |
64.5 mm |
| Diameter |
10.9 cm |
| Weight |
370 g |
| Weight (with stand) |
390 g |
| Packaging content |
|---|
| Number of cameras |
1 |
| Logistics data |
|---|
| Harmonized System (HS) code |
85258900 |
