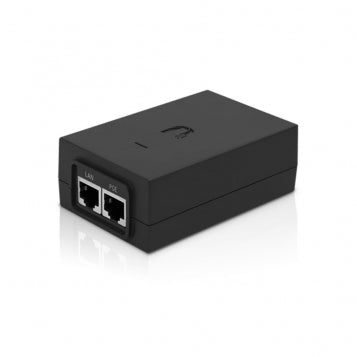

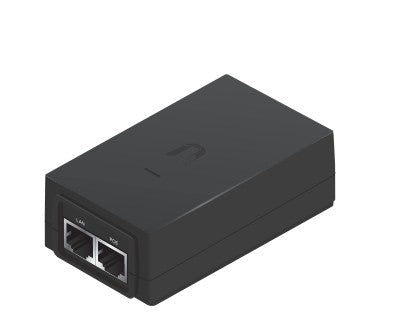

Ubiquiti POE-24-AF5X PoE adapter Gigabit Ethernet 24 V

POE-24-AF5X - 90-260VAC / 47-63 Hz

Description

Ubiquiti Networks offers Power over Ethernet (PoE) Adapters to power a variety of Ubiquiti products. The PoE Adapters are compatible with most Ubiquiti PoE devices, including:
- airFiber®
- airMAX®
- EdgeMAX®
- mFi®
- UniFi® AP
- UniFi Video / airVision®

Protection
Ubiquiti PoE Adapters provide a variety of features to help protect your PoE devices:
- Surge protection
- Clamping protection
- Maximum surge discharge
- Peak pulse current
- AC cable with earth ground

Specifications

Network
Ethernet LAN data rates	10,100,1000 Mbit/s
Ethernet interface type	Gigabit Ethernet
Power over Ethernet (PoE) voltage	24 V
Features
Product colour	Black
Power
Output current	1 A
Power over Ethernet (PoE) voltage	24 V
Input voltage	90 - 260 V
Input frequency	47 - 63 Hz
Input current	0.4/0.6 A
Operational conditions
Storage temperature (T-T)	-30 - 70 °C
Operating temperature (T-T)	0 - 40 °C
Operating relative humidity (H-H)	35 - 95%
Weight & dimensions
Weight	158.5 g
Dimensions (WxDxH)	88 x 57 x 33 mm
Technical details
Input voltage	90 - 260 V
Input frequency	47 - 63 Hz
Input current	0.4/0.6 A
Ethernet LAN data rates	10,100,1000 Mbit/s
Ethernet interface type	Gigabit Ethernet
Harmonized System (HS) code	85044095
Logistics data
Harmonized System (HS) code	85044095
