Description

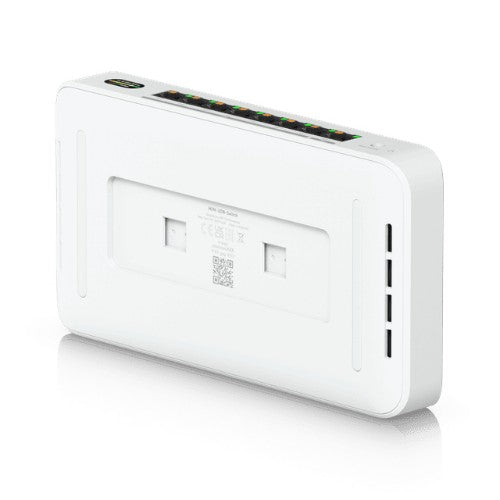

Device Bridge Switch, 1x 10 GbE port, 7x 2.5 GbE ports, WiFi 7
Description
Specifications
| Ports & interfaces | |
|---|---|
| Basic switching RJ-45 Ethernet ports quantity | 7 |
| Basic switching RJ-45 Ethernet ports type | 2.5G Ethernet (100/1000/2500) |
| 10G Ethernet (copper) ports quantity | 1 |
| Network | |
| Networking standards | IEEE 802.11a, IEEE 802.11n, IEEE 802.11be, IEEE 802.11ax, IEEE 802.11ac |
| 10G support | Yes |
| Design | |
| Product colour | White |
| Power | |
| Power consumption (max) | 25 W |
| Power supply included | Yes |
| DC input voltage | 54 V |
| Power source | DC/PoE |
| Power over Ethernet (PoE) | |
| Power over Ethernet (PoE) power per port | 30 W |
| Total Power over Ethernet (PoE) budget | 185 W |
| Power over Ethernet (PoE) | Yes |
| Operational conditions | |
| Operating temperature (T-T) | -30 - 40 °C |
| Operating relative humidity (H-H) | 5 - 95% |
| Weight & dimensions | |
| Width | 212.9 mm |
| Depth | 113 mm |
| Height | 32.5 mm |
| Technical details | |
| Product colour | White |
| Compliance certificates | CE, Federal Communications Commission (FCC), Industry Canada (IC) |
| Certificates | |
| Compliance certificates | CE, Federal Communications Commission (FCC), Industry Canada (IC) |
