Description

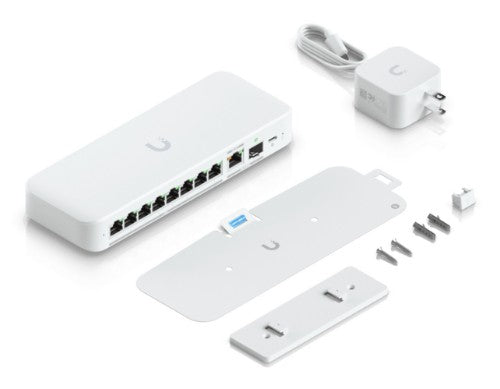

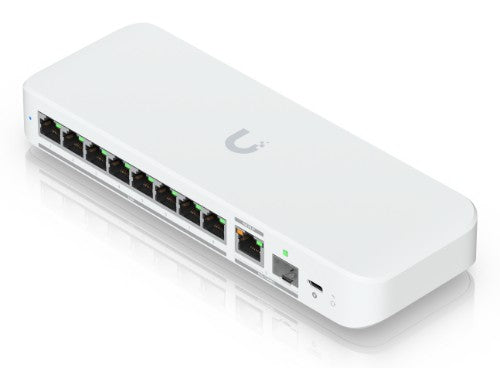

8x 2.5 GbE RJ45, 1x 10 GbE RJ45, 1x 10G SFP+, 60 Gbps, USB Type-C, 5V DC, 3A, 395 g
Description
Flexible, 8-port 2.5 GbE switch with a 10 GbE RJ45/SFP+ combination uplink port that can be powered with a USB-C or PoE+ adapter.Specifications
| Management features | |
|---|---|
| Reset button | Yes |
| Switch type | Managed |
| Multicast support | Yes |
| Switch layer | L2 |
| Ports & interfaces | |
| SFP+ module slots quantity | 1 |
| Basic switching RJ-45 Ethernet ports quantity | 8 |
| Basic switching RJ-45 Ethernet ports type | 2.5G Ethernet (100/1000/2500) |
| Power connector | DC-in jack |
| 2.5G Ethernet (copper) ports quantity | 8 |
| 10G Ethernet (copper) ports quantity | 1 |
| Network | |
| VLAN support | Yes |
| Rate limiting | Yes |
| Port mirroring | Yes |
| Number of VLANs | 256 |
| Flow control support | Yes |
| Ethernet LAN data rates | 10,100,1000,2500 Mbit/s |
| Broadcast storm control | Yes |
| 10G support | Yes |
| Data transmission | |
| MAC address table | 4000 entries |
| Switching capacity | 60 Gbit/s |
| Jumbo frames support | Yes |
| Forwarding rate | 45 Mpps |
| Throughput | 30 Gbit/s |
| Number of VLANs | 256 |
| Security | |
| Loop protection | Yes |
| Multicast features | |
| Multicast support | Yes |
| Design | |
| Wall mountable | Yes |
| Reset button | Yes |
| DIN rail mounting | Yes |
| Form factor | Desktop/Wall-Mounting |
| Product colour | White |
| LED indicators | Activity, Link, PoE, Power, Status |
| Housing material | Polycarbonate (PC) |
| Power | |
| Power consumption (max) | 14 W |
| Power supply included | Yes |
| Input voltage | 4.8-5.2 / 44-57 V |
| Power source | PoE/USB |
| Power connector | DC-in jack |
| Power over Ethernet (PoE) | |
| Power over Ethernet (PoE) power per port | 15.4 W |
| Power over Ethernet plus (PoE+) ports quantity | 1 |
| Total Power over Ethernet (PoE) budget | 196 W |
| Power over Ethernet (PoE) | Yes |
| Power over Ethernet (PoE) type supported | PoE+ |
| Power over Ethernet (PoE) voltage | 57 V |
| Operational conditions | |
| Operating temperature (T-T) | -20 - 45 °C |
| Operating relative humidity (H-H) | 10 - 90% |
| Virtual LAN features | |
| VLAN support | Yes |
| Number of VLANs | 256 |
| Weight & dimensions | |
| Width | 212.9 mm |
| Depth | 76 mm |
| Height | 33.5 mm |
| Weight | 395 g |
| Technical details | |
| Form factor | Desktop/Wall-Mounting |
| Product colour | White |
| Housing material | Polycarbonate (PC) |
| Compliance certificates | CE, Federal Communications Commission (FCC), Industry Canada (IC) |
| Certificates | |
| Compliance certificates | CE, Federal Communications Commission (FCC), Industry Canada (IC) |
| Indication | |
| LED indicators | Activity, Link, PoE, Power, Status |
| Other features | |
| Input voltage | 4.8-5.2 / 44-57 V |
| Ethernet LAN data rates | 10,100,1000,2500 Mbit/s |
