Description
2.4 - 5.85 Ghz, 6 dBi, 700 Mhz, 137x25x74mm, 300g, White

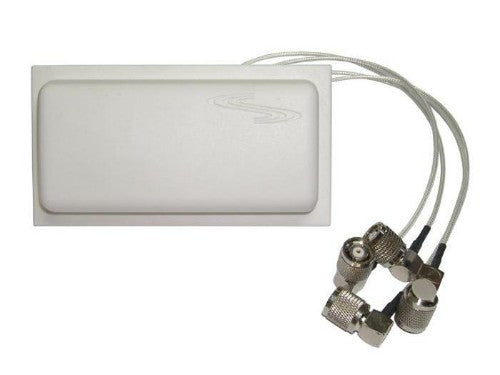

Ventev’s TerraWave 2.4/5 GHz 4/6 dBi Mini Quad Ceiling Wi-Fi Antenna is designed to work with 4-Lead MIMO radios functioning in the 802.11n wireless protocol band. It features four dual band antennas in a single unit. This solution allows engineers to simplifyWi-Fi deployments by using only one antenna for dual band access points.
Description
2.4/5 GHz 4/6 dBi Mini Quad Ceiling Wi-Fi Antenna with Four RA RPTNC Plugs and 18” PigtailsVentev’s TerraWave 2.4/5 GHz 4/6 dBi Mini Quad Ceiling Wi-Fi Antenna is designed to work with 4-Lead MIMO radios functioning in the 802.11n wireless protocol band. It features four dual band antennas in a single unit. This solution allows engineers to simplifyWi-Fi deployments by using only one antenna for dual band access points.
Specifications
| Performance | |
|---|---|
| Bandwidth note | 700 MHz |
| Antenna gain level (max) | 6 dBi |
| Networking standards | IEEE 802.11n |
| Frequency band | 2.4 - 5.85 GHz |
| Impedance | 50 Ω |
| Gain | 4 / 6 dBi |
| Features | |
| Connector gender | Male |
| Antenna gain level (max) | 6 dBi |
| Networking standards | IEEE 802.11n |
| Frequency band | 2.4 - 5.85 GHz |
| Antenna type | Omni-directional antenna |
| Voltage Standing Wave Ratio (VSWR) | 2.5 |
| Purpose | Indoor |
| Polarization | Vertical polarization |
| Mounting | Ceiling |
| Impedance | 50 Ω |
| Gain | 4 / 6 dBi |
| Product colour | White |
| Cable length | 0.45 m |
| Antenna connector type | RP-TNC |
| Technical details | |
| Antenna gain level (max) | 6 dBi |
| Frequency band | 2.4 - 5.85 GHz |
| Antenna type | Omni-directional antenna |
| Voltage Standing Wave Ratio (VSWR) | 2.5 |
| Purpose | Indoor |
| Polarization | Vertical polarization |
| Mounting | Ceiling |
| Impedance | 50 Ω |
| Gain | 4 / 6 dBi |
| Cable length | 0.45 m |
| Antenna connector type | RP-TNC |
| Compliance certificates | RoHS |
| Network | |
| Networking standards | IEEE 802.11n |
| Colour | |
| Product colour | White |
| Operational conditions | |
| Operating temperature (T-T) | -40 - 70 °C |
| Weight & dimensions | |
| Weight | 300 g |
| Width | 137 mm |
| Depth | 25 mm |
| Height | 74 mm |
