MIMO, 802.11n/ac, 2.4/5 GHz, 6 dBi, RPSMA
Description

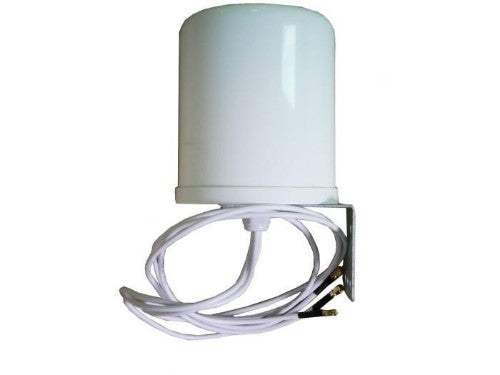

Ventev's TerraWave 6 dBi outdoor multiple-input and multiple-output (MIMO) omnidirectional Wi-Fi antenna is designed to operate enterprise class 802.11n and 802.11ac MIMO access points. With dual-band leads, each cable supports both 2.4 and 5 GHz, making it an ideal and aesthetically pleasing antenna to support demanding outdoor Wi-Fi applications in 802.11n and the newest 802.11ac wireless communication systems. The rugged enclosure makes this antenna perfectly suited for use in a warehouse or manufacturing environment where it must withstand exposure to moisture and dust. Includes an L-Bracket for mast and or wall mounting. Industrial beam clamps are available as an additional option. This antenna is also RoHS compliant.
Specifications
| Performance |
|---|
| Bandwidth note |
700 MHz |
| Antenna gain level (max) |
6 dBi |
| Networking standards |
IEEE 802.11ac, IEEE 802.11n |
| Frequency band |
2.4 - 5 GHz |
| Vertical beam width |
40° |
| Impedance |
50 Ω |
| Horizontal beam width |
360° |
| Gain |
6 dBi |
| Features |
|---|
| Antenna gain level (max) |
6 dBi |
| Networking standards |
IEEE 802.11ac, IEEE 802.11n |
| Frequency band |
2.4 - 5 GHz |
| Antenna type |
MIMO directional antenna |
| Vertical beam width |
40° |
| Purpose |
Indoor & outdoor |
| Power handling |
10 W |
| Polarization |
Vertical polarization |
| Mounting |
Wall/Pole |
| Impedance |
50 Ω |
| Horizontal beam width |
360° |
| Gain |
6 dBi |
| Product colour |
White |
| Antenna connector type |
RP-SMA |
| Technical details |
|---|
| Antenna gain level (max) |
6 dBi |
| Frequency band |
2.4 - 5 GHz |
| Antenna type |
MIMO directional antenna |
| Vertical beam width |
40° |
| Purpose |
Indoor & outdoor |
| Power handling |
10 W |
| Polarization |
Vertical polarization |
| Mounting |
Wall/Pole |
| Impedance |
50 Ω |
| Horizontal beam width |
360° |
| Gain |
6 dBi |
| Antenna connector type |
RP-SMA |
| Compliance certificates |
RoHS |
| Network |
|---|
| Networking standards |
IEEE 802.11ac, IEEE 802.11n |
| Colour |
|---|
| Product colour |
White |
| Weight & dimensions |
|---|
| Weight |
1.66 kg |
