Ethernet over coax converter
Description

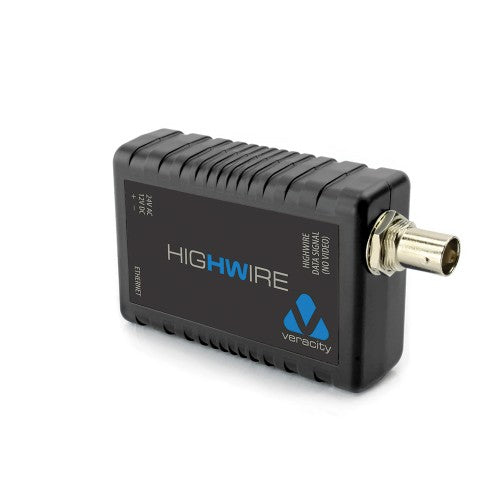

HIGHWIRE Ethernet Over Coax Device (Single Unit). HIGHWIRE turns any analogue video cable into a high-speed network connection, enabling the replacement of analogue cameras with IP cameras without installing any new cabling.
- HIGHWIRE can be powered by legacy 12 Volt DC or 24 Volt AC supplies.

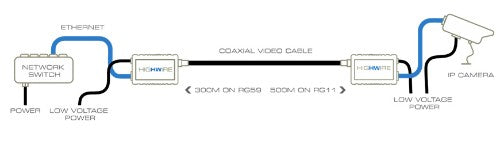

- HIGHWIRE turns any analogue video cable into a high-speed network connection, enabling the replacement of analogue cameras with IP cameras without installing any new cabling or configuration.
- HIGHWIRE can provide a full-duplex 100BASE-T network connection, with no bandwidth restrictions, over 500 metres of RG-11 cable, or over 280 metres of CCTV-grade RG-59 cable.
Specifications
| Technical details |
|---|
| Maximum transfer distance |
500 m |
| Internal |
Yes |
| Harmonized System (HS) code |
85176990 |
| Performance |
|---|
| Auto-negotiation |
Yes |
| Maximum transfer distance |
500 m |
| Network |
|---|
| Auto-negotiation |
Yes |
| Converter input interface |
100Base-T |
| Duplex system |
Full |
| Maximum data transfer rate |
100 Mbit/s |
| Ports & interfaces |
|---|
| BNC ports quantity |
1 |
| Connectivity technology |
Wired |
| Ethernet LAN (RJ-45) ports |
1 |
| Indication |
|---|
| LED indicators |
Yes |
| Design |
|---|
| LED indicators |
Yes |
| Product colour |
Black |
| Certification |
CE, FCC, RoHS |
| Internal |
Yes |
| Power |
|---|
| Power consumption (typical) |
1.5 W |
| Colour |
|---|
| Product colour |
Black |
| Weight & dimensions |
|---|
| Width |
54 mm |
| Depth |
103 mm |
| Weight |
50 g |
| Height |
25 mm |
| Package depth |
130 mm |
| Package width |
75 mm |
| Package height |
33 mm |
| Package weight |
70 g |
| Operational conditions |
|---|
| Operating temperature (T-T) |
-10 - 50 °C |
| Storage relative humidity (H-H) |
0 - 85% |
| Packaging data |
|---|
| Package depth |
130 mm |
| Package width |
75 mm |
| Package height |
33 mm |
| Package weight |
70 g |
| Packaging content |
|---|
| Quick installation guide |
Yes |
| Manual |
Yes |
| Certificates |
|---|
| Certification |
CE, FCC, RoHS |
