Description
RJ45 x 2, USB, 10 BASE-T/100BASE-TX
Install, configure, focus and align IP cameras with a wireless link to
your tablet or smartphone.

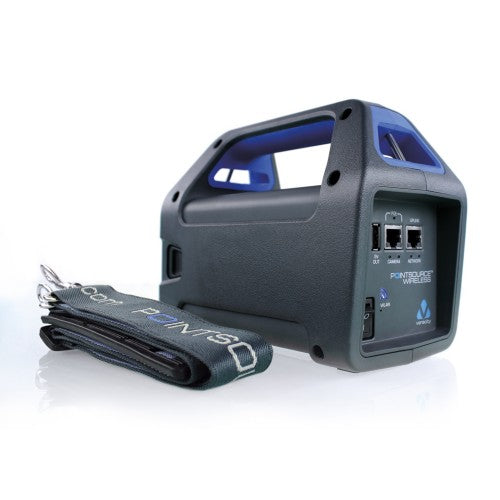

POINTSOURCE Wireless is a battery-powered POE injector, with a wireless network link, designed to allow simple and efficient IP camera installation with live video to smartphones, tablets and laptops.
Description
Portable POE Installation Tool with Wireless LinkInstall, configure, focus and align IP cameras with a wireless link to
your tablet or smartphone.
POINTSOURCE Wireless is a battery-powered POE injector, with a wireless network link, designed to allow simple and efficient IP camera installation with live video to smartphones, tablets and laptops.
Specifications
| Network | |
|---|---|
| Networking standards | IEEE 802.11ac,IEEE 802.11b,IEEE 802.11g,IEEE 802.11n,IEEE 802.3af,IEEE 802.3at |
| Power over Ethernet (PoE) | Yes |
| Ethernet LAN data rates | 10,100 Mbit/s |
| Ethernet interface type | Fast Ethernet |
| Power over Ethernet (PoE) voltage | 48 V |
| Features | |
| Product colour | Black, Blue |
| Networking standards | IEEE 802.11ac,IEEE 802.11b,IEEE 802.11g,IEEE 802.11n,IEEE 802.3af,IEEE 802.3at |
| LED indicators | Yes |
| Certification | EN 55022 Class B, FCC Part 15 Subpart B Class A + B, ICES-003 Class B, VCCI Class B, C-tick S/NZS CISPR 22 Class B, IEC/EN/UL 60950-1, CE, RoHS, REACH, WEEE |
| Ports & interfaces | |
| Ethernet LAN (RJ-45) ports | 2 |
| Other connection | USB Type A |
| Power | |
| Power over Ethernet (PoE) voltage | 48 V |
| Technical details | |
| Number of products included | 1 pc(s) |
| Package width | 190 mm |
| Package length | 29 cm |
| Package height | 270 mm |
| Power over Ethernet (PoE) | Yes |
| Ethernet LAN data rates | 10,100 Mbit/s |
| Ethernet interface type | Fast Ethernet |
| Other connection | USB Type A |
| Operational conditions | |
| Storage temperature (T-T) | -30 - 70 °C |
| Storage relative humidity (H-H) | 20 - 85% |
| Operating temperature (T-T) | 0 - 50 °C |
| Weight & dimensions | |
| Package weight | 3.2 kg |
| Package width | 190 mm |
| Package length | 29 cm |
| Package height | 270 mm |
| Weight | 2.2 kg |
| Dimensions (WxDxH) | 100 x 205 x 150 mm |
| Packaging data | |
| Package weight | 3.2 kg |
| Package width | 190 mm |
| Package length | 29 cm |
| Package height | 270 mm |
| Packaging content | |
| Power cord included | Yes |
| Quick installation guide | Yes |
| Manual | Yes |
| Number of products included | 1 pc(s) |
| Certificates | |
| Certification | EN 55022 Class B, FCC Part 15 Subpart B Class A + B, ICES-003 Class B, VCCI Class B, C-tick S/NZS CISPR 22 Class B, IEC/EN/UL 60950-1, CE, RoHS, REACH, WEEE |
| Indication | |
| LED indicators | Yes |
