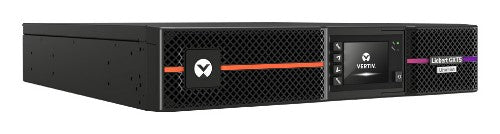

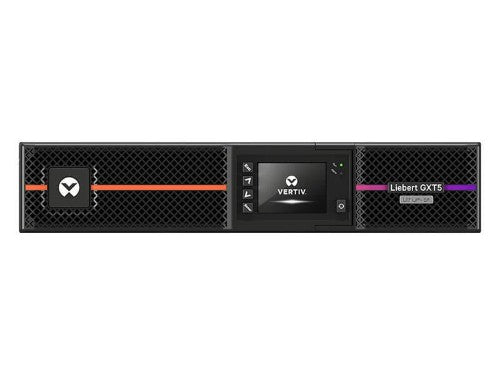

Vertiv Liebert GXT5 Lithium-Ion Online UPS 1000 VA/1000 W 230 V Rack/Tower

Liebert GXT5 Lithium-Ion Online UPS 1000 VA/1000 W 230 V Rack/Tower Convertible with (8) IEC C13 Outlets, Intellislot, RDU120 Networkcard and Extended Runtime Capability (GXT5LI-1000IRT2UXLN)

Key Features

• Lithium-Ion UPS batteries last up to 3x longer than traditional VRLA batteries; with 5-year warranty on UPS and batteries
• Offers lowest total cost of ownership (TCO) with fewer or no battery replacements over its lifetime
• Environmentally friendly UPS reduces battery disposal and recycling with lower replacement rates
• The 1 kVA UPS offers longer runtime and faster recharge time
• Add 1U external battery cabinet units to power the UPS for scalable runtime

Description

The Vertiv Liebert GXT5 Lithium-Ion UPS protects critical IT applications against outages and various power disturbances. This online UPS offers the highest level of power conditioning and battery backup in server rooms, network closets, and other edge or distributed IT locations. Lithium LFB batteries require fewer battery replacements and last up to 3x as long as traditional VRLA batteries reducing maintenance, labor, and replacement costs (resulting in the lowest TCO). Internal batteries offer industry-leading runtime (up to 14 minutes at full load (varies by model)) to protect critical equipment during an unexpected power loss. They offer better performance at higher temperatures, supports up to 10 times more discharge cycles, and delivers faster recharge times compared to VRLA batteries. Hot-swappable, user-replaceable batteries may increase the useable life of the UPS by allowing you to easily replace the batteries, if needed, without disrupting power to connected equipment.

Specifications

Power
Output power factor	0.9
Output power	1000 W
Input operation voltage (min)	115 V
Input operation voltage (max)	288 V
Output operation voltage (min)	200 V
Output operation voltage (max)	240 V
Efficiency	95%
Emergency Power Off (EPO)	Yes
Output power capacity	1 kVA
Efficiency (ECO mode)	98%
ECO mode	Yes
Performance
UPS topology	Double-conversion (Online)
Waveform	Pure sine
Surge protection	Yes
Power protection features	Over voltage, Under voltage
Noise level	48 dB
Features
UPS topology	Double-conversion (Online)
Waveform	Pure sine
Output power factor	0.9
Output power	1000 W
Input operation voltage (min)	115 V
Input operation voltage (max)	288 V
Output operation voltage (min)	200 V
Output operation voltage (max)	240 V
Efficiency	95%
Surge protection	Yes
Emergency Power Off (EPO)	Yes
Power protection features	Over voltage, Under voltage
Noise level	48 dB
Output power capacity	1 kVA
Efficiency (ECO mode)	98%
ECO mode	Yes
Input frequency	40 - 70 Hz

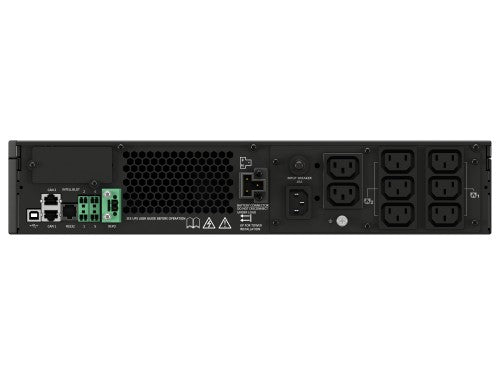

Ports & interfaces
USB port	Yes
Serial interface	Yes
AC outlets quantity	8 AC outlet(s)
AC outlet types	C13 coupler
Serial ports quantity	1
Battery
Battery technology	Lithium-Ion (Li-Ion)
Battery recharge time	2 h
Typical backup time at half load	26.5 min
Typical backup time at full load	12 min
Hot-swap battery	Yes
Design
Rack capacity	2U
Form factor	Tower
Product colour	Black
Display type	LCD
Operational conditions
Operating temperature (T-T)	0 - 40 °C
Storage temperature (T-T)	-20 - 60 °C
Operating relative humidity (H-H)	0 - 95%
Operating altitude	0 - 3000 m
Technical details
Compliance certificates	REACH, RoHS, WEEE
Certificates
Compliance certificates	REACH, RoHS, WEEE
Weight & dimensions
Package width	570 mm
Package depth	597 mm
Package height	242 mm
Weight	16 kg
Width	430 mm
Package weight	21 kg
Height	85 mm
Depth	446 mm
Battery weight	5.9 kg
Packaging data
Package width	570 mm
Package depth	597 mm
Package height	242 mm
Package weight	21 kg
