650 W, ATX, ATX 12V, 200 - 240 V, 1.27 kg, 150 x 140 x 85 mm
Description

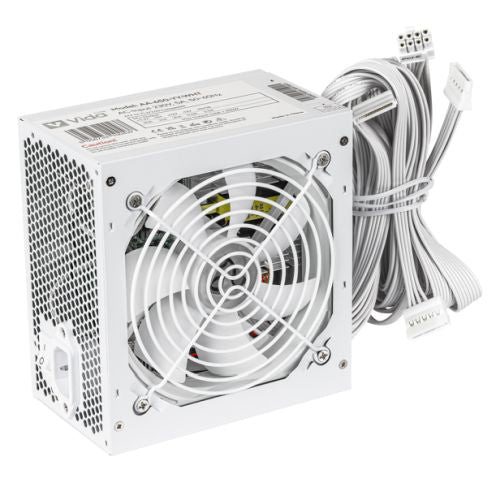

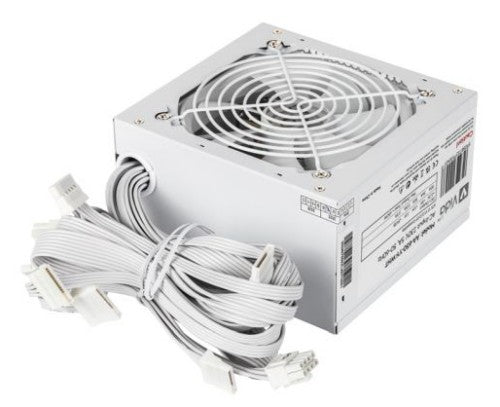

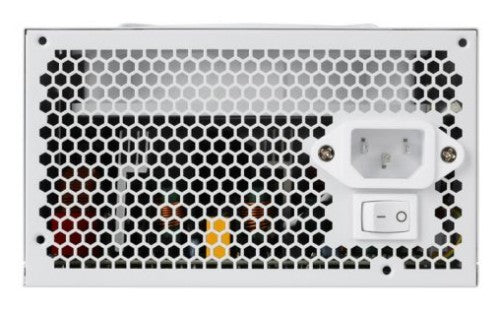

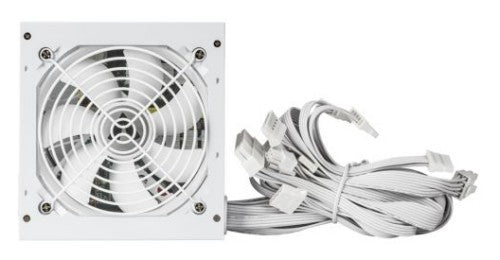

Experience power in its prime with the Vida Lite 650W PSU (Model AA-650-YY) – where performance meets precision! This ATX marvel unleashes a commanding 650 watts of energy, ensuring your system stays charged and ready for every power surge. With a fully wired design for a direct and steadfast connection, and an ultra-quiet 120mm black fan for cool efficiency, this powerhouse is the epitome of reliability. Featuring connectors that plug into perfection, including 20+4 pin, SATA, and PCIe, it harmonizes seamlessly with ATX 12V systems for an electrifying performance. Light up your setup with the Lite 650W PSU – it's the energy boost your rig deserves. Backed by a 1-year warranty, Vida's Lite 650W PSU is the beacon of power proficiency, lighting the way to an unstoppable computing experience.
Specifications
| Cooling |
|---|
| Fan diameter |
12 cm |
| Number of fans |
1 fan(s) |
| Fan location |
Front |
| Performance |
|---|
| On/off switch |
Yes |
| Power supply unit (PSU) form factor |
ATX |
| 80 PLUS certification |
No |
| ATX version |
1.3 |
| Country of origin |
China |
| Bearing technology |
Hydraulic |
| Design |
|---|
| 80 PLUS certification |
No |
| Product colour |
White |
| Fan diameter |
12 cm |
| On/off switch |
Yes |
| Number of fans |
1 fan(s) |
| Fan location |
Front |
| Country of origin |
China |
| Power |
|---|
| Total power |
650 W |
| Peak power |
650 W |
| AC input voltage |
200 - 240 V |
| AC input frequency |
50/60 Hz |
| Power Factor Correction (PFC) type |
Passive |
| Max output current (+3.3V) |
30 A |
| Max output current (+12V) |
30 A |
| Max output current (+5V) |
36 A |
| Max output current (-12V) |
0.5 A |
| Max output current (+5Vsb) |
2.5 A |
| Power protection features |
Over power |
| Ports & interfaces |
|---|
| Motherboard power cable length |
55 cm |
| SATA power cable length |
800,1000 mm |
| Peripheral (Molex) power cable length |
800,1000 mm |
| PCI Express power cable length |
61 cm |
| CPU power cable length |
58 cm |
| Motherboard power connector |
24-pin ATX |
| Number of SATA power connectors |
6 |
| PCI Express power connectors (6+2 pin) |
1 |
| CPU power connector (4+4 pin) |
Yes |
| PCI Express connector |
Yes |
| Floppy drive power connector |
1 |
| Floppy disk drive connector |
Yes |
| ATX Power connector (24-pin) |
Yes |
| Cabling type |
Non-Modular |
| EPS power connector (4+4 pin) |
Yes |
| Certificates |
|---|
| Compliance certificates |
UKCA, CE, RoHS |
| 80 PLUS certification |
No |
| Weight & dimensions |
|---|
| Width |
150 mm |
| Depth |
85 mm |
| Height |
140 mm |
| Weight |
1.27 kg |
| Packaging data |
|---|
| Package depth |
92 mm |
| Package width |
195 mm |
| Package height |
160 mm |
| Package type |
Box |
| Package weight |
1.5 kg |
| Technical details |
|---|
| Compliance certificates |
UKCA, CE, RoHS |
| Logistics data |
|---|
| Country of origin |
China |
