Description

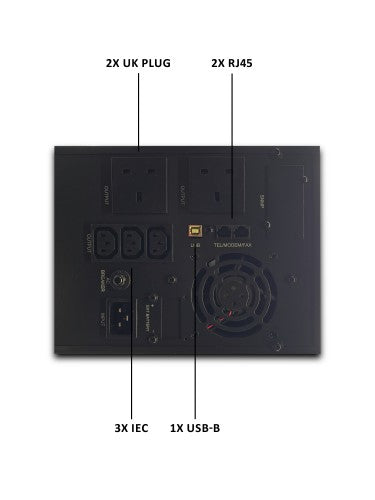

3000VA UPS, 2400W, LCD Display, 2x UK Plug, 2x RJ45, 3x IEC, USB, Brown Box
Key Features
- Pure sine wave output
- DSP digital control
- Boost and buck AVR for voltage stabilization
- Auto sensing frequency
- Adjustable charging current and battery shutdown point
- Settable ECO mode and no-load shutdown
- Humanized alarm system
- Power-on self test
- Cold start
- Auto restart when mains power is restored
- Intelligent battery management
- Short circuit and overload protection
- Automatic charging in OFF mode
- USB & RJ45, AS400 / SNMP (optional) communication port
- Relay automatic circuit cut off switch
Description
Specifications
| Power | |
|---|---|
| Output power | 2400 W |
| Input operation voltage (min) | 230 V |
| Input operation voltage (max) | 240 V |
| Output operation voltage (min) | 230 V |
| Output operation voltage (max) | 240 V |
| Output power capacity | 3 kVA |
| Performance | |
| UPS topology | Line-Interactive |
| Waveform | Pure sine |
| Surge protection | Yes |
| Power protection features | Over voltage, Under voltage |
| Noise level | 50 dB |
| Audible alarm(s) | Yes |
| Transfer time (Line Mode to Battery Mode) | 8 ms |
| Features | |
| Country of origin | China |
| UPS topology | Line-Interactive |
| Waveform | Pure sine |
| Output power | 2400 W |
| Input operation voltage (min) | 230 V |
| Input operation voltage (max) | 240 V |
| Output operation voltage (min) | 230 V |
| Output operation voltage (max) | 240 V |
| Surge protection | Yes |
| Power protection features | Over voltage, Under voltage |
| Noise level | 50 dB |
| Audible alarm(s) | Yes |
| Output power capacity | 3 kVA |
| Transfer time (Line Mode to Battery Mode) | 8 ms |
| Package type | Box |
| Ports & interfaces | |
| USB port | Yes |
| AC outlets quantity | 5 AC outlet(s) |
| AC outlet types | C14 coupler, Type G (BS 1363) |
| Power plug | Type G |
| Ethernet LAN (RJ-45) ports | 2 |
| USB port type | USB Type-B |
| Battery | |
| Number of batteries supported | 4 |
| Battery voltage | 12 V |
| Battery capacity | 9 Ah |
| Battery technology | Sealed Lead Acid (VRLA) |
| Battery recharge time | 8 h |
| Cold start | Yes |
| Number of batteries included | 4 pc(s) |
| Design | |
| Country of origin | China |
| Form factor | Desktop |
| Product colour | Black |
| Display type | LCD |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 40 °C |
| Operating relative humidity (H-H) | 20 - 90% |
| Technical details | |
| Compliance certificates | UKCA, CE |
| Certificates | |
| Compliance certificates | UKCA, CE |
| Packaging content | |
| Cables included | USB cable |
| Manual | Yes |
| Weight & dimensions | |
| Package type | Box |
| Package width | 238 mm |
| Package depth | 305 mm |
| Package height | 550 mm |
| Weight | 23.1 kg |
| Width | 158 mm |
| Package weight | 25 kg |
| Height | 222 mm |
| Depth | 460 mm |
| Packaging data | |
| Cables included | USB cable |
| Manual | Yes |
| Package type | Box |
| Package width | 238 mm |
| Package depth | 305 mm |
| Package height | 550 mm |
| Package weight | 25 kg |
| Logistics data | |
| Country of origin | China |
