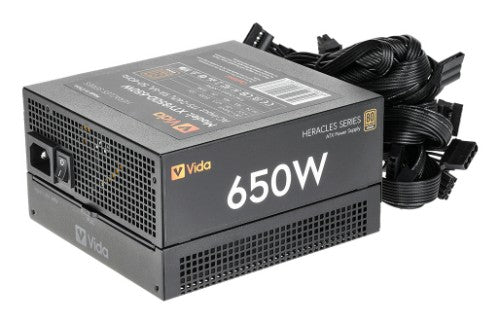

650W Heracles Black ATX Gaming PSU, 80+ Bronze, 140mm Ultra-Quiet FDM Fan, Flat Black Cables, Power Lead Not Included
Description

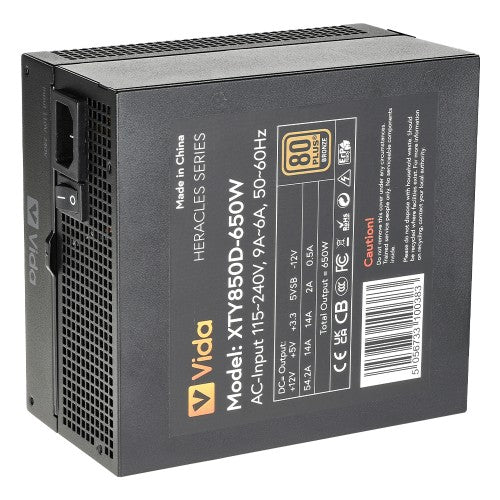

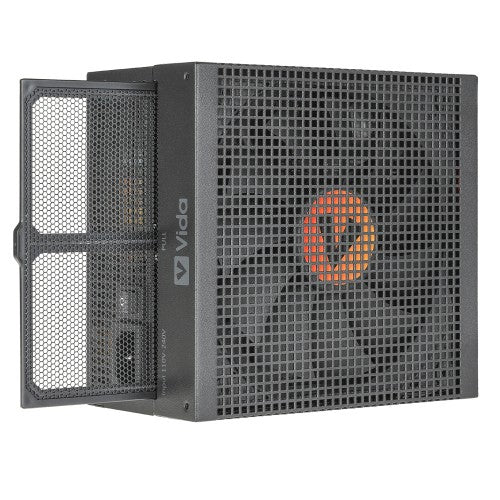

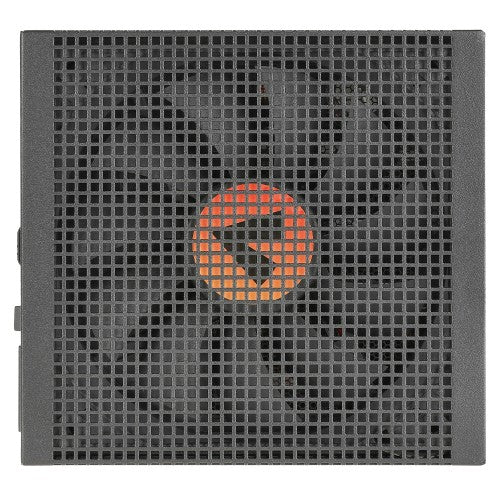

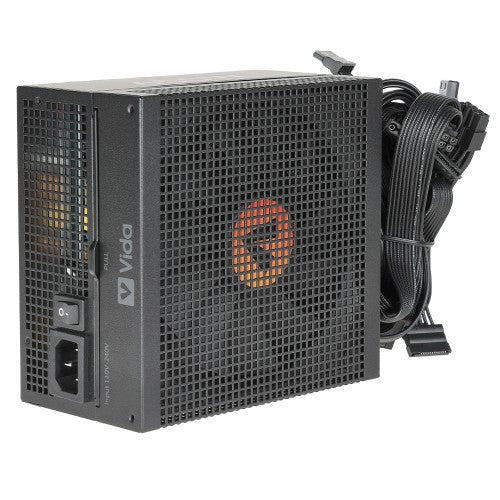

Elevate your PC's performance with the Heracles 650W Bronze power supply (XTY850D-650W). Designed for ATX 12V compatibility, this fully wired unit delivers 650 watts of reliable power. It comes equipped with essential connectors, including SATA and PCIe, and features an ultra-quiet 140mm black fan with fluid/hydraulic bearing for efficient cooling and stable performance. One standout feature is the removable dust filter, which helps maintain optimal airflow and prolongs the power supply's lifespan. With an 80+ Bronze certification, the Vida 650W Heracles power supply balances power efficiency and reliability, all backed by a 2-year warranty for your peace of mind.
Specifications
| Cooling |
|---|
| Fan diameter |
14 cm |
| Number of fans |
1 fan(s) |
| Fan location |
Front |
| Cooling type |
Active |
| Performance |
|---|
| On/off switch |
Yes |
| Power supply unit (PSU) form factor |
ATX |
| 80 PLUS certification |
80 PLUS Bronze |
| Purpose |
PC |
| ATX version |
2.54 |
| Country of origin |
China |
| Bearing technology |
Hydro bearing |
| Removable filter |
Yes |
| Design |
|---|
| 80 PLUS certification |
80 PLUS Bronze |
| Product colour |
Black |
| Fan diameter |
14 cm |
| On/off switch |
Yes |
| Number of fans |
1 fan(s) |
| Illumination |
No |
| Fan location |
Front |
| Country of origin |
China |
| Cooling type |
Active |
| Power |
|---|
| Total power |
650 W |
| AC input voltage |
115 - 240 V |
| AC input frequency |
50/60 Hz |
| Input current |
9-6 A |
| Power Factor Correction (PFC) type |
Active |
| Max output current (+3.3V) |
14 A |
| Max output current (+12V) |
54.2 A |
| Max output current (+5V) |
14 A |
| Max output current (-12V) |
0.5 A |
| Max output current (+5Vsb) |
2 A |
| Power protection features |
Over voltage |
| Efficiency |
85% |
| Number of +12V rail(s) |
1 |
| Ports & interfaces |
|---|
| Motherboard power cable length |
55 cm |
| SATA power cable length |
690 mm |
| Peripheral (Molex) power cable length |
690 mm |
| PCI Express power cable length |
55 cm |
| CPU power cable length |
65 cm |
| Motherboard power connector |
20+4 pin ATX |
| Number of SATA power connectors |
6 |
| Number of PATA power connectors |
3 |
| Peripheral (Molex) power connectors (4-pin) |
3 |
| PCI Express power connectors (6+2 pin) |
4 |
| CPU power connector (4+4 pin) |
Yes |
| PCI Express connector |
Yes |
| Floppy disk drive connector |
No |
| Cabling type |
Non-Modular |
| EPS power connector (4+4 pin) |
Yes |
| Number of SATA power cables |
2 |
| Certificates |
|---|
| Compliance certificates |
CB, CE, China Compulsory Certification (CCC), Federal Communications Commission (FCC), RoHS, UKCA |
| 80 PLUS certification |
80 PLUS Bronze |
| Weight & dimensions |
|---|
| Width |
160 mm |
| Depth |
86 mm |
| Height |
150 mm |
| Weight |
1.75 kg |
| Packaging data |
|---|
| Package depth |
295 mm |
| Package width |
200 mm |
| Package height |
140 mm |
| Package type |
Box |
| Package weight |
2 kg |
| Technical details |
|---|
| Warranty period |
2 year(s) |
| Compliance certificates |
CB, CE, China Compulsory Certification (CCC), Federal Communications Commission (FCC), RoHS, UKCA |
| Logistics data |
|---|
| Country of origin |
China |
| Warranty period |
2 year(s) |
