Description
HDBaseT Extender Set (Transmitter & Receiver), 70m max, 4K, HDMI over CAT6A
HDMI over CAT6A
Key Features
- Support up to 4K@60Hz 4:2:0 video signal transmission
- Max transmission distance is 4K 131ft (40m) and 1080P 230ft (70m) over single CAT5e/CAT6 cable
- High Bandwidth: 10.2Gbps
- HDTV Compatible, HDMI1.4 and HDCP compliant
- Support PoC & CEC
- Use HDBaseT technology for extended capability and reliability
- Bi-directional IR control
- LED indicators showing work status
- HDMI over CAT6A
Description
Transmitter and Receiver. VL120007 is a HDBaseT extender for HDMI and bi-directional IR signals, which contains a transmitter (VL120007T) and a receiver (VL120007R). It transmits 4K signal up to 131ft (40m), 1080P signal up to 230ft (70m) over single Cat5e/Cat6 cable. The extender set supports PoC function, meaning only one power supply is needed.HDMI over CAT6A

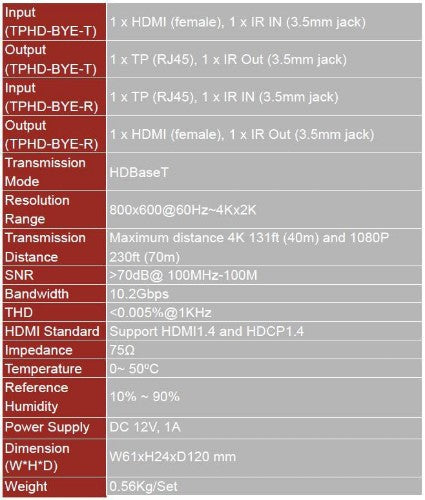

Specifications
| Features | |
|---|---|
| Wall mountable | Yes |
| IR pass-through | Yes |
| HDCP & EDID bypass | Yes |
| Consumer Electronics Control (CEC) support | Yes |
| 3D | Yes |
| Impedance | 75 Ω |
| HDBaseT certified | Yes |
| Remote control type | IR |
| Type | AV transmitter & receiver |
| Maximum resolution | 4096 x 2160 pixels |
| Cable types supported | Cat5e |
| Maximum transfer distance | 70 m |
| Supported video modes | 3840p |
| LED indicators | Yes |
| Bandwidth | 10.2 Gbit/s |
| Product colour | Black |
| HDCP pass-through | Yes |
| CEC pass-through | Yes |
| Technical details | |
| Wall mountable | Yes |
| IR pass-through | Yes |
| HDCP & EDID bypass | Yes |
| Consumer Electronics Control (CEC) support | Yes |
| 3D | Yes |
| Impedance | 75 Ω |
| HDBaseT certified | Yes |
| Remote control type | IR |
| Type | AV transmitter & receiver |
| Maximum resolution | 4096 x 2160 pixels |
| Cable types supported | Cat5e |
| Maximum transfer distance | 70 m |
| Video out | 1 |
| Video in | 1 |
| Supported video modes | 3840p |
| Bandwidth | 10.2 Gbit/s |
| Product colour | Black |
| Connectivity technology | Wired |
| Audio support | Yes |
| Ports & interfaces | |
| Remote (IR) output | 1 |
| Remote (IR) input | 1 |
| RJ-45 input ports | 1 |
| RJ-45 output ports | 1 |
| HDMI in | 1 |
| Number of HDMI outputs | 1 |
| HDMI version | 1.4 |
| Video out | 1 |
| Video in | 1 |
| DC-in jack | Yes |
| Connectivity technology | Wired |
| Power | |
| Power over Ethernet (PoE) | No |
| Power consumption (transmitter) (max) | 9.6 W |
| Power consumption (receiver) (max) | 9.6 W |
| Output current | 1 A |
| Operating voltage (transmitter) | 12 V |
| Operating voltage (receiver) | 12 V |
| AC input voltage | 100 - 240 V |
| AC input frequency | 50/60 Hz |
| External power adapter | Yes |
| Indication | |
| LED indicators | Yes |
| Operational conditions | |
| Operating relative humidity (H-H) | 10 - 90% |
| Operating temperature (T-T) | 0 - 50 °C |
| Weight & dimensions | |
| Width | 196 mm |
| Transmitter dimensions (WxDxH) | 61 x 120 x 24 mm |
| Package depth | 132 mm |
| Height | 111 mm |
| Depth | 132 mm |
| Package width | 196 mm |
| Package height | 111 mm |
| Weight | 450 g |
| Package weight | 552 g |
| Packaging data | |
| Package depth | 132 mm |
| Package width | 196 mm |
| Package height | 111 mm |
| Package weight | 552 g |
| Packaging content | |
| IR receiver included | No |
| IR blaster included | No |
| Mounting brackets included | Yes |
| AC adapter included | Yes |
| Included power plug types | EU |
