Description
Video Capture Device
Description

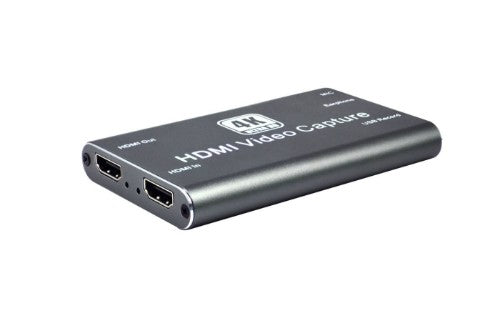

The VLCAPTURE1 is a HDMI to USB video capture device. It is designed to capture video and audio signals from HDMI source, and the captured video and audio can be saved to the PC/Laptop through supplied USB cableSpecifications
| Performance | |
|---|---|
| Internal | No |
| Host interface | HDMI |
| Video capture resolution (max) | 1920 x 1080 pixels |
| Plug and Play | Yes |
| LED indicators | Power |
| Product colour | Silver |
| Technical details | |
| Package width | 161 mm |
| Package height | 40 mm |
| Internal | No |
| Host interface | HDMI |
| Video capture resolution (max) | 1920 x 1080 pixels |
| Plug and Play | Yes |
| Product colour | Silver |
| Harmonized System (HS) code | 85176990 |
| Audio | |
| Audio support | Yes |
| File formats | |
| Video compression formats | MPEG4 |
| Converter type | Format converter |
| Ports & interfaces | |
| HDMI in | 1 |
| Number of HDMI outputs | 1 |
| Audio (L/R) in | 1 |
| Headphone outputs | 1 |
| HDMI ports quantity | 2 |
| USB version | 3.2 Gen 1 (3.1 Gen 1) |
| USB port | Yes |
| USB connector type | USB Type-A |
| Power | |
| Power supply type | USB |
| Software | |
| Mac compatibility | Yes |
| Windows operating systems supported | Yes |
| Linux operating systems supported | Yes |
| Operational conditions | |
| Operating temperature (T-T) | -5 - 55 °C |
| Storage temperature (T-T) | -25 - 70 °C |
| Storage relative humidity (H-H) | 10 - 90% |
| Indication | |
| LED indicators | Power |
| Weight & dimensions | |
| Width | 102 mm |
| Depth | 61 mm |
| Height | 13 mm |
| Weight | 75 g |
| Other features | |
| Power requirements | USB3.0 |
| Video in | HDMI |
| Maximum resolution | 3840 x 2160 pixels |
| Dimensions (WxDxH) | 102 x 61 x 13 mm |
| Packaging data | |
| Package width | 161 mm |
| Package height | 40 mm |
| Package weight | 164 g |
| Package depth | 130 mm |
| Packaging content | |
| Quantity | 1 |
| Cables included | USB Type-A |
| User guide | Yes |
| Manual | Yes |
| Logistics data | |
| Harmonized System (HS) code | 85176990 |
