Description
HDBT 2.0 splitter 1x4 with loop
Reveiver unit to this model is: VLHDMIMAT4X444-R
Key Features
- Integrated with HDBaseT technology, 4K@60Hz 4:4:4 supported
- 4 HDBaseT outputs with PoH at 230ft (70m)
- Analog balanced/unbalanced + digital audio output
- One HDMI output for local monitor or loop to next box
- RS232 & Bi-directional IR to control display
- Smart EDID management to avoid the display issue
- LEDs for status checking
- 4 x 3.5mm IR input jacks for connecting the four IR receivers
Description

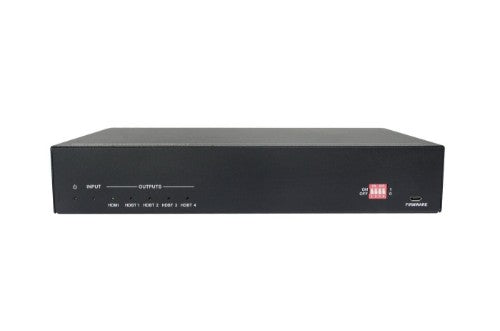

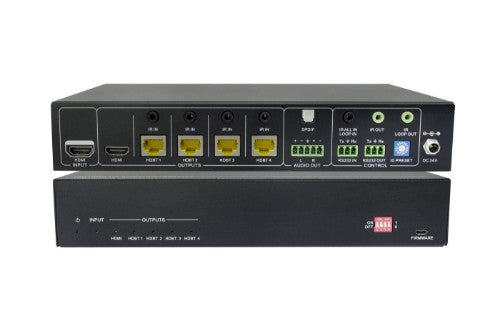

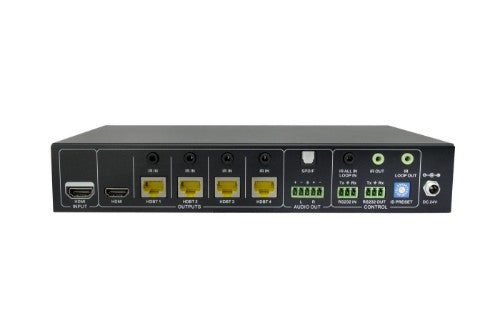

VLHDBSP1X4V2 is a 4K HDBaseT splitter with 4 HDBaseT plus 1 HDMI outputs. It distributes HDMI signal via CAT cable at 230ft (70m) with PoC, and enables IR and RS232 pass-through to control the remote displays. Build in audio de-embedder.Reveiver unit to this model is: VLHDMIMAT4X444-R
Specifications
| Ports & interfaces | |
|---|---|
| Video ports quantity | 5 |
| Video port type | HDMI |
| Video out | 4x RJ-45 |
| Video in | 1 x HDMI |
| HDMI version | 1.4 |
| Ethernet LAN (RJ-45) ports | 4 |
| DC-in jack | Yes |
| Ethernet LAN | No |
| Features | |
| Rack mounting | No |
| Housing material | Metal |
| Maximum refresh rate | 60 Hz |
| Maximum resolution | 3840 x 2160 pixels |
| HDCP | Yes |
| Power LED | Yes |
| Plug and Play | Yes |
| Maximum operating distance | 70 m |
| Easy to install | Yes |
| Product colour | Black |
| 3D | Yes |
| HD type | 4K Ultra HD |
| Network | |
| Ethernet LAN | No |
| Power | |
| Output voltage | 24 V |
| AC input voltage | 110 - 240 V |
| Weight & dimensions | |
| Weight | 500 g |
| Dimensions (WxDxH) | 220 x 148 x 44 mm |
| Width | 220 mm |
| Depth | 148 mm |
| Height | 44 mm |
| Package weight | 1.59 kg |
| Packaging data | |
| Package weight | 1.59 kg |
| Packaging content | |
| AC adapter included | Yes |
| User guide | Yes |
| Video | |
| Maximum refresh rate | 60 Hz |
| Maximum resolution | 3840 x 2160 pixels |
| HDCP | Yes |
| 3D | Yes |
| Colour | |
| Product colour | Black |
| Indication | |
| Power LED | Yes |
| Technical details | |
| Rack mounting | No |
| Maximum cable length | 70 m |
| Housing material | Metal |
| Connection to PC | Yes |
| Cascadable | Yes |
| Video out | 4x RJ-45 |
| Video in | 1 x HDMI |
| Plug and Play | Yes |
| Maximum operating distance | 70 m |
| HDMI version | 1.4 |
| Easy to install | Yes |
| Connector type | HDMI + RJ45 |
