Description

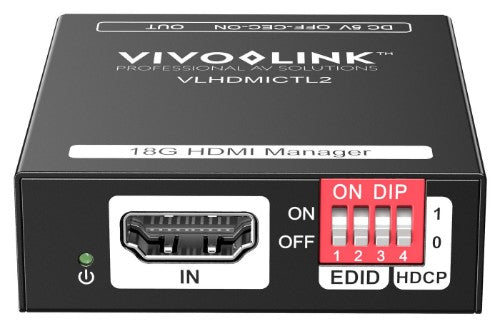

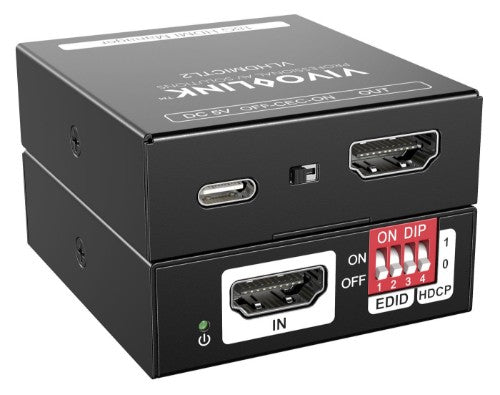

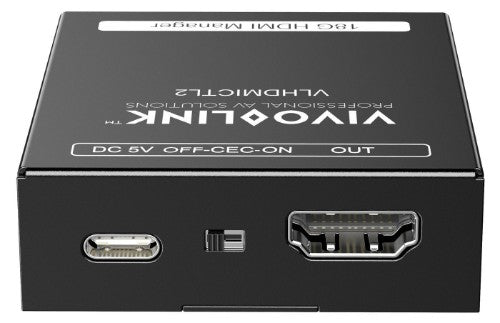

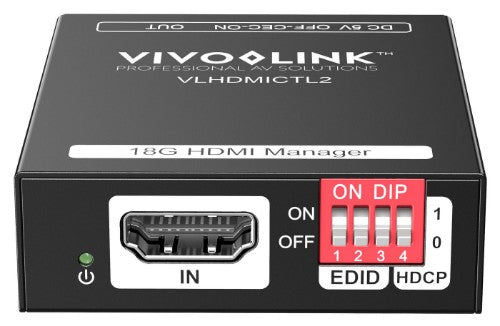

18G HDMI EDID Manager

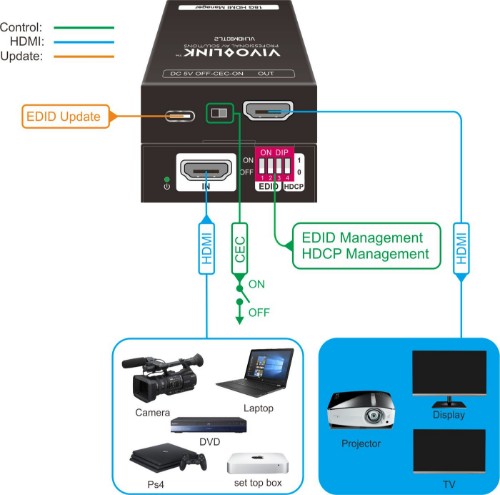

VLHDMICLT2 can be used to control signal resolutions and sound settings from signal sources. The settings can easy be configured via DIP switches in the front.
HDCP control via DIP switch (set unit as non HDCP compliant) can improve compatibility when several of products are connected.
The CEC pass-through can be turned on/off by DIP switch
Key Features
- Support 18Gbit 4K@60Hz 4:4:4
- HDCP2.2
- management via DIP switches
- CEC pass-through control
- Powered over HDMI
- HDCP management
Description
VLHDMICLT2 is a very useful HDMI EDID manager.VLHDMICLT2 can be used to control signal resolutions and sound settings from signal sources. The settings can easy be configured via DIP switches in the front.
HDCP control via DIP switch (set unit as non HDCP compliant) can improve compatibility when several of products are connected.
The CEC pass-through can be turned on/off by DIP switch
Specifications
| Features | |
|---|---|
| Maximum video resolution | 3840 x 2160 pixels |
| Consumer Electronics Control (CEC) support | Yes |
| Bandwidth | 18 Gbit/s |
| Design | |
| Product colour | Black |
| LED indicators | Yes |
| Ports & interfaces | |
| Video port type | HDMI |
| Number of video inputs | 1 |
| Number of video outputs | 1 |
| HDCP | Yes |
| HDCP pass-through | Yes |
| USB port | Yes |
| USB connector type | USB Type-C |
| DC-in jack | Yes |
| Power | |
| AC adapter output voltage | 5 V |
| AC adapter output current | 1 A |
| Power consumption (max) | 2.4 W |
| Weight & dimensions | |
| Width | 60 mm |
| Depth | 54 mm |
| Height | 17.6 mm |
| Weight | 600 g |
| Packaging data | |
| Package weight | 700 g |
