Description

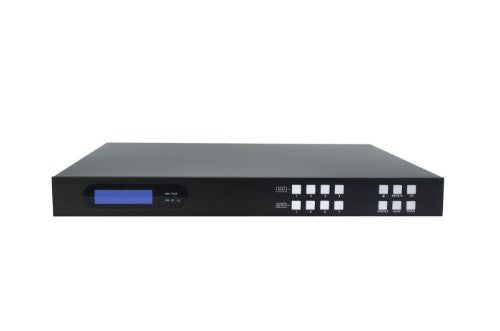

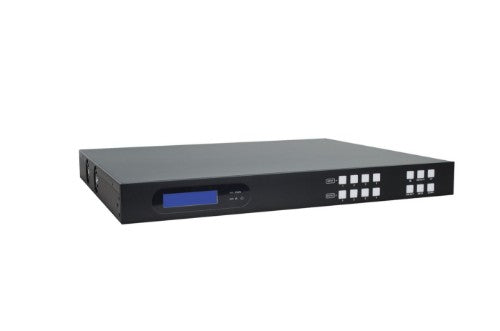

Matrix switcher 4x4 w/4 HDMI + 4 HDBaseT out
Fully compliant with the HDMI 2.0 and HDCP 2.2.
Supports HDMI resolution up to 4K@60Hz 4:4:4, HDR10.
Features four mirrored HDMI outputs for four HDBaseT outputs, and the four HDMI outputs support 4K to 1080p down-scaling.
The four HDBaseT outputs support 24V PoC, allowing the receivers to draw their power from the matrix switcher over the HDBaseT cable.
Transmits 4K signal to the distance up to 131 feet (40 meters) and 1080p signal to the distance up to 230 feet (70 meters) over a single CATx Ethernet cable.
Supports audio matrix. Provides four digital SPDIF audio outputs and four analog L+R audio outputs for HDMI input audio de-embedding and HDBaseT output audio de-embedding. Moreover, the four digital SPDIF audio outputs supports ARC audio output from receivers.
Volume adjustment for analog L+R audio outputs.
Supports comprehensive EDID management and advanced HDCP handling.
Controllable via front panel buttons, RS232 local and pass-through, IR local and pass-through, CEC, and TCP/IP (built-in GUI).
Compatible receiver: VLHDMIMAT4X444-R
Key Features
- 4x4 HDBaseT matrix switcher with audio matrix
- Fully compliant with the HDMI 2.0 and HDCP 2.2
- Supports HDMI resolution up to 4K@60Hz 4:4:4, HDR10
- Features four mirrored HDMI outputs for four HDBaseT outputs, and the four HDMI outputs support 4K to 1080p down-scaling
- The four HDBaseT outputs support 24V PoC, allowing the receivers to draw their power from the matrix switcher over the HDBaseT cable
- Transmits 4K signal to the distance up to 40 metres and 1080p signal to the distance up to 70 metres over a single CAT6a Ethernet cable
- Supports audio matrix. Provides four digital SPDIF audio outputs and four analogue L+R audio outputs for HDMI input audio de-embedding and HDBaseT output audio de-embedding. Moreover, the four digital SPDIF audio outputs supports ARC audio output from receivers
- Volume adjustment for analogue L+R audio outputs
- Supports comprehensive EDID management and advanced HDC handling
- Controllable via front panel buttons, RS232 local and pass-through, IR local and pass-through, CEC, and TCP/IP (built-in GUI)
Description
4x4 HDBaseT matrix switcher with audio matrix.Fully compliant with the HDMI 2.0 and HDCP 2.2.
Supports HDMI resolution up to 4K@60Hz 4:4:4, HDR10.
Features four mirrored HDMI outputs for four HDBaseT outputs, and the four HDMI outputs support 4K to 1080p down-scaling.
The four HDBaseT outputs support 24V PoC, allowing the receivers to draw their power from the matrix switcher over the HDBaseT cable.
Transmits 4K signal to the distance up to 131 feet (40 meters) and 1080p signal to the distance up to 230 feet (70 meters) over a single CATx Ethernet cable.
Supports audio matrix. Provides four digital SPDIF audio outputs and four analog L+R audio outputs for HDMI input audio de-embedding and HDBaseT output audio de-embedding. Moreover, the four digital SPDIF audio outputs supports ARC audio output from receivers.
Volume adjustment for analog L+R audio outputs.
Supports comprehensive EDID management and advanced HDCP handling.
Controllable via front panel buttons, RS232 local and pass-through, IR local and pass-through, CEC, and TCP/IP (built-in GUI).
Compatible receiver: VLHDMIMAT4X444-R
Specifications
| Features | |
|---|---|
| Product type | AV matrix switcher |
| HDCP | Yes |
| HDCP version | 2.2 |
| 3D | Yes |
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
| Ethernet interface type | Fast Ethernet, Gigabit Ethernet |
| Extended display identification data (EDID) | Yes |
| EDID management | Yes |
| Bandwidth | 18 Gbit/s |
| High Dynamic Range (HDR) supported | Yes |
| Maximum resolution | 4096 x 2160 pixels |
| Audio channels | 7.1 |
| Audio formats supported | LPCM |
| Supported chroma subsampling | 4:4:4, 4:2:0 |
| Design | |
| Housing material | Metal |
| Rack mounting | Yes |
| Housing colour | Black |
| Control type | Buttons |
| On/off switch | Yes |
| LED indicators | Yes |
| Display | |
| Built-in display | Yes |

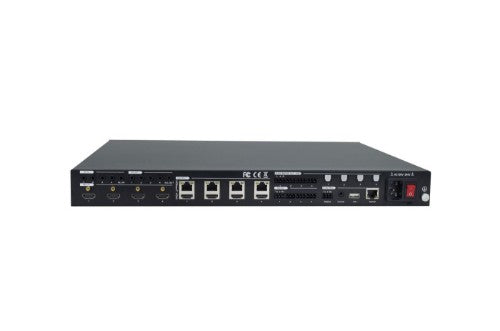

| Ports & interfaces | |
| RJ-45 input ports | 1 |
| RJ-45 output ports | 4 |
| Digital audio optical out | 4 |
| USB ports quantity | 1 |
| Ethernet LAN (RJ-45) ports | 5 |
| RS-232 ports | 5 |
| Analog audio output terminal ports | 4 |
| HDMI input ports quantity | 4 |
| HDMI output ports quantity | 4 |
| USB connector type | USB Type-A |
| Remote (IR) output | 5 |
| Remote (IR) input | 5 |
| Power | |
| Power consumption (max) | 65 W |
| AC input voltage | 100 - 240 V |
| AC input frequency | 50/60 Hz |
| Operational conditions | |
| Operating temperature (T-T) | -5 - 55 °C |
| Storage temperature (T-T) | -25 - 70 °C |
| Operating relative humidity (H-H) | 10 - 90% |
| Weight & dimensions | |
| Width | 436.4 mm |
| Depth | 356.6 mm |
| Height | 44 mm |
| Weight | 3.4 kg |
| Package weight | 3.5 kg |
