Description
HDMI 2.0 Matrix Switcher 8x8
Key features include 4K-to-1080p downscaling on all outputs, allowing seamless integration with both 4K and 1080p displays. The splitter offers digital Toslink and analog L+R audio de-embedding for flexible audio extraction. Built-in signal equalization enhances transmission stability, while comprehensive EDID management and CEC support ensure optimal device communication.
Typical Applications:
Conference Rooms:
Perfect for large meeting spaces where multiple presenters need to share content from various devices on multiple displays.
Control Centers:
Ideal for monitoring multiple inputs and routing them to different outputs efficiently in security, broadcasting, or command centers.
Educational Facilities:
Great for lecture halls and classrooms that require flexible content distribution to multiple screens or projectors.
Retail and Digital Signage:
Useful for large retail stores or shopping malls to display synchronized or independent promotional content on multiple screens.
Home Theaters:
High-end home theater setups that demand seamless switching between various HDMI sources like gaming consoles, Blu-ray players, and streaming devices across multiple displays.
Event Venues:
Suitable for exhibition halls or event spaces where content needs to be distributed and displayed across various areas.
Corporate Environments:
Allows seamless collaboration and display of information across various teams and departments on dedicated displays.
Key Features
- HDMI 2.0 Matrix HDCP 2.3 Compliant
- Support 18Gbps bandwidth for 4K@60Hz 4:4:4 8bit
- Deep color formats and HDR capability
- HDMI Output support up to 5V 500mA for AOC cable
- Build-in GUI for matrix set-up and control over LAN
Description

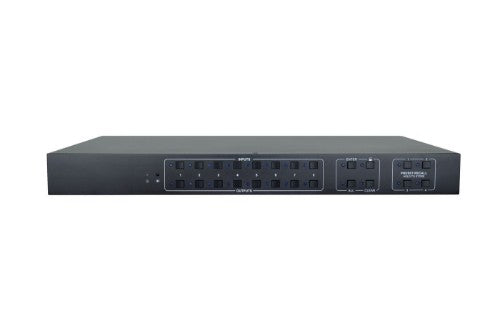

The VLHDMIMAT8X8 is a versatile 8x8 HDMI splitter designed to distribute two HDMI sources to up to eight outputs. It supports video resolutions up to 4K@60Hz with 4:4:4 chroma subsampling, HDR10, and Dolby Vision, ensuring exceptional video quality. With a bandwidth of 18Gbps and HDCP 2.2 compliance, it guarantees compatibility with the latest high-definition content.Key features include 4K-to-1080p downscaling on all outputs, allowing seamless integration with both 4K and 1080p displays. The splitter offers digital Toslink and analog L+R audio de-embedding for flexible audio extraction. Built-in signal equalization enhances transmission stability, while comprehensive EDID management and CEC support ensure optimal device communication.
Typical Applications:
Conference Rooms:
Perfect for large meeting spaces where multiple presenters need to share content from various devices on multiple displays.
Control Centers:
Ideal for monitoring multiple inputs and routing them to different outputs efficiently in security, broadcasting, or command centers.
Educational Facilities:
Great for lecture halls and classrooms that require flexible content distribution to multiple screens or projectors.
Retail and Digital Signage:
Useful for large retail stores or shopping malls to display synchronized or independent promotional content on multiple screens.
Home Theaters:
High-end home theater setups that demand seamless switching between various HDMI sources like gaming consoles, Blu-ray players, and streaming devices across multiple displays.
Event Venues:
Suitable for exhibition halls or event spaces where content needs to be distributed and displayed across various areas.
Corporate Environments:
Allows seamless collaboration and display of information across various teams and departments on dedicated displays.
Specifications
| Features | |
|---|---|
| Product type | AV matrix switcher |
| HDCP | Yes |
| HDCP version | 2.2 |
| Ethernet interface type | Gigabit Ethernet |
| Extended display identification data (EDID) | Yes |
| Bandwidth | 18 Gbit/s |
| High Dynamic Range (HDR) supported | Yes |
| Maximum resolution | 3840 x 2160 pixels |
| Audio channels | 7.1 |
| Audio formats supported | PCM |
| Supported chroma subsampling | 4:4:4 |
| Design | |
| Housing material | Metal |
| Rack mounting | Yes |
| Rack capacity | 1U |
| Housing colour | Black |
| Control type | Buttons |
| LED indicators | Yes |
| Remote control included | Yes |
| Display | |
| Built-in display | No |

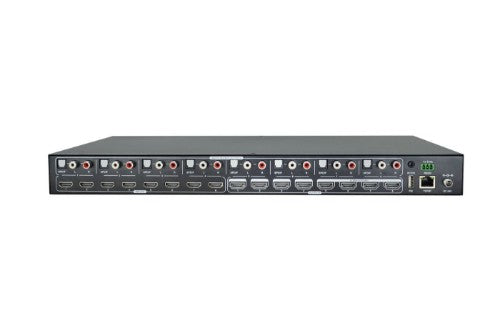

| Ports & interfaces | |
| RJ-45 input ports | 1 |
| Digital audio optical out | 8 |
| USB ports quantity | 1 |
| Ethernet LAN (RJ-45) ports | 1 |
| RS-232 ports | 1 |
| HDMI input ports quantity | 8 |
| HDMI output ports quantity | 8 |
| USB connector type | USB Type-A |
| Audio (L/R) out | 1 |
| Remote (IR) input | 1 |
| DC-in jack | Yes |
| HDMI version | 2.0 |
| Power | |
| Power consumption (max) | 24 W |
| AC input voltage | 100 - 240 V |
| Operational conditions | |
| Operating temperature (T-T) | -5 - 55 °C |
| Weight & dimensions | |
| Width | 350 mm |
| Depth | 540 mm |
| Height | 140 mm |
| Weight | 2 kg |
| Package weight | 3.1 kg |
| Package width | 350 mm |
| Package depth | 540 mm |
| Package height | 140 mm |
| Packaging content | |
| Cables included | IR sensor |
| Mounting brackets included | Yes |
| AC adapter included | Yes |
