Description

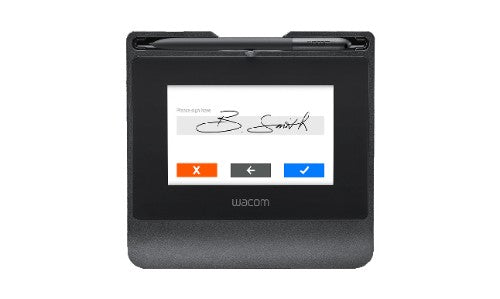

STU-540, 5", Amorphous-TFT-LCD, 800 x 480, WVGA, 160 cd, with pen 142 x 9 mm, black
They also feature a broad range of connectivity options including multiple choices for virtualized desktop environments, as well as sophisticated encryption and user convenience.
As a result, these signature pads have the flexibility to meet the growing demands of any organization implementing handwritten electronic signatures.
Description
As our most advanced and robust premium signature pads, the Wacom STU-540 feature a 5" high-resolution color screen with hardened cover glass for superb durability.They also feature a broad range of connectivity options including multiple choices for virtualized desktop environments, as well as sophisticated encryption and user convenience.
As a result, these signature pads have the flexibility to meet the growing demands of any organization implementing handwritten electronic signatures.
Specifications
| Display | |
|---|---|
| Display diagonal | 12.7 cm (5") |
| Display type | TFT |
| Native resolution | 800 x 480 pixels |
| Display technology | TFT |
| Touchscreen technology | Electro-Magnetic Resonance (EMR) |
| Working area | 108 x 65 mm |
| Design | |
| Product colour | Black |
| Cable lock slot | Yes |
| Pen holder | Yes |
| Pen | |
| Pen included | Yes |
| Wireless pen | Yes |
| Pressure levels | 1024 |
| Accuracy pen | 0.5 mm |
| Pen report rate (points per second) | 200 |
| Battery-free pen | Yes |
| Technical details | |
| Sustainability compliance | Yes |
| Warranty period | 3 year(s) |
| Compliance certificates | CE |
| Packaging content | |
| Cables included | USB |
| USB cable length | 3 m |
| Weight & dimensions | |
| Width | 162.8 mm |
| Depth | 156.8 mm |
| Height | 10 mm |
| Weight | 250 g |
| Pen dimensions LxD | 141.5 x 9 mm |
| Pen weight | 7 g |
