A Well-Rounded Wi-Fi IP Phone for Clear Communications
Description

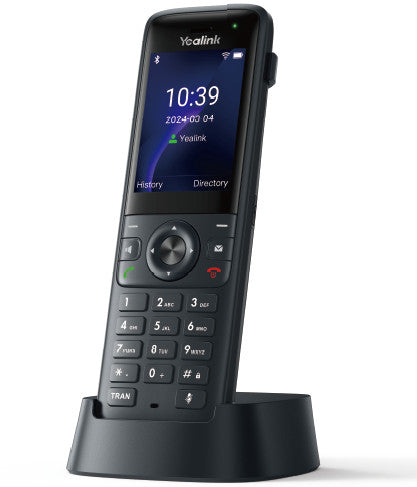

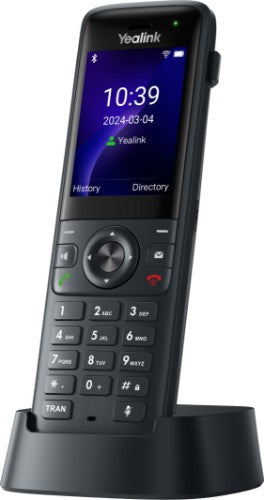

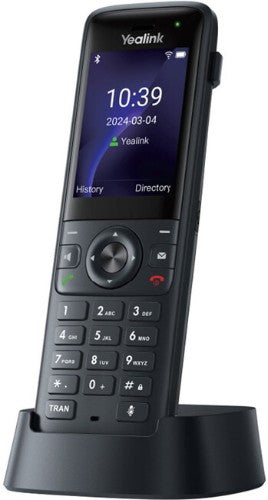

AX83H is an enterprise portable Wi-Fi IP color screen phone that meets wireless communication needs. The AX83H supports registering up to four SIP accounts and features a 2.4-inch color display. It integrates Yealink's Optima HD Audio and Smart Noise cancellation technology to deliver exceptional audio quality and clear voice communication. It is equipped with a built-in Bluetooth 5.0 module and a dual-band 2.4G/5G Wi-Fi 6 module, combined with advanced seamless roaming technology, allowing you to stay ahead in the ever-evolving wireless era. In addition, AX83H is equipped with a 2000mAh battery, with a talk time of 9 hours and a standby time of 200 hours. It is widely used in wireless scenarios such as SMEs, offices, warehouses, supermarkets, and hotels.
Specifications
| Features |
|---|
| Integrated voicemail |
Yes |
| Wall mountable |
Yes |
| Keypad number of keys |
8 |
| Headset connectivity |
3.5 mm |
| Handset |
Yes |
| Product colour |
Black |
| Backlight keypad |
Yes |
| Technical details |
|---|
| Integrated voicemail |
Yes |
| Keypad number of keys |
8 |
| Headset connectivity |
3.5 mm |
| Handset |
Yes |
| Backlight keypad |
Yes |
| Design |
|---|
| Product type |
IP Phone |
| Wall mountable |
Yes |
| Product colour |
Black |
| Backlight keypad |
Yes |
| Phone features |
|---|
| Message-waiting indicator (MWI) |
Yes |
| Call transfer |
Yes |
| Vibrating alert |
Yes |
| Speed dialling |
Yes |
| Phonebook capacity |
1000 entries |
| Intercom |
Yes |
| Full duplex |
Yes |
| Caller ID |
Yes |
| Call waiting |
Yes |
| Call pick up |
Yes |
| Call park |
Yes |
| Call hold |
Yes |
| Call forwarding |
Yes |
| Anonymous call rejection |
Yes |
| Anonymous call |
Yes |
| Call history |
Yes |
| Emergency call |
Yes |
| Management features |
|---|
| Integrated voicemail |
Yes |
| Keypad number of keys |
8 |
| Display |
|---|
| Touchscreen |
No |
| Display resolution |
240 x 320 pixels |
| Display diagonal |
6.1 cm (2.4") |
| Display |
TFT |
| Audio |
|---|
| Voice codecs |
G.711a, G.722, G.723, G.726, G.729, G.729A, G.729B, G.729ab |
| Microphone mute |
Yes |
| Network |
|---|
| Bluetooth version |
5.0 |
| Wi-Fi standards |
802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax) |
| Wi-Fi |
Yes |
| Quality of Service (QoS) support |
Yes |
| Ethernet LAN |
No |
| Bluetooth |
Yes |
| Colour |
|---|
| Product colour |
Black |
| Microphone |
|---|
| Microphone mute |
Yes |
| Ergonomics |
|---|
| Wall mountable |
Yes |
| Sensors |
|---|
| Proximity sensor |
Yes |
| Ports & interfaces |
|---|
| Headset connectivity |
3.5 mm |
| USB Type-C ports quantity |
1 |
| Power |
|---|
| AC adapter input voltage |
100 - 240 V |
| Operational conditions |
|---|
| Storage temperature (T-T) |
-30 - 70 °C |
| Operating temperature (T-T) |
0 - 40 °C |
| Operating relative humidity (H-H) |
10 - 95% |
| Weight & dimensions |
|---|
| Handset dimensions (WxDxH) |
49.5 x 21 x 151 mm |
| Weight |
126 g |
| Packaging content |
|---|
| Charger |
Yes |
| Number of handles included |
1 pc(s) |
| Handset |
Yes |
