CTP25, 10.1' collaboration touch panel, Teams/Zoom
Key Features
- Simple deployment: plug-and-play, One Cable Solution for console deployment and sharing
- Intuitive touch control
- Teams/Zoom Certified
- Security ensured: support latest Android 13 and beyond, MDEP coming
- Standard PD power supply for PC
Description

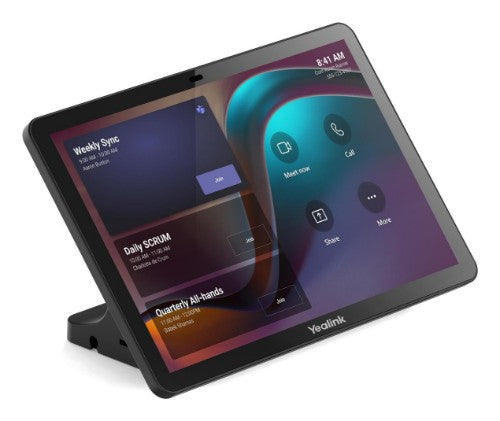

The Yealink CTP25 is an Android-based touch console for controlling Yealink MeetingBar. With just a few touches on the CTP25, you can start or join a meeting and navigate all meeting controls, including adjusting the camera, changing participant layouts, recording, and more.
Specifications
| Display |
|---|
| Display diagonal |
25.6 cm (10.1") |
| Display technology |
IPS |
| Display resolution |
1280 x 800 pixels |
| Viewing angle |
178° |
| Touchscreen |
Yes |
| Touchscreen technology |
Capacitive |
| Display brightness |
350 cd/m² |
| Contrast ratio (typical) |
1000:1 |
| Design |
|---|
| Housing colour |
Black |
| LED indicators |
Yes |
| Country of origin |
China |
| Operating temperature (T-T) |
-10 - 45 °C |
| Storage temperature (T-T) |
-30 - 70 °C |
| USB port |
Yes |
| Performance |
|---|
| Operating system installed |
Android 13.0 |
| Camera |
|---|
| Built-in camera |
No |
| Network |
|---|
| Wi-Fi standards |
802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax) |
| Bluetooth |
Yes |
| Bluetooth version |
5.0 |
| Wi-Fi |
Yes |
| Ethernet LAN |
Yes |
| Ports & interfaces |
|---|
| USB port |
Yes |
| RJ-45 ports quantity |
1 |
| USB Type-C ports quantity |
2 |
| USB 2.0 Type-A ports quantity |
1 |
| Power |
|---|
| Power source type |
PoE, USB |
| Power consumption (max) |
15.2 W |
| Power consumption (average) |
7.3 W |
| Weight & dimensions |
|---|
| Width |
242.9 mm |
| Depth |
27.5 mm |
| Height |
161.9 mm |
| Weight |
683 g |
| Packaging data |
|---|
| Package width |
286 mm |
| Package depth |
198 mm |
| Package height |
140 mm |
| Package weight |
1.85 kg |
| Operational conditions |
|---|
| Operating temperature (T-T) |
-10 - 45 °C |
| Storage temperature (T-T) |
-30 - 70 °C |
