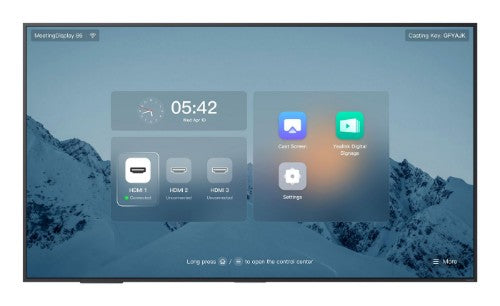

MeetingDisplay 86'' -display for unified MTR system, unified installation, one touch console
Key Features
- Unified installation, the customised structure makes installation easy.
- Unified coordination, supports digital signage, sleep, and wake-up functions.
- Unified management, manage MeetingDisplay and MTR device on one platform (YMCS or YDMP).
- Unified configuration, one-touch console is enough.
Description
The Yealink MeetingDisplay is designed explicitly for the Yealink MTR system and can be paired with the MTR bar, UVC Camera, and MCore to provide the complete Yealink Meeting Solution. The MeetingDisplay is available in 65", 75", and 86" sizes, meeting the needs of small, medium, and large meeting rooms. The MeetingDisplay and MTR devices can be deployed, managed, and integrated in a unified manner. You can mount these MTR system devices on the MeetingDisplay without drilling or damaging the walls. The installation process will also be simple and convenient based on our uniquely designed structure. Moreover, the meeting solution, led by the MTR system, can be centrally managed via YMCS/YDMP. Finally, this solution allows MeetingDisplay and MTR devices to work in sync, including sleep/wake-up, power on/off, digital signage mode.
Specifications
| Display |
|---|
| Display diagonal |
165.1 cm (65") |
| Display technology |
IPS |
| Display resolution |
3840 x 2160 pixels |
| Display brightness |
500 cd/m² |
| Contrast ratio (typical) |
1200:1 |
| Audio |
|---|
| Built-in speaker(s) |
Yes |
| Design |
|---|

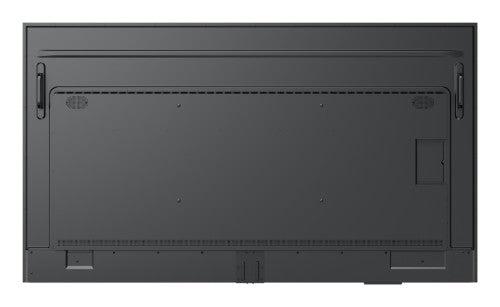

| VESA mounting |
Yes |
| Panel mounting interface |
600 x 400 mm |
| Ports & interfaces |
|---|
| HDMI input ports quantity |
3 |
| USB port |
Yes |
| Ethernet LAN |
Yes |
| Ethernet LAN data rates |
10,100,1000 Mbit/s |
| Wi-Fi |
Yes |
| Computer system |
|---|
| Operating system installed |
Android 13.0 |
| Operational conditions |
|---|
| Operating temperature (T-T) |
0 - 40 °C |
| Storage temperature (T-T) |
-20 - 60 °C |
| Operating relative humidity (H-H) |
10 - 95% |
| Weight & dimensions |
|---|
| Display weight |
45.2 kg |
| Packaging data |
|---|
| Package width |
2065 mm |
| Package depth |
215 mm |
| Package height |
1155 mm |
| Package weight |
58.7 kg |
| Logistics data |
|---|
| Country of origin |
China |
| Network |
|---|
| Ethernet LAN |
Yes |
| Ethernet LAN data rates |
10,100,1000 Mbit/s |
| Wi-Fi |
Yes |
