Microsoft Teams Rooms System for Standard Large Conference Rooms
Key Features
- Multi-cam intelliframe
- Big and flexible conference control experience
- Wireless content sharing
- Flexible audio, Flexible connectivity
Description

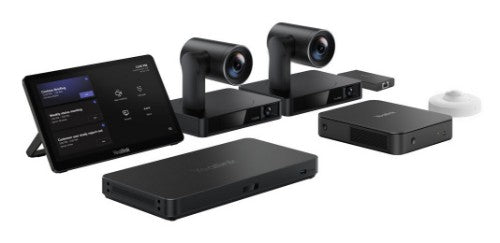

Yealink MVC S90 is specially designed for extra-large conference rooms. This set includes new generation high-performance MINI-PC MCore Pro, touch panel MTouch Plus, intelligent 4K PTZ camera UVC86, and AVHub specially designed for audio and video processing. AVHub can adjust the screen layout and realize Yealink’s exclusive multi-camera solution, which can support up to 9 cameras connected at the same time, and realize multi-speaker tracking with voice incentive mechanism Functions, adapt to the audio and video conferencing needs of various large and super large meeting rooms, classrooms, and training rooms.
Specifications
| Performance |
|---|
| Product type |
Group video conferencing system |
| Product colour |
Black, Grey |
| PTZ control |
Yes |
| Bluetooth |
Yes |
| Bluetooth version |
5.2 |
| Number of cameras |
2 |
| Auto framing |
Yes |
| Auto-tracking |
Yes |
| Tracking modes |
Presenter mode |
| Meeting features |
Content sharing |
| Technical details |
|---|
| Product type |
Group video conferencing system |
| Product colour |
Black, Grey |
| PTZ control |
Yes |
| Bluetooth |
Yes |
| Bluetooth version |
5.2 |
| Number of cameras |
2 |
| Warranty period |
2 year(s) |
| Video |
|---|
| HD type |
4K Ultra HD |
| Megapixel (approx.) |
8 MP |
| Optical zoom |
12x |
| Digital zoom |
1.7x |
| Aspect ratio |
16:9 |
| Supported video modes |
1080p, 2160p |
| Supported graphics resolutions |
1920 x 1080 (HD 1080), 3860 x 2160 |
| Maximum frame rate |
30 fps |
| Maximum video resolution |
3840 x 2160 pixels |
| Audio |
|---|
| Built-in speaker(s) |
Yes |
| Memory |
|---|
| Internal memory |
8196 MB |
| Internal memory type |
DDR4 |
| Storage media type |
SSD |
| Total storage capacity |
128 GB |
| Interface module |
|---|
| Interface module USB 2.0 ports quantity |
4 |
| Interface module RJ-45 ports quantity |
2 |
| Interface module DC input port |
Yes |
| Interface module HDMI output ports quantity |
3 |
| Interface module audio RCA input ports quantity |
1 |
| Network |
|---|
| Ethernet LAN |
Yes |
| Ethernet LAN data rates |
10,100,1000 Mbit/s |
| Wi-Fi |
Yes |
| Wi-Fi standards |
802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax) |
| Networking standards |
IEEE 802.11a, IEEE 802.11ac, IEEE 802.11ax, IEEE 802.11b, IEEE 802.11g |
| Camera |
|---|
| Field of view (FOV) angle |
120° |
| Horizontal field of view |
110° |
| Megapixel (approx.) |
8 MP |
| Optical zoom |
12x |
| Digital zoom |
1.7x |
| Vertical field of view |
78° |
| Diagonal field of view |
120° |
| Camera type |
Dual camera |
| Second camera resolution |
8 MP |
| Zoom capability |
Yes |
| Display |
|---|
| Display |
IPS |
| Display diagonal |
29.5 cm (11.6") |
| Display resolution |
1920 x 1080 pixels |
| Touchscreen |
Yes |
| Features |
|---|
| Cable lock slot |
Yes |
| Trusted Platform Module (TPM) version |
2.0 |
| Trusted Platform Module (TPM) |
Yes |
| Computer system |
|---|
| Computer system type |
Mini PC |
| Processor family |
Intel® Core™ i5 |
| Processor generation |
11th gen Intel® Core™ i5 |
| Computer case |
|---|
| Computer system type |
Mini PC |
| Processor family |
Intel® Core™ i5 |
| Power |
|---|
| Power source type |
AC |
| Weight & dimensions |
|---|
| Weight |
12.1 kg |
| Package width |
935 mm |
| Package depth |
413 mm |
| Package height |
312 mm |
| Package weight |
13.8 kg |
| Packaging content |
|---|
| External interface module included |
Yes |
| Camera control unit included |
Yes |
| Camera included |
Yes |
| Packaging content |
MCore Pro, Gen-3 Mini-PC;

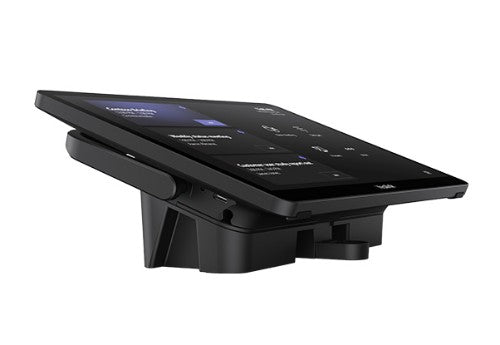

MTouch Plus, Gen-3 touch panel;
AVHub, audio and video processor;
2 x UVC86 USB PTZ camera;
2 x WPP30 wireless presentation pod;
RoomSensor, meeting room sensor; |
| Cables included |
HDMI, LAN (RJ-45), USB Type-A to USB Type-B |
| AC adapter included |
Yes |
| Quick start guide |
Yes |
