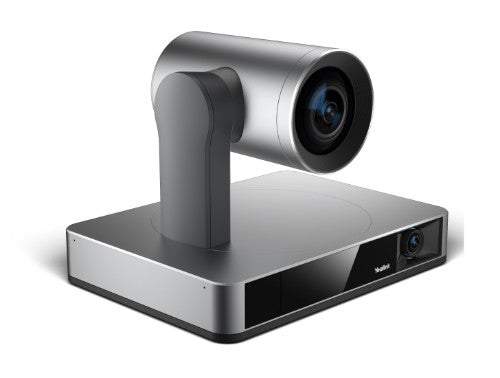

UVC86 4K dual-eye intelligent camera
Key Features
- Dual-eye 4K camera
- 12x Optical Zoom, 90° Wide FoV
- Supports multiple tracking functions: Auto-Framing, Speaker Tracking, and Presenter Tracking
- Integrated with Audio processor
Description
Yealink UVC86 is a 4K dual-eye intellegient camera for medium and large rooms with for display of every person and every detail. With auto-framing, speaker tracking and presenter tracking features, the UVC86 delivers face to face, intelligent and smooth video experience by precisely reproducing every moment and detail, always showing the best picture of your room.
Specifications
| Camera |
|---|
| Megapixel (approx.) |
8 MP |
| Optical zoom |
12x |
| Digital zoom |
1.7x |
| Horizontal field of view |
110° |
| PTZ control |
Yes |
| Number of camera presets |
9 |
| Vertical field of view |
78° |
| Camera type |
Dual camera |
| Second camera resolution |
8 MP |
| Zoom capability |
Yes |
| Video |
|---|
| Maximum video resolution |
3840 x 2160 pixels |
| Maximum frame rate |
30 fps |
| HD type |
4K Ultra HD |
| Design |
|---|
| Product colour |
Black |
| Mounting type |
Stand |
| Tilt angle range |
-90 - 40° |
| Pan range |
-100 - 100° |
| Country of origin |
China |
| Ports & interfaces |
|---|
| HDMI ports quantity |
1 |
| USB 2.0 ports quantity |
1 |
| Ethernet LAN (RJ-45) ports |
1 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-B ports quantity |
1 |
| Microphone in |
Yes |
| Power |
|---|
| DC input voltage |
48 V |
| Input current |
0.7 A |
| Power source type |
AC |
| AC input frequency |
100 - 240 Hz |
| Operational conditions |
|---|
| Operating temperature (T-T) |
0 - 40 °C |
| Operating relative humidity (H-H) |
10 - 95% |
| Technical details |
|---|
| Harmonized System (HS) code |
85258900 |
| Packaging content |
|---|
| Remote control included |
Yes |
| Cables included |
USB |
| AC adapter included |
Yes |
| USB cable length |
7 m |
| Power supply included |
Yes |
| Packaging content |
VC86 Camera
VCR20 Remote Control
Power Adapter
Wall Bracket and Accessories
7m USB Cable (2.5m for MVC bundle) |
| Performance |
|---|
| Cable lock slot |
Yes |
| Tracking modes |
Presenter mode |
| Auto-tracking |
Yes |
| Auto framing |
Yes |
| Logistics data |
|---|
| Harmonized System (HS) code |
85258900 |
| Weight & dimensions |
|---|
| Width |
210 mm |
| Depth |
156 mm |
| Height |
156 mm |
| Weight |
3.27 kg |
| Packaging data |
|---|
| Package width |
210 mm |
| Package depth |
183 mm |
| Package height |
156 mm |
| Package weight |
4.54 kg |
