Description

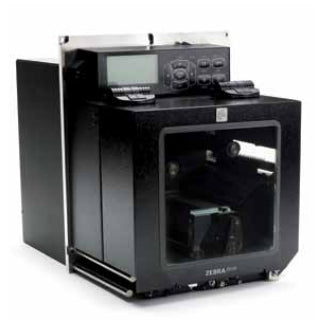

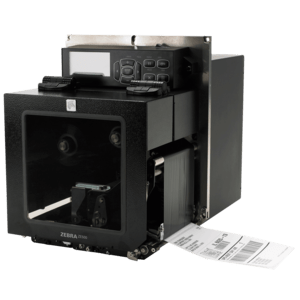

ZE500-4, LH, ZPL, 300dpi, 12dots/mm, 305mm/sec, 104mm (4.1"), 16MB/64MB, USB 2.0, RS-232, Parallel, ZebraNet 10/100, EU+UK PC, Black
The ZE500 series takes an innovative approach to OEM print engines. Leveraging customer research, the design focuses on ease of use, integration and servicing. Built with the customer in mind, the ZE500 is designed to keep mission-critical print-and-apply applications operating with no interruptions.
Used For:
- Cross Docking;
- Receiving/Shipping;
- Compliance Labeling;
- Order Labeling.
The elegant design of the ZE500 simplifies maintenance and dramatically reduces downtime. All three rollers can be exchanged in minutes, with no need to access the printer’s electronics. The wide open printhead makes cleaning and replacement simple, and the quickchange modular drive system reduces printer repair time.
Routine operations such as ribbon changing are simple and straightforward (and identical for both print widths). The new graphic display can be deported and rotated, enabling flexible positioning for improved ease of use and integration.
The user experience is much improved: the design enables easy integration with print-and-apply machinery plus has better resistance to dust and water. Expanded connectivity ports and enhanced software control of the applicator port provides further integration flexibility.
Description
ZE500 Print EnginesThe ZE500 series takes an innovative approach to OEM print engines. Leveraging customer research, the design focuses on ease of use, integration and servicing. Built with the customer in mind, the ZE500 is designed to keep mission-critical print-and-apply applications operating with no interruptions.
Used For:
- Cross Docking;
- Receiving/Shipping;
- Compliance Labeling;
- Order Labeling.
The elegant design of the ZE500 simplifies maintenance and dramatically reduces downtime. All three rollers can be exchanged in minutes, with no need to access the printer’s electronics. The wide open printhead makes cleaning and replacement simple, and the quickchange modular drive system reduces printer repair time.
Routine operations such as ribbon changing are simple and straightforward (and identical for both print widths). The new graphic display can be deported and rotated, enabling flexible positioning for improved ease of use and integration.
The user experience is much improved: the design enables easy integration with print-and-apply machinery plus has better resistance to dust and water. Expanded connectivity ports and enhanced software control of the applicator port provides further integration flexibility.
Specifications
| Print quality | |
|---|---|
| Maximum resolution | 300 x 300 DPI |
| Maximum printing width | 10.4 cm |
| Printing | |
| Print speed | 305 mm/sec |
| Maximum resolution | 300 x 300 DPI |
| Maximum printing width | 10.4 cm |
| Display | |
| Display | LCD |
| Network | |
| Wi-Fi | No |
| Ethernet LAN | Yes |
| Memory | |
| Internal memory | 16 MB |
| Flash memory | 64 MB |
| Paper handling | |
| Ribbon width | 10.7 cm |
| Ribbon length | 600 m |
| Media thickness (imperial) | 0.010" |
| Media thickness | 0.254 mm |
| Maximum roll diameter | 10.2 cm |
| Maximum media length (imperial) | 150" |
| Maximum media length | 3.81 m |
| Maximum label width | 11.4 cm |
| Core diameter | 2.54 cm |
| Ports & interfaces | |
| USB 2.0 ports quantity | 1 |
| RS-232 ports | 1 |
| RS-232 interface | Yes |
| Parallel ports quantity | 1 |
| Connectivity technology | Wired |
| Wi-Fi | No |
| Ethernet LAN | Yes |
| USB port | Yes |
| Performance | |
| Built-in barcodes | 1D, 2D, CODABAR (NW-7), Code 128 (A/B/C), Code 39, Code 49, Code 93, EAN13, EAN8, Industrial 2/5, Interleaved 2/5, MaxiCode, PDF417, POSTNET, QR Code, TLC39, UPC-A, UPC-E |
| Ribbon width | 10.7 cm |
| Ribbon length | 600 m |
| Processor frequency | 133 MHz |
| Internal memory | 16 MB |
| Flash memory | 64 MB |
| Built-in processor | Risc |
| Certification | IEC, EN, NRTL, CE, FCC, CCC, ICES, VCCI, NOM, KCC, BSMI, S-Mark, C-Tick, Gost-R |
| Page description languages | XML, ZPL, ZPL II |
| Design | |
| Housing material | Metal |
| Display | LCD |
| Product colour | Black |
| Certification | IEC, EN, NRTL, CE, FCC, CCC, ICES, VCCI, NOM, KCC, BSMI, S-Mark, C-Tick, Gost-R |
| Power | |
| Power requirements | 90 - 264V AC, 47/63Hz |
| Technical details | |
| Product colour | Black |
| Built-in barcodes | 1D, 2D, CODABAR (NW-7), Code 128 (A/B/C), Code 39, Code 49, Code 93, EAN13, EAN8, Industrial 2/5, Interleaved 2/5, MaxiCode, PDF417, POSTNET, QR Code, TLC39, UPC-A, UPC-E |
| Ribbon width | 10.7 cm |
| Ribbon length | 600 m |
| Networking features | Fast Ethernet |
| Maximum label width | 11.4 cm |
| Sustainability certificates | ENERGY STAR |
| Harmonized System (HS) code | 84433210 |
| Processor | |
| Processor frequency | 133 MHz |
| Built-in processor | Risc |
| Certificates | |
| Certification | IEC, EN, NRTL, CE, FCC, CCC, ICES, VCCI, NOM, KCC, BSMI, S-Mark, C-Tick, Gost-R |
| Software | |
| Bundled software | ZebraDesigner Pro ZebraNet Bridge Enterprise ZBI 2.0 ZBI-Developer |
| System requirements | |
| Compatible operating systems | Windows 7 Windows XP Windows Vista Windows Server 2008 Windows Server 2003 |
| Operational conditions | |
| Storage temperature (T-T) | -40 - 160 °F |
| Storage temperature (T-T) | -40 - 71 °C |
| Storage relative humidity (H-H) | 5 - 95% |
| Operating temperature (T-T) | 32 - 104 °F |
| Operating temperature (T-T) | 0 - 40 °C |
| Operating relative humidity (H-H) | 20 - 85% |
| Weight & dimensions | |
| Width | 245 mm |
| Depth | 379 mm |
| Height | 300 mm |
| Weight | 15.4 kg |
| Packaging content | |
| Bundled software | ZebraDesigner Pro ZebraNet Bridge Enterprise ZBI 2.0 ZBI-Developer |
| Logistics data | |
| Harmonized System (HS) code | 84433210 |
| Other features | |
| Networking features | Fast Ethernet |
